Specifications
Brand Name :
JR
Model Number :
GLF-5(12MM AND 16MM)
Certification :
ISO9001
Place of Origin :
china
MOQ :
5pcs
Price :
10-20usd/pcs
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100000PC/Month
Delivery Time :
20-30DAYS
Packaging Details :
white box and carton
Standard or nonstandard :
standard
Material :
sic/sic/v or tc/car/v
Application :
grundfos pump seal
Size :
12mm and 16mm
Product name :
grundfos pump seals
Temperature :
-30℃ to 200℃, dependent on the elastomer
Pressure :
≤1.2 MPa
Metal parts :
ss304/ss316
Face :
sic tc carbon
Keywords :
pump seal
Description

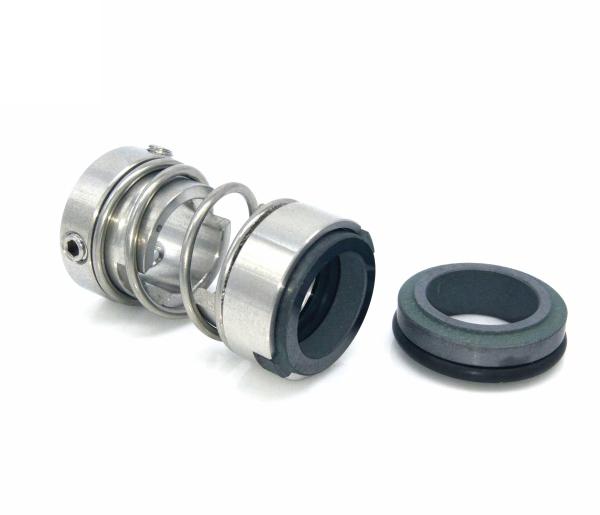

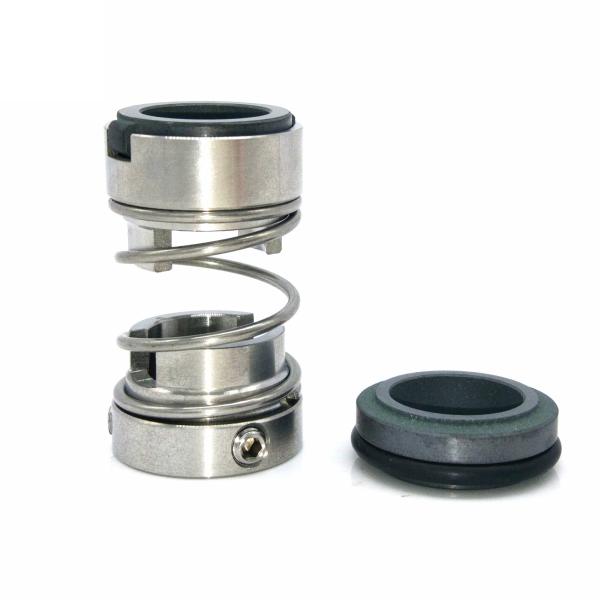

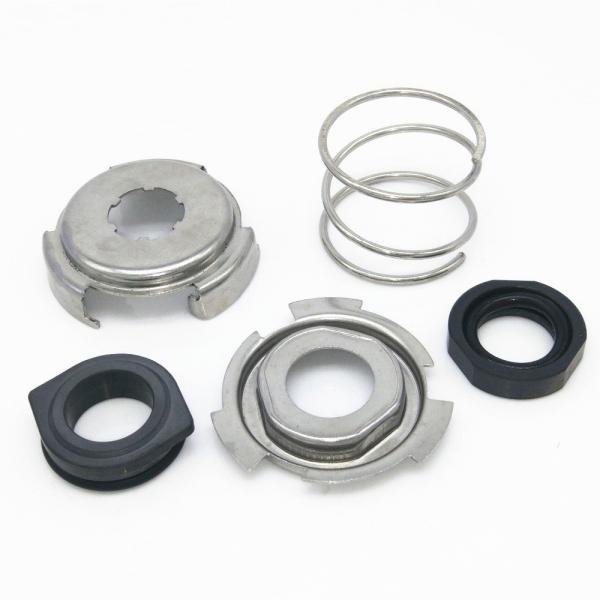

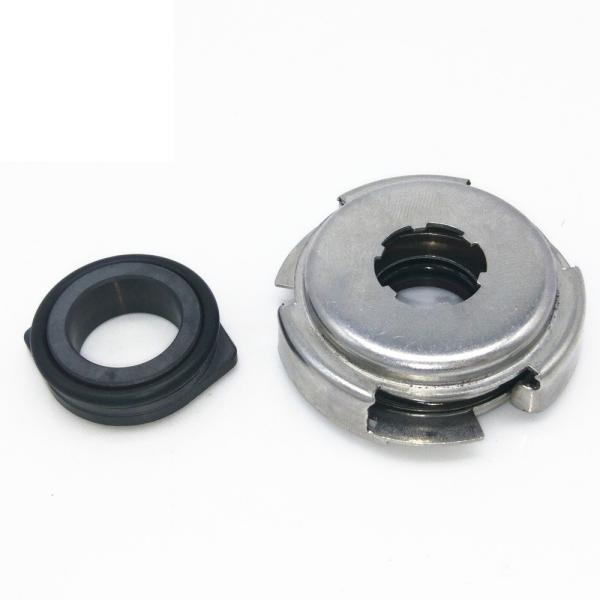

Glf-5 Single Spring Seal 12mm And 16mm Tc/Car/V Suitable For Grundfos Pump
GLF-5 Pump Mechanical Seal For Grundfos Pump With Single Spring O-Ring

Description:

Operational Conditions:

  1. GLF5 is an original Grundfos seal with single spring o-ring
    Mounted semi-cartridge seals with push-fit head
    Suitable for Grundfos Pumps
  2. Temperature: -20ºC to +180ºC
  3. Pressure: ≤2.5MPa
  4. Speed: ≤15m/s
  5. Mechanical seals : Two Types design

    The replacement of the OEM seals

    the best material we use :HQQV/HQQE

Materials:

  • Stationary Ring:TC, Silicon Carbide
  • Rotary Ring:Carbon ,Silicon Carbide,TC
  • Secondary Seal:NBR,EPDM,FKM
  • Bellows:Steel
  • Spring and Metal Parts:Steel

Performance Capabilities:

Temperature -30℃ to 200℃, dependent on the elastomer
Pressure
Up to 10 bar
Speed Up to 15 m/s
End play/axial float allowance ±0.1mm
Size 12MM 16MM
Brand JR
Face Carbon, SiC, TC
Seat Ceramic, SiC, TC
Elastomer NBR, EPDM, FKM etc.
Spring SS304, SS316
Metal parts SS304, SS316
Idividual Packing
Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton.
  • 3.Mechanical Seal 12mm 16mm mechanical shaft seals for pumps

Single Spring Seal 12mm And 16mm Tc/Car/V Suitable For Grundfos PumpSingle Spring Seal 12mm And 16mm Tc/Car/V Suitable For Grundfos PumpSingle Spring Seal 12mm And 16mm Tc/Car/V Suitable For Grundfos Pump

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal,

Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal,

Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal,

Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal,

Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal,

Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps,

Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha,

Vogelsang Pumps etc.

At the meantime, we could manufacture seals according to your sample or drawing, and design as your request

Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.

Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.

Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!

Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.

Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.

Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.

Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.

Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
