Charge Current 12VDC 10A Algorithm Rv Smart Battery Charger
Charge Current 12VDC 10A Algorithm Rv Smart Battery Charger
Charge Current 12VDC 10A Algorithm Rv Smart Battery Charger
Charge Current 12VDC 10A Algorithm Rv Smart Battery Charger
Specifications
Brand Name :
TBB
Model Number :
BS1210, BS1240
Certification :
LVD-EN60335-1,EN60335-2-29; EMCEN55014,EN61000
Place of Origin :
China
MOQ :
1piece
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
5-30 days based on order qty
Packaging Details :
Carton box
Max output :
25A10A
Efficiency :
88%
Working Temp :
~20℃-+60℃
Battery Type :
AGM，GEL，Li-ion，WET adaptive
AC input :
85-265VAC
Frequncy :
50HZ/60HZ
Description

Active Pfc Battery Charger with Charge Current 12VDC 10A/25A/40A for Marine and Boat (High Efficiency Battery Charger)

Smart Charging Algothrim Battery Charger with Charge Current 12VDC 10A/25A/40A for RV

Combined with up to date technology and our knowledge with batteries, Trident smart battery charger is specified designed for mobile application. It is an ideal solution for your battery charging on board.


Use BS battery charger only in well ventilated rooms. Do not expose the charger to rain, snow,
spray, or bilge water. To reduce risk of fire hazard, do not cover or obstruct the ventilation
openings. Do not install the charger in a zero‐ clearance compartment.

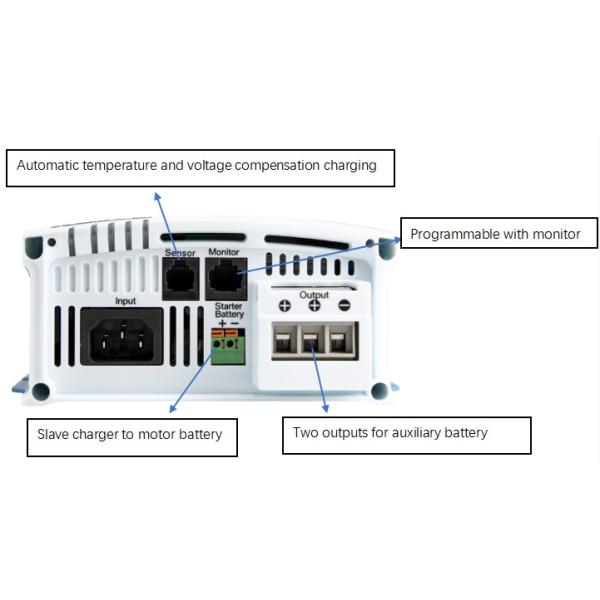

Features :

  • Active PFC featuring smaller and higher efficiency, max 92%.
  • With multiple isolated outputs, including slave charger for starter battery.
  • Automatically work as power supply or charger.
  • Automatic temperature compensation charging.
  • Automatic voltage compensation charging.
  • Programmable with monitor.
  • Night mode through remote control.

Specs

Model BS1210 BS1225 BS1240 BS1225-3 BS1240-3
Electrical
Output voltage (PS mode) (Vdc) 12.8V±0.256Vdc
Max Output current (A) 10 25 40 25 40
Nominal input voltage (Vac) 85-265VAC,50/60Hz 165-265VAC,50/60Hz
Charge algorithms 5 steps. soft start, bulk, absorption, float, recycle
Temperature compensation Automatically
Absorption voltage(Vdc) AGM:13.5V,GEL:13.5V,LFP:13.5V,WET:13.7V
Floating voltage (Vdc) AGM:14.4V,GEL:14.1V,LFP:14.4V,WET:14.7V
Charging current (A) 10 25 40 25 40
Min battery voltage (Vdc) 1 2
Efficiency 88%
Input connector Cable of 1.5 meter with CEE 7/7 plug IEC socket
Output connector Fixed cable,2.5mm², 1 meter M4 Screw (16mm²)
Output 1 1+1
Ripple noise ≤200mVp-p
Regulation Accuracy ≤2%
Cooling Self cooling Fan cooling
Working Temperature -20℃ -- +60℃
Protection
Short circuit Shutdown output, automatically restart when short circuit is removed
Reverse polarity No charging
Charger over temp Shut down the charger
Battery over temp Shut down the charger
Standards
LVD EN60335-1,EN60335-2-29
EMC EN55014-1,EN55014-2,EN61000-3-2,EN61000-3-3
Structure
Out case Aluminum+plastic
Dimension 175*114*53mm 249*165*74mm 249*165*74mm
Weight 1.0KG 1.6KG 1.6KG
IP class IP20 IP23
Insulation Resistance ≥50MΩ
Dielectric strength I/P-O/P:3.0KV,I/P-PG:1.5KV,O/P-PG:0.5KV

Charge Current 12VDC 10A Algorithm Rv Smart Battery Charger

Charge Current 12VDC 10A Algorithm Rv Smart Battery Charger

Charge Current 12VDC 10A Algorithm Rv Smart Battery Charger
