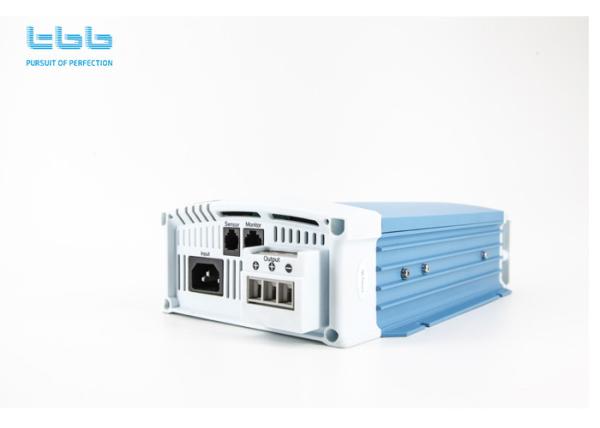

Motor Home Lithium Battery Charger Supplier Small Size With IEC Socket
Motor Home Lithium Battery Charger Supplier Small Size With IEC Socket
Specifications
Brand Name :
TBB
Model Number :
BS1210, BS1240
Certification :
LVD-EN60335-1,EN60335-2-29; EMCEN55014,EN61000
Place of Origin :
China
MOQ :
1piece
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
5-30 days based on order qty
Packaging Details :
Carton box
Max output :
25A10A
Efficiency :
88%
Slave charger :
Max 3A
Working Temp :
~20℃-+60℃
IP class :
IP22
Battery Type :
AGM，GEL，Li-ion，WET adaptive
AC input :
85-265VAC
Frequncy :
50HZ/60HZ
Description

AGM,battery BS1210 converter charger automatice voltage compensation charging

TBB TRIDENT series Smart battery charger on board charging for mobile marine application

Motor home Lithium battery charger supplier Small size with IEC socket

TBB premium II multi stage adaptive charging algorithm for lead acid battery, fitted with multistage charging algorithm( bulk-absorption-float-recycle), BS battery charger is designed to charge battery quickly and fully. Mircroprocessor controlled charging algorithm with variable absorption charging timer auarantee the optional charging for batteries of differernt discharged state.Float charging and recycle charging program guarantee your battery could get proper maintenance in case of long time connected

The battery temperature and voltage sensor supplied with BS charger measures the
temperature of battery
and automatically makes adjustments at real time to properly charge your batteries at
compensation rate of – 4mv / / cell.

Features :

  • Active PFC featuring smaller and higher efficiency, max 92%.
  • With multiple isolated outputs, including slave charger for starter battery.
  • Automatically work as power supply or charger.
  • Automatic temperature compensation charging.
  • Automatic voltage compensation charging.
  • Programmable with monitor.
  • Night mode through remote control.

Specs

Model BS1210 BS1225 BS1240 BS1225-3 BS1240-3
Electrical
Output voltage (PS mode) (Vdc) 12.8V±0.256Vdc
Max Output current (A) 10 25 40 25 40
Nominal input voltage (Vac) 85-265VAC,50/60Hz 165-265VAC,50/60Hz
Charge algorithms 5 steps. soft start, bulk, absorption, float, recycle
Temperature compensation Automatically
Absorption voltage(Vdc) AGM:13.5V,GEL:13.5V,LFP:13.5V,WET:13.7V
Floating voltage (Vdc) AGM:14.4V,GEL:14.1V,LFP:14.4V,WET:14.7V
Charging current (A) 10 25 40 25 40
Min battery voltage (Vdc) 1 2
Efficiency 88%
Input connector Cable of 1.5 meter with CEE 7/7 plug IEC socket
Output connector Fixed cable,2.5mm², 1 meter M4 Screw (16mm²)
Output 1 1+1
Ripple noise ≤200mVp-p
Regulation Accuracy ≤2%
Cooling Self cooling Fan cooling
Working Temperature -20℃ -- +60℃
Protection
Short circuit Shutdown output, automatically restart when short circuit is removed
Reverse polarity No charging
Charger over temp Shut down the charger
Battery over temp Shut down the charger
Standards
LVD EN60335-1,EN60335-2-29
EMC EN55014-1,EN55014-2,EN61000-3-2,EN61000-3-3
Structure
Out case Aluminum+plastic
Dimension 175*114*53mm 249*165*74mm 249*165*74mm
Weight 1.0KG 1.6KG 1.6KG
IP class IP20 IP23
Insulation Resistance ≥50MΩ
Dielectric strength I/P-O/P:3.0KV,I/P-PG:1.5KV,O/P-PG:0.5KV

Installation

BS Charger can be installed on a horizontal surface or vertically on a wall. Please see following instruction;

Motor Home Lithium Battery Charger Supplier Small Size With IEC Socket
