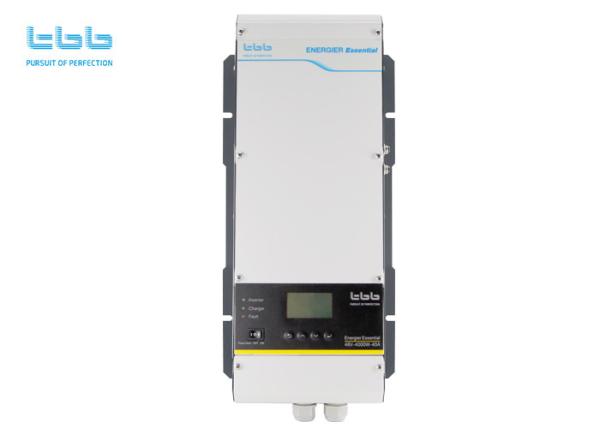

1KW 4KW TBB Power Backup Inverter For Home Alarm System
1KW 4KW TBB Power Backup Inverter For Home Alarm System
1KW 4KW TBB Power Backup Inverter For Home Alarm System
1KW 4KW TBB Power Backup Inverter For Home Alarm System
Specifications
Brand Name :
TBB
Model Number :
CS LCD version
Certification :
CE,ISO9000
Place of Origin :
China
MOQ :
1piece
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
3-7 working days, depending
Packaging Details :
Carton box, Honeycomb plate, Plywood crate
Brand :
TBB
DC input :
48V
AC output :
230VAC
Output frequency :
60HZ
Power :
4KW
Installation :
Wallmount/SUBRACK
Type :
Solar hybrid power inverter
Description

1KW 4KW TBB inverter charger backup battery for home alarm system

Energier essential Inverter charger combination offers two working modes: Normal (ON at main

switch) and Power Save, of which you can set through both switch on equipment LCD control panel or
through RCC.
Battery temperature is a key factor in correct charging, the charging formula must be adjusted
(automatically and in real time) according to the actual battery temperature to ensure that battery are
fully charged but not overcharged or undercharged. All charging voltages recommended by battery
manufacture are in fact ONLY applied at 20℃-25℃.
Through the LCD control panel, user can choose the capacity of battery you want to charge.
According to your choice, Energier essential Inverter charger combination will automatically adjust its
output power makes it suitable the battery capacity selected. The charging current was set at
threshold rate of 15% of battery capacity (I = 0.15C).


Features,

-Designed for tropical region with working temperature up to 60℃
-Optional CM was available for automatic generator start
-Dry contacts
-Optional SNMP card for remote internet access
-Bi directional inverter with pure sine wave output
-Equalization charging program was available
-Compatible with majority of cheap generators in the market
-Designed to work with weak grid
-Can be applied for power backup and solar hybrid system
-High performance designed for all kinds of home appliances
-TBB premium II multi stage charging algorithm with built in
-automatic temperature compensation

LCD Control Panel
1KW 4KW TBB Power Backup Inverter For Home Alarm System

Specification

Model No. 12Vdc CS0625L CS1040L CS2080L
24Vdc CS0615M CS1020M CS2040M CS3060M CS4080M
48Vdc CS3030S CS4040S
INVERTER
Nominal Voltage 12Vdc, 24Vdc, 48Vdc
power 30mins @25℃ (W) 600 1000 2000 3000 4000
Cont.power@25℃ (W) 600 1000 1800 2500 3600
Cont.power@40℃ (W) 600 1000 1500 2000 3000
Cos φ 0.9-1
Surge 300%
Output voltage【1】 230VAC or 110VAC ± 2% 230VAC ± 2%
Output frequency 50Hz or 60Hz ± 0.1%
Efficiency (MAX.) 12Vdc 88%
24Vdc 88%
48Vdc 92%

Bypass
range

 UPS mode 184VAC-264VAC/92VAC-132VAC 184VAC-264VAC
GEN mode 160VAC-280VAC/80VAC-140VAC 160VAC-280VAC
Crest factor 3:1
THD <3%
Zero load power 17 22 27 36 62
Zero load power (power save mode) 4 5 7 9 15
Output circuit breaker 5A 10A 15A 30A 30A
Overheat protection auto disconnect
Overload protection auto disconnect
shortcut protection auto disconnect
Charger
Nominal Output Voltage 12Vdc, 24Vdc, 48Vdc
Max Output current (A) - adjustable 25/15 40/20 80/40 60/30 80/40
AC Input range UPS mode 184VAC - 264VAC/92VAC-132VAC 184VAC - 264VAC
GEN mode 160VAC - 280VAC/80VAC-140VAC 160VAC - 280VAC
Battery types AGM / GEL / LFP / Flooded
Absorption time variable
Temperature compensation -4mV/℃/cell
Charger circuit breaker 5A 10A 15A 30A 30A
Other Data
Transfer time UPS mode 15ms
GEN mode 2s
Transfer switch 40A
Battery connector M8 x 2
AC connector Terminal block (M3 screw)
Mechanical Data
Enclosure Steel with powder paint
Dimension (mm) 444x186x135 512x216x176
Net Weight (kgs) 9.5 14 16 18.5 22.5
Cooling Forced fan
Protection IP20
Standard
Safety EN60950-1
EMC EN55022,EN55024
【1】Output voltage: 220VAC/60Hz for Philippines
