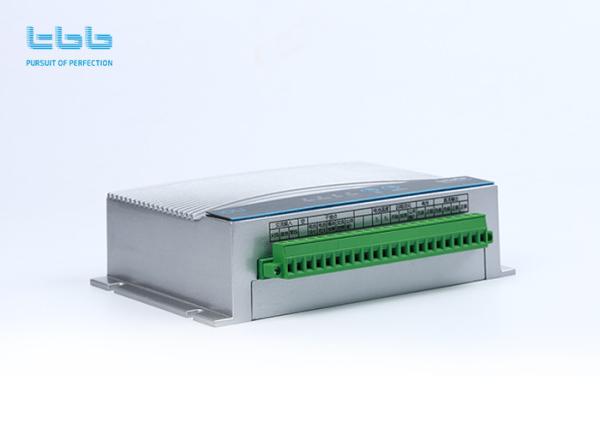

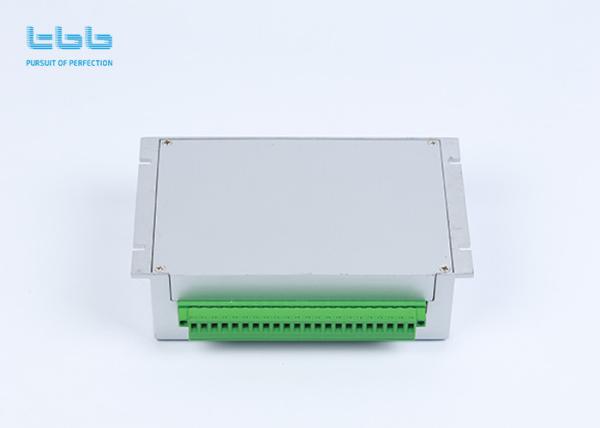

Self - Cooling 24v / 48v Dc Ups Power Supply Idu Device For Industrial
Self - Cooling 24v / 48v Dc Ups Power Supply Idu Device For Industrial
Self - Cooling 24v / 48v Dc Ups Power Supply Idu Device For Industrial
Self - Cooling 24v / 48v Dc Ups Power Supply Idu Device For Industrial
Specifications
Brand Name :
TBB
Model Number :
iDU500 series
Certification :
CE
Place of Origin :
China
MOQ :
1piece
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
5-30 days based on order qty
Packaging Details :
Carton box
Output Voltage :
24VDC/48VDC
Peak Power :
500W
Communication :
RS485 protocol
Efficiency :
90%
Protection :
Output short circuit
Brand :
TBB
Dimension :
158*110*45MM
Charging :
6 steps
Charging current :
3A
Description


Self - Cooling 24v / 48v Dc Ups Power Supply Idu Device For Industrial

iDU is a DC UPS integrating multiple functions into one unit, including a smart battery charger, battery monitor and the load management. The built-in professional adaptive charging algorithm with automatic temperature charging makes it suitable for composing a power backup system for various outdoor equipments, such as DAS, RF and FTU etc.

Features

  • Power factor correction.
  • Professional temperature compensated battery charging control.
  • Working temperature: -40℃-70℃.
  • Low power consumption.
  • Self- cooling design.
  • IP55 design.
  • System data monitor via RS484 communication.
    • Real-time power supply data.
    • Real-time alarm data.
    • Real-time battery data, including battery voltage and discharging current.




Schematic Diagram

  • When AC grid is available, iDU offers 3 steps’ smart charging to the battery. At the same time, it offers the power supply to the load.
  • When AC grid is not available, battery offers the energy to the loads. iDU alarms via dry contact.
  • When battery discharged until the low voltage protection level, iDU cut off the output of battery and alarms via dry contact.
  • When the battery in the floating state for a long time, in order to avoid plate passivation, the module will automatically periodically activation process, at the same time also provide remote manual activation interface and local activation key, convenient for the user to control the active state.




Structure
Self - Cooling 24v / 48v Dc Ups Power Supply Idu Device For Industrial

Port definitions

No.LabelDescriptionNo.LabelDescription
1LLive line of AC input12T1Temperature sensor port
2PEEarth line of AC input13T2
3NNeutral line of AC input14HKBattery equilization interface
4NCReserved15HG
5HOKDry contacts16VG
6VL17B-Battery-
7VH18B+Battery +
8POK19VO-DC outputs
9VC20VO-
10ARS485 port21VO+
11B22VO+






Specification

ModeliDU500-12iDU500-24iDU500-48
Output voltage (V)14.428.857.6
Output current(A)Nominal current83.52
Peak current(15S)202010
Nominal Input Voltage165-265VAC,50/60HZ
Charging curve3 steps smart charging
Temperature compensationAutomatic temperature compensation
Absorption voltage(V)14.428.857.6
Floating voltage(V)13.52754
Charging current (A)31.51
EquilizationAutomatic/Manual
Efficiency90%
Ripple noise≤500mVp-p
Voltage precision≤2%
Coolingno fans
Working temperature-40℃~ +70℃: full load at 60℃ and derating 60% at 70℃
CommunicationRS485
Dry contactAC grid fault, Battery low voltage, unit fault and Battery equilization
Battery low voltage protection(VDC)112244
Battery EQ voltage protection(VDC)11.52346
Protection
Output short circuitUnit cut down the outputs,restart automatically when the issue disappears
Battery connection reverse polarityNo output
Charger over temperatureDerate the output
Battery over temperatureStop charging
Certification
LVDEN60335-1,EN60335-2-29
EMCEN55014-1,EN55014-2,EN61000-3-2,EN61000-3-3
Structure
OutcaseAluminum
Dimension168x110x45168x110x45168x110x45
168x110x451kgs1kgs1kgs
IP protectionIP55
MountingWall mount
Isulation safety
Isulation resistance≥50M
Dimension2.5KV/1min/5mA
