ALL- IN - ONE Hybrid solar inverter charger for home 12V35A1000W with Temperature compensation

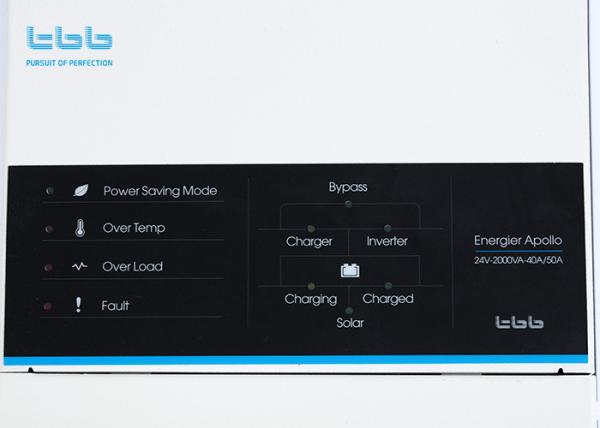

Energier Apollo charge controller can be used in multiple applications. It can compose power backup system, or with a quick setting, it can compose a simple solar hybrid system either with grid or diesel generators.

Energier Apollo is a sine wave inverter which generates a near perfect sinusoidal AC wave power output that is very similar or even better to what you could get from your utility grid. Pure sine wave can guarantee the correct function of sensitive equipment (computer,data center service,.....

PWM version 1.2KW-1.7KW

MPPT version 2KW-4KW

Energier Apollo has some distinguished features designed especially for African, Middle East and
South East Asian countries where the grid was not stable and low voltage was frequently
encountered. Energier Apollo can maximize the usage of grid and automatically adjust its charging
in accordance with the setting.Fully programmable with Vision Lite or Rapconfig software, weak grid mode can dramatically increase the usage of grid upon available.

Specifications

INVERTER

Three Working modes: Weak grid/Solar hybrid/ Solar energy storage

Nominal Voltage: 12VDC

Power 30mins @25℃(VA):1000

Power 30mins @25℃(W):900

Cont. power @25℃( VA) 【1】:800

Cont. power @25℃( W):750

Cont. power @40℃( W):700

Output voltage【2】:230 VAC / 110 VAC ± 2%

Output frequency :50 / 60 Hz ± 0.1%

Cos φ:0.9-1

Overload Capability【3】:>125% 60S

Overload Capability【3】:>150% 20S

Surge:300%

Efficiency (MAX.):90.5%

Bypass range: Weak Grid 168 VAC - 276 VAC / 84 VAC -138 VAC

Bypass range: Standard 184 VAC - 264 VAC / 92 VAC -132 VAC

THD 【4】:<3%

CHARGER

Nominal Output Voltage:12VDC

Max Output current (A) - adjustable:35A

AC Input range: Weak Grid 168 VAC - 264 VAC / 84 VAC -132 VAC

AC Input range: Standard 184 VAC - 264 VAC / 92 VAC -132 VAC

Battery types:AGM / GEL(OPzV) / LFP / Flooded

Temperature compensation:-4mV / ℃ / cell

SOLAR CHARGE CONTROLLER

Max PV open circuit voltage (Voc):25 VDC

Recommended PV (Vmpp):16-19VDC

Current max:50A

PV Fuse:40AX2

PV input terminal:MC4X2

Other Data
Typical transfer time: 8ms
DC Fuse 40AX4

Transfer switch 16A

Dimension (mm) (max): 470×233×95

Enclosure:Steel with powder paint

Net Weight (KGs):10.5

Safety EN62109-1 , EN62109-2
EMC: EN61000-3-2,EN61000-3-3,EN61000-6-1,EN61000-6-3

Remarks:

【1】None linear load, crest factor 3:1
【2】Output voltage: 220 VAC / 60Hz for Philippines
【3】Base on Cont. power @25℃
【4】linear load, crest factor 1.4:1

Accessory( Optinal)

- RCH

- Cyber

Monitoring : with all real time data Battery State of Charge

Digiital Shun: Digital shunt features microprocessor controlled combined with high resolution measuring system for battery voltage and charge/discharge current. With built in software,it can Apart from discharging and charging, multiple other factors are considered including battery size, age ratio of battery etc. With shunt,
