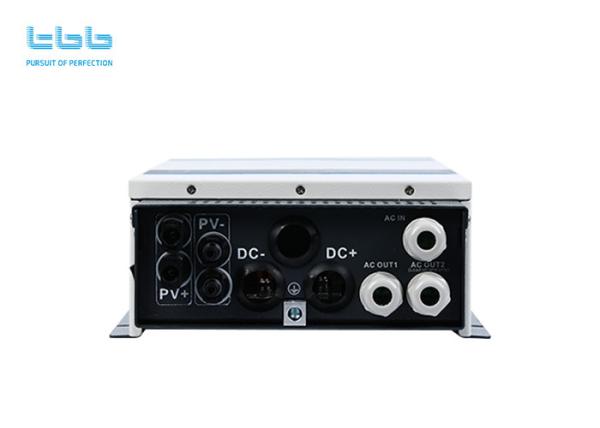

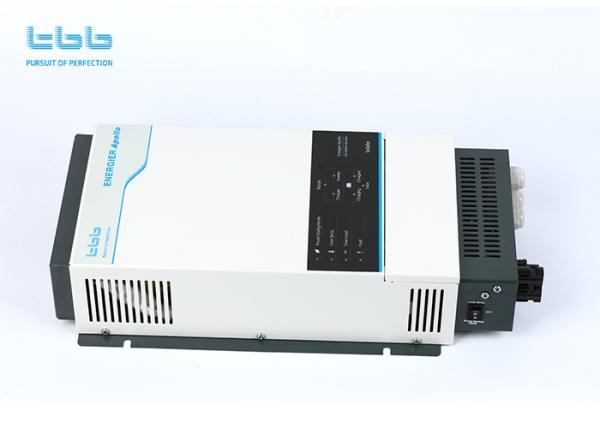

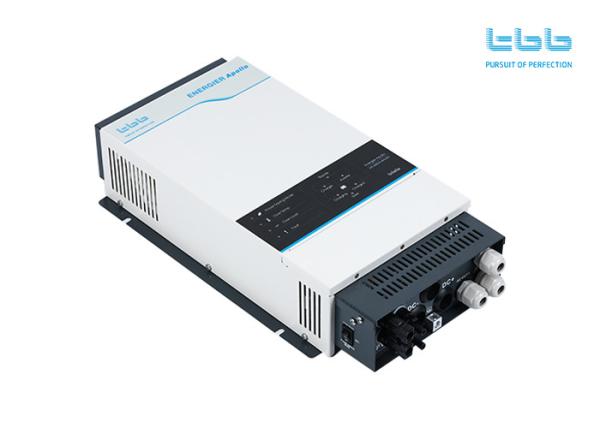

Pure sinve wave inverter charger combi with PWM 12V35A1000W with Temperature compensation

Energier Apollo charge controller can be used in multiple applications. It can compose power backup system, or with a quick setting, it can compose a simple solar hybrid system either with grid or diesel generators.

Features:

- High efficiency up to 96%

- High performance designed for all kinds of home apliances

- TBB premium II multi stage charging algorithm with built in automatic temperature&voltage compensation charging

- All in one unit intergrating multiple functions

- Can be applied for solar hybrid and power backup system

- Extremely low status consumption

- PWM solar charge controller with built in MC4 terminal

- Equalization charging program was available for flooded and OPZS battery

- Lithium Battery charging was available

- Designed for tropical region

- Designed to work with weak grid

- Compatible with majority of cheap generators in the market

Specifications

INVERTER

Three Working modes: Weak grid/Solar hybrid/ Solar energy storage

Nominal Voltage: 12VDC

Power 30mins @25℃(VA):1000

Power 30mins @25℃(W):900

Cont. power @25℃( VA) 【1】:800

Cont. power @25℃( W):750

Cont. power @40℃( W):700

Output voltage【2】:230 VAC / 110 VAC ± 2%

Output frequency :50 / 60 Hz ± 0.1%

Cos φ:0.9-1

Overload Capability【3】:>125% 60S

Overload Capability【3】:>150% 20S

Surge:300%

Efficiency (MAX.):90.5%

Bypass range: Weak Grid 168 VAC - 276 VAC / 84 VAC -138 VAC

Bypass range: Standard 184 VAC - 264 VAC / 92 VAC -132 VAC

THD 【4】:<3%

CHARGER

Nominal Output Voltage:12VDC

Max Output current (A) - adjustable:35A

AC Input range: Weak Grid 168 VAC - 264 VAC / 84 VAC -132 VAC

AC Input range: Standard 184 VAC - 264 VAC / 92 VAC -132 VAC

Battery types:AGM / GEL(OPzV) / LFP / Flooded

Temperature compensation:-4mV / ℃ / cell

SOLAR CHARGE CONTROLLER

Max PV open circuit voltage (Voc):25 VDC

Recommended PV (Vmpp):16-19VDC

Current max:50A

PV Fuse:40AX2

PV input terminal:MC4X2

Other Data
Typical transfer time: 8ms
DC Fuse 40AX4

Transfer switch 16A

Dimension (mm) (max): 470×233×95

Enclosure:Steel with powder paint

Net Weight (KGs):10.5

Safety EN62109-1 , EN62109-2
EMC: EN61000-3-2,EN61000-3-3,EN61000-6-1,EN61000-6-3

Remarks:

【1】None linear load, crest factor 3:1
【2】Output voltage: 220 VAC / 60Hz for Philippines
【3】Base on Cont. power @25℃
【4】linear load, crest factor 1.4:1

Accessory( Optinal)

- RCH

- Cyber

TS
