CH1630L Solar Inverter Charger Optimal Battery Protection True Sine Wave Voltage
CH1630L Solar Inverter Charger Optimal Battery Protection True Sine Wave Voltage
CH1630L Solar Inverter Charger Optimal Battery Protection True Sine Wave Voltage
CH1630L Solar Inverter Charger Optimal Battery Protection True Sine Wave Voltage
CH1630L Solar Inverter Charger Optimal Battery Protection True Sine Wave Voltage
CH1630L Solar Inverter Charger Optimal Battery Protection True Sine Wave Voltage
CH1630L Solar Inverter Charger Optimal Battery Protection True Sine Wave Voltage
CH1630L Solar Inverter Charger Optimal Battery Protection True Sine Wave Voltage
Specifications
Brand Name :
TBB
Model Number :
ch1650m
Certification :
CE,ISO9000
Place of Origin :
China
MOQ :
1piece
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
3-5DAYS DEPENDING
Delivery Time :
3-5DAYS DEPENDING
Packaging Details :
Carton box, Honeycomb plate, Plywood crate
Output Voltage :
230Vac
DC INPUT :
12VDC/24VDC
Efficiency :
Max 93%
VOC :
50VDC
Model :
CH1630L
Power :
1.6KVA
Type :
Built in AEA
Frequency :
50HZ
Description

Off grid solar inverter charger 12V 50A 1.3KVA 230VAC/50HZ 1KVA with PWM solar charge controller

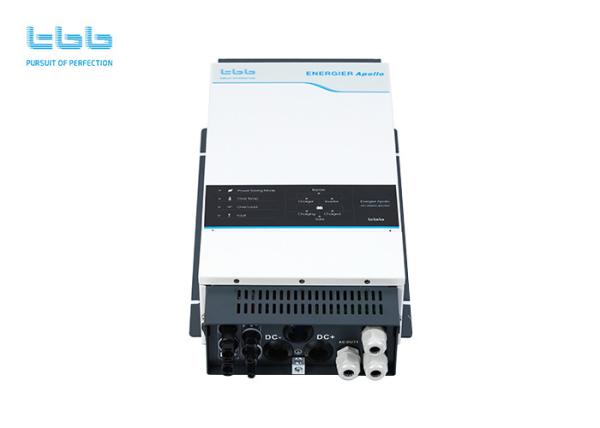

Energier Apollo is a powerful unit integrated multiple functions, including a high performance
true sine wave inverter, a powerful battery charger, a PWM charge controller, a high speed
automatic transfer switch and function of load management. Its distinguishing surge capability
makes it capable to power most demanding appliances, such as fridge, freezer, water pump etc.

12 V 1000 VA 35 A | 50A 25 VDC
12 V 1300 VA 50 A | 50A 25 VDC
24 V 1600 VA 30 A | 50A 50 VDC
24 V 2000 VA 40 A | 50A 50 VDC

Features.

-Lithium Battery charging was available.
-Designed for tropical region.
-Designed to work with weak grid.
-High efficiency up to 93%.
-High performance designed for all kinds of home appliances.
-Extremely low status consumption power.
-Built in AEA
-PWM solar charge controller with built in MC4 terminal.
-ALL-IN-ONE for Solar Hybrid-system

-All in one unit integrating multiple functions.
-Can be applied for solar hybrid and power backup system.

-TBB premium II multi stage charging algorithm with built in
-automatic temperature & voltage compensation charging.
-Equalization charging program was available for flooded and OPZS battery.

-Compatible with majority of cheap generators in the market.

Acessory (Optional)

RCH

CH1630L Solar Inverter Charger Optimal Battery Protection True Sine Wave Voltage

CYBER

CH1630L Solar Inverter Charger Optimal Battery Protection True Sine Wave VoltageCH1630L Solar Inverter Charger Optimal Battery Protection True Sine Wave Voltage

Installation

CH1630L Solar Inverter Charger Optimal Battery Protection True Sine Wave Voltage

Through the clock switch, you can configure the battery you are going to connected for a premium charging current. The charging current was set at I=0.15C (15% of the battery capacity you choose) Or CH1630L Solar Inverter Charger Optimal Battery Protection True Sine Wave Voltage

Position Battery Capacity
0

≤50
1 100
2 200
3 300
4 400
5 500
6 600
7 700
8 800
9

≥900
