power inverter for power tools 24V1kva with PWM charge controller

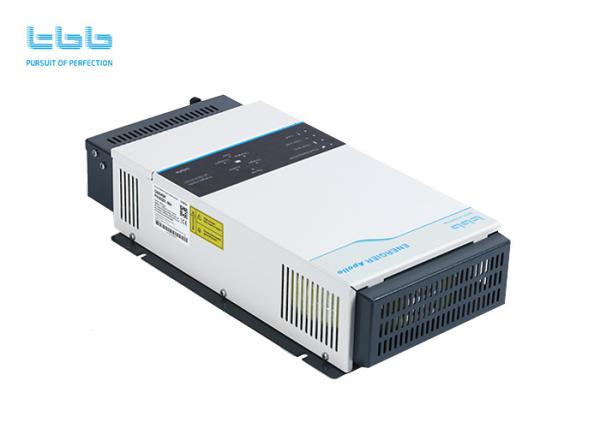

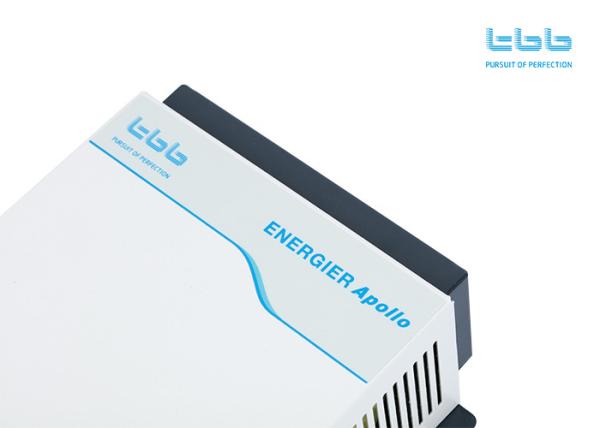

Energier Apollo has some distinguished features designed especially for African, Middle East and
South East Asian countries where the grid was not stable and low voltage was frequently,encountered. Energier Apollo can maximize the usage of grid and automatically adjust its charging
in accordance with the setting.

Features:

- Extremely low status consumption

- All in one unit intergrating multiple functions

- Can be applied for solar hybrid and power backup system

- Designed for tropical region

- PWM solar charge controller with built in MC4 terminal

- Lithium Battery charging was available

- Compatible with majority of cheap generators in the market

- High efficiency up to 96%

- High performance designed for all kinds of home apliances

Specifications

INVERTER

Three Working modes: Weak grid/Solar hybrid/ Solar energy storage

Nominal Voltage: 12VDC

Power 30mins @25℃(VA):1000

Power 30mins @25℃(W):900

Cont. power @25℃( VA) 【1】:800

Cont. power @25℃( W):750

Cont. power @40℃( W):700

Output voltage【2】:230 VAC / 110 VAC ± 2%

Output frequency :50 / 60 Hz ± 0.1%

Cos φ:0.9-1

Overload Capability【3】:>125% 60S

Overload Capability【3】:>150% 20S

Surge:300%

Efficiency (MAX.):90.5%

Bypass range: Weak Grid 168 VAC - 276 VAC / 84 VAC -138 VAC

Bypass range: Standard 184 VAC - 264 VAC / 92 VAC -132 VAC

THD 【4】:<3%

CHARGER

Nominal Output Voltage:12VDC

Max Output current (A) - adjustable:35A

AC Input range: Weak Grid 168 VAC - 264 VAC / 84 VAC -132 VAC

AC Input range: Standard 184 VAC - 264 VAC / 92 VAC -132 VAC

Battery types:AGM / GEL(OPzV) / LFP / Flooded

Temperature compensation:-4mV / ℃ / cell

SOLAR CHARGE CONTROLLER

Max PV open circuit voltage (Voc):25 VDC

Recommended PV (Vmpp):16-19VDC

Current max:50A

PV Fuse:40AX2

PV input terminal:MC4X2

Other Data
Typical transfer time: 8ms
DC Fuse 40AX4

Transfer switch 16A

Dimension (mm) (max): 470×233×95

Enclosure:Steel with powder paint

Net Weight (KGs):10.5

Safety EN62109-1 , EN62109-2
EMC: EN61000-3-2,EN61000-3-3,EN61000-6-1,EN61000-6-3

Accessory( Optinal)

- RCH

- Cyber
