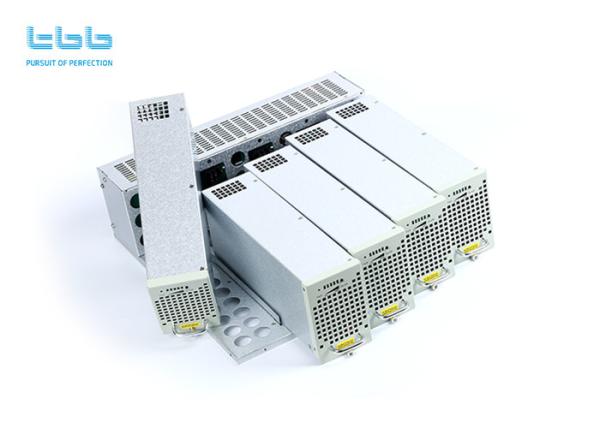

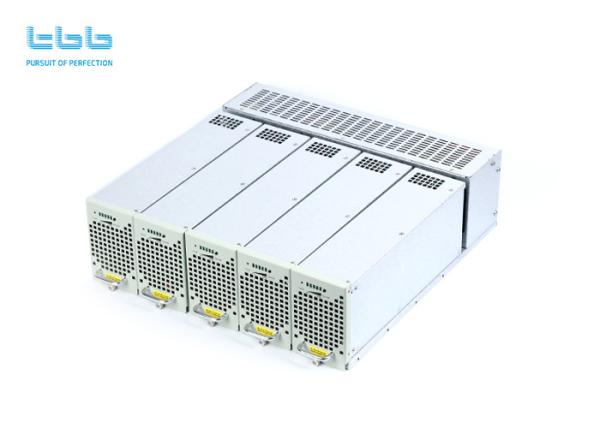

220V/50HZ 110vdc To 220vac Inverter Max 196U Compact Size High Efficiency
220V/50HZ 110vdc To 220vac Inverter Max 196U Compact Size High Efficiency
220V/50HZ 110vdc To 220vac Inverter Max 196U Compact Size High Efficiency
220V/50HZ 110vdc To 220vac Inverter Max 196U Compact Size High Efficiency
220V/50HZ 110vdc To 220vac Inverter Max 196U Compact Size High Efficiency
220V/50HZ 110vdc To 220vac Inverter Max 196U Compact Size High Efficiency
220V/50HZ 110vdc To 220vac Inverter Max 196U Compact Size High Efficiency
220V/50HZ 110vdc To 220vac Inverter Max 196U Compact Size High Efficiency
Specifications
Brand Name :
TBB
Model Number :
TMK3-19
Certification :
CE,ISO9000
Place of Origin :
China
MOQ :
1piece
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
1-3days depends on batch order qty
Packaging Details :
Carton, Plywood pallet
Capacity :
1-16KVA
Model :
TJ10D
DC input :
110Vdc
Output Frequency :
220V/50HZ/
Weight :
10-30KGS
Display :
LCD
Size :
Max 19"6U
Description

110Vdc to 220vac inverter system Hot plug LCD monitor+Inverter Module+Subrack With Power Factor 0.8

Combined with modern semiconductors with high switching frequencies technology, TM250 inverter module features compact construction, low weight and high efficiency. TM250 inverter is able to run in parallel supporting hot plug, of which is suitable to compose small or medium modular inverter system (STM250, HTM250 or XTM250)

Max efficiency up to 89%

  • 19”2U or 19”3U
  • transfer time 4ms
  • History record
  • Real time clock
  • Relay dry contact x 6
  • Auxiliary contacts x 16
  • RS485 communication port
  • Working mode selectable (AC priority or DC priority )
  • Integrated function of monitor and static transfer switch
  • System parameter settable


Monitor

220V/50HZ 110vdc To 220vac Inverter Max 19

Inverter Module


220V/50HZ 110vdc To 220vac Inverter Max 19

Structure
220V/50HZ 110vdc To 220vac Inverter Max 19

Specification

Model TM251 TM252 TM253
Electrical 　
Nominal DC input 24 or 48Vdc 48VDC
DC operating range Refer to 2.3 on Page 9
Output power 1Kva 1.5Kva 2Kva
Wave form Pure sine wave
Power factor 0.8
Norminal output 110Vac 115Vac 120Vac 127Vac 220Vac 230Vac 240Vac (±2%) 220Vac 230Vac 240Vac (±2%)
Output frequency 50/60Hz ± 1%
THD <3% liner load
<5% non-liner load
Crest factor 3:1
Efficiency Max 85% / 87%
Overload 150% 10s
125% 1min
Dynamic response time < 20ms
Others
Operating Temp. Full load, -10℃ - 40℃
Isolation 1500Vrms
Safety EN60950-1
Emmission EN55022
Immunity EN55022
Electrical Safety & Environment
Model TM251,TM252,TM253 Operating Temp. : -10C - 40C (de-rating above 40C)
DC Input Storage Temp. : -40C - 85C
Nominal Voltage 24VDC, 48VDC, 110VDC, 220VDC, 240VDC Isolation AC–DC : 2000Vrms
Operating range Refer to 2.3 on Page 9 DC-ground : 2000Vrms
AC Output AC-ground : 2000Vrms
Output power 1KVA, 1.5KVA,2KVA
Max power 24VDC: 1KVA 　
Others: 2KVA
Wave form Pure sine wave Display
Power factor 0.8
Nominal output 110/120VAC or 220/230/240VAC LED Indicator Running
Voltage variation Max ± 2% Failure
Output frequency 50/60Hz ± 0.1% Load Percentage
THD <3% liner load
<5% non-liner load
Crest factor 3:01
Efficiency Max 88%
Overload 150% 10secs
125% 10mins
Dynamic response time < 20ms
