48Vdc input 220Vac/50Hz 2Kva Standalone Inverter high frequency Inverter

TBB TP600 series inverter could achieve a compact size of maximized power density. Here are the Features;

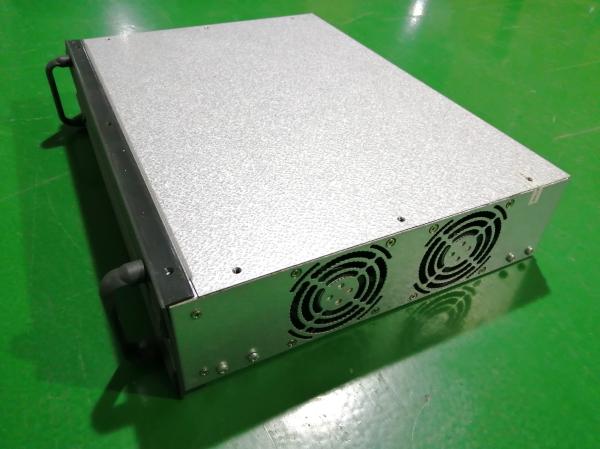

Combined with modern semiconductors and a patent pending control algorithm, TP600 series inverter could achieve a compact size of maximized power density featuring 19” rack mounted and 2U height (for unit up to 6KVA).

TP600 series standalone inverter features an integrated utility bypass. With a dip switch, the inverter can be set into AC priority mode, of which power is always connected to the AC utility line and will switch to inverter power line when AC utility fails with transfer time less than 8ms.

The performance of TP600 series of inverter is at top of the market with peak efficiency up to 90% and small harmonics on DC side and it can be interfaced with RS232 and RS485.

Models are available for use with DC input voltages of 24VDC,48VDC,110VDC,125VDC or 220VDC.

• Working mode selectable (AC priority or DC priority) with 5-8ms transfer time
• Pure sine wave, THD<3%
• High Frequency design
• DC/AC isolation improving system security
• Available with DC input 24VDC, 48VDC,110VDC or 220VDC
• Voltage and Frequency adjustable by distributor within the specific range.

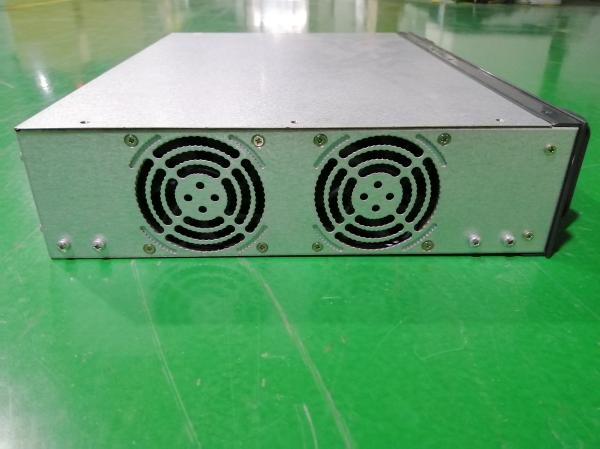

• Thermal controlled fan speed
• Max efficiency 90%
• User’s friendly LED display
• Complete protections with auto recovery
• Input reverse polarity protection
• RS232+RS485 and Dry point
• EMI/EMC

LED Shows

Notes:

1. To protect battery, HTM250 can only be powered ON while battery voltage fall into DC operated range.

2. When battery voltage fell to the level of warning point, audible alarm will be started and it will continue output until the voltage fall under the low voltage disconnect point.

Specifications

TP600M and TP600S (24VDC/48VDC models)

1. The output power factor for TP630M is 0.7
2. Overload capability of TP660S is different, please consult us.
