Specifications
Brand Name :
TBB
Model Number :
TP600S
Place of Origin :
China
MOQ :
1piece
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
1-3days depends on batch order qty
Packaging Details :
Carton box
Brand :
TBB
Capacity :
1-6KVA
DC input :
24V/48V/110V/220V
AC output :
230VAC
Frequency :
50HZ/60HZ
Type :
19"1U/19"2U
Warranty :
2 Years
Output waveform :
Pure Sine Wave Output
Application :
Telecom,Solar System
Description

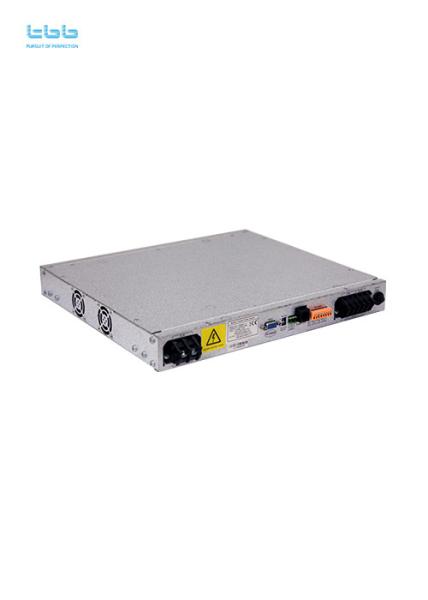

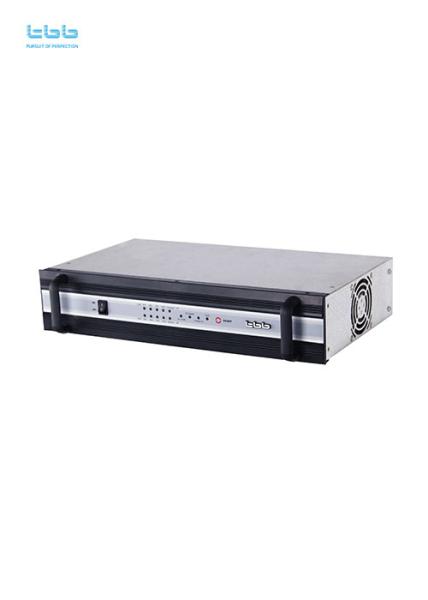

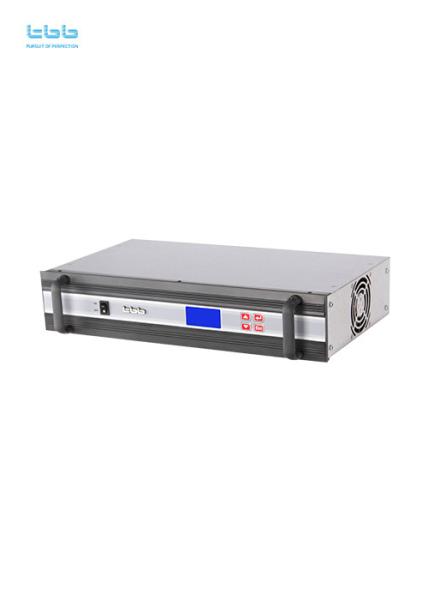

TP600S 2U series

TBB Power Industrial Standalone inverter

TBB Power 48Vdc to 220VAC DC to AC TP600S standalone pure sine wave inverter 1KVA-6KVA

Combined with modern semiconductors and sophisticated control algorithm, TP600 series
inverter could achieve a compact size of maximized power density.
TP600 series standalone inverter was a standby design with an integrated utility bypass. With
a dip switch, the inverter can be set into either AC priority mode or DC priority mode.

Features

- 19”2U
- High Frequency standby design with
- Transfer time 5-8ms
- Working mode selectable (AC priority or DC priority)
- High Frequency design
- DC/AC isolation improving system security
- System parameters programmable
- Complete protection
- Thermal controlled fan
- RS232 or RS485 communication port and Dry point
- Voltage adjustable 230Vac (200-240) or 110Vac (100-120)
- Front panel connection version available

Please find the following recommended wire size.

Power AC wiring DC wiring
230VAC 110VAC 24V 48V 110V 125V 220V
1KVA 1 mm2 2.5 mm2 10 mm2 4 mm2 1.5 mm2 1.5 mm2 1 mm2
2KVA 2.5 mm2 6 mm2 20 mm2 10 mm2 4 mm2 4 mm2 2.5 mm2
3KVA 2.5 mm2 6 mm2 32 mm2 16 mm2 6 mm2 6 mm2 2.5 mm2
4KVA 4 mm2 8 mm2 N/A 20 mm2 8 mm2 8 mm2 4 mm2
5KVA 4 mm2 8 mm2 N/A 32 mm2 10 mm2 10 mm2 4 mm2
6KVA 4 mm2 8 mm2 N/A 32 mm2 10 mm2 10 mm2 6 mm2

Specifications

TP600S (48VDC models)

Model TP610 / TP620 / TP630 TP640 / TP650 / TP660
Electrical
DC input 48Vdc 48Vdc
Dc input range .-17% ～ +25%
AC Input
AC input 230Vac or 110Vac (－25%～+20%) 230Vac (－25%～+20%)
Frequency range ±10%
Output power 1kva, 2kva, 3kva 4kva, 5kva, 6kva
Wave form Pure sine wave
Power factor 0.8 * 0.7
Nominal output voltage 230Vac or 110Vac 230Vac
Voltage variation Max ± 2%
Output frequency 50/60Hz ± 0.1Hz
Efficiency Max 88%
THD <3% liner load
<5% non-liner load
Crest factor .3:1
Overload 125% 10secs
110% 10mins
Transfer time 5-8ms
Dynamic response time < 30ms
LVD 20Vdc or 40Vdc 40Vdc
Display & Communication
Communication Interface RS232 and RS485
4xDry contact
Safety & Environment
Operating Temp. Full load, <-20℃> - 40℃
Derating using, 40℃ - 60℃
Isolation 1500Vrms
Mechanical
Dimension (WxH) 19"2U
Depth 256mm / 321mm / 390mm 321mm / 390mm
Weight 6kgs / 12kgs /15kgs 12kgs / 15kgs
Cooling forced fan with thermal control
Enclosure IP20
Standard
LVD EN60950-1
EMC EN55022
