Auto Recovery Industrial Power Inverter , EMI/EMC Inverter For Industrial Use
Auto Recovery Industrial Power Inverter , EMI/EMC Inverter For Industrial Use
Auto Recovery Industrial Power Inverter , EMI/EMC Inverter For Industrial Use
Auto Recovery Industrial Power Inverter , EMI/EMC Inverter For Industrial Use
Specifications
Brand Name :
TBB
Model Number :
TP640S
Certification :
CE,ISO9000
Place of Origin :
China
MOQ :
1piece
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
1-3days depends on batch order qty
Packaging Details :
Carton, Plywood pallet
Model :
TP640S
Capacity :
4000VA
DC INPUT :
48VDC
AC OUPUT :
220VAC
Frequncy :
50HZ
Weidth :
19"2U
Installation :
Subrack
Input voltage :
110v/120v/220v/230v
Output waveform :
Pure Sine wave/Same as input (Bypass Mode)
Application :
Telecom
Description

48Vdc input 4000Va 220Vac/50Hz Standalone Inverter

TBB TP600 series inverter could achieve a compact size of maximized power density. Here are the Features;

Combined with modern semiconductors and a patent pending control algorithm, TP600 series inverter could achieve a compact size of maximized power density featuring 19” rack mounted and 2U height (for unit up to 6KVA).

The performance of TP600 series of inverter is at top of the market with peak efficiency up to 90% and small harmonics on DC side and it can be interfaced with RS232 and RS485.

  • Standalone design
  • Working mode selectable (AC priority or DC priority) with 5-8ms transfer time
  • Pure sine wave, THD<3%
  • High Frequency design
  • DC/AC isolation improving system security
  • Available with DC input 24VDC, 48VDC,110VDC or 220VDC
  • Voltage and Frequency adjustable by distributor within the specific range.
  • Thermal controlled fan speed
  • Max efficiency 90%
  • User’s friendly LED display
  • Complete protections with auto recovery
  • Input reverse polarity protection
  • RS232+RS485 and Dry point
  • EMI/EMC

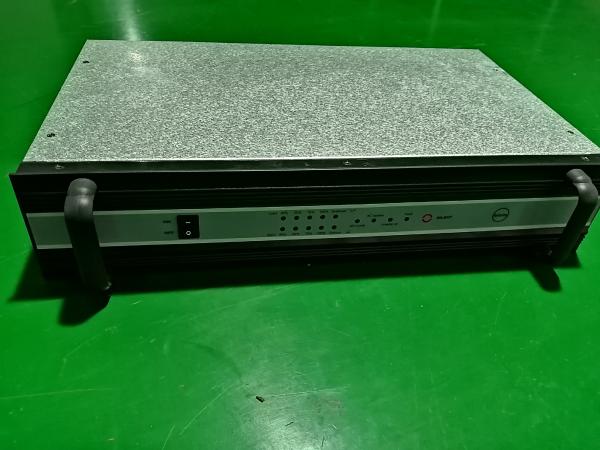

LED Shows

Auto Recovery Industrial Power Inverter , EMI/EMC Inverter For Industrial Use

　 Description LED color Definition in case of illumination
1 fault LED Red Output failure of this module
2 Load percentage Green indicating load percentage of this module
3 on/off switch Switch on/off this module

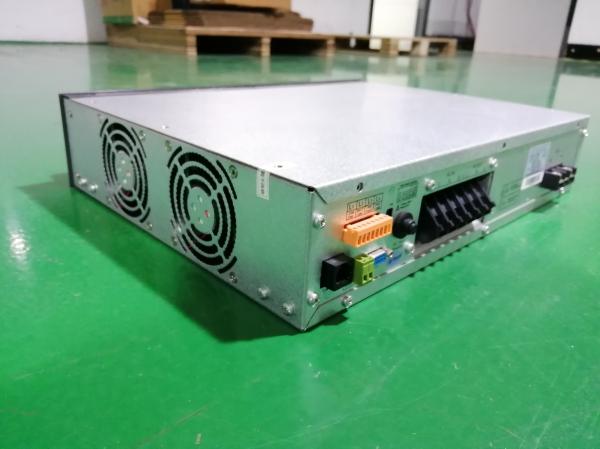

Structure

Auto Recovery Industrial Power Inverter , EMI/EMC Inverter For Industrial Use

Specifications

TP600M and TP600S (24VDC/48VDC models)

Model TP610 / TP620 / TP630 TP640 / TP650 / TP660
Electrical
DC input 24Vdc or 48Vdc 48Vdc
Dc input range .-17% ～ +25%
AC Input
AC input 230Vac or 110Vac (－25%～+20%) 230Vac (－25%～+20%)
Frequency range ±10%
Output power 1kva, 2kva, 3kva 4kva, 5kva, 6kva
Wave form Pure sine wave
Power factor 0.8 * 0.7
Nominal output voltage 230Vac or 110Vac 230Vac
Voltage variation Max ± 2%
Output frequency 50/60Hz ± 0.1Hz
Efficiency Max 88%
THD <3% liner load
<5% non-liner load
Crest factor .3:1
Overload 125% 10secs
110% 10mins
Transfer time 5-8ms
Dynamic response time < 30ms
LVD 20Vdc or 40Vdc 40Vdc
Display & Communication
Communication Interface RS232 and RS485
4xDry contact
Safety & Environment
Operating Temp. Full load, <-20℃> - 40℃
Derating using, 40℃ - 60℃
Isolation 1500Vrms
Mechanical
Dimension (WxH) 19"2U
Depth 256mm / 321mm / 390mm 321mm / 390mm
Weight 6kgs / 12kgs /15kgs 12kgs / 15kgs
Cooling forced fan with thermal control
Enclosure IP20
Standard
LVD EN60950-1
EMC EN55022
  1. The output power factor for TP630M is 0.7
  2. Overload capability of TP660S is different, please consult us.
