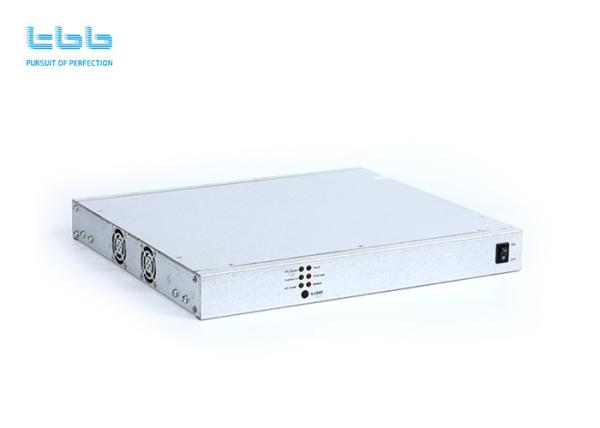

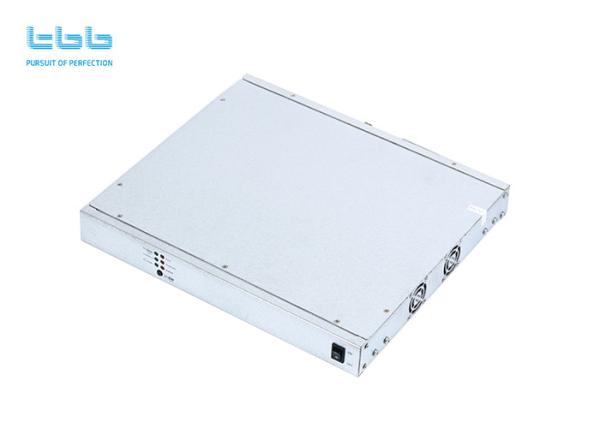

High Frequency Pure Sine Wave Power Inverter 24VDC/48VDC Industrial Type
High Frequency Pure Sine Wave Power Inverter 24VDC/48VDC Industrial Type
High Frequency Pure Sine Wave Power Inverter 24VDC/48VDC Industrial Type
High Frequency Pure Sine Wave Power Inverter 24VDC/48VDC Industrial Type
High Frequency Pure Sine Wave Power Inverter 24VDC/48VDC Industrial Type
High Frequency Pure Sine Wave Power Inverter 24VDC/48VDC Industrial Type
High Frequency Pure Sine Wave Power Inverter 24VDC/48VDC Industrial Type
High Frequency Pure Sine Wave Power Inverter 24VDC/48VDC Industrial Type
Specifications
Brand Name :
TBB
Model Number :
TP600S 1U
Certification :
CE,ISO9000
Place of Origin :
China
MOQ :
1piece
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
1-3days depends on batch order qty
Packaging Details :
Carton, Plywood pallet
Model :
TP600S 1U
Installation :
500VA-1000VA
DC INPUT :
48VDC
AC OUPUT :
230VAC
Frequncy :
50HZ
Output voltage :
110V/220V/230V/240V
Weight :
5-18KG
Output waveform :
pure sine wave
Description

TBB Power Pure Sine Wave Inverter Industrial Inverter High frequency type 24VDC/48VDC


The performance of TP600-1U of inverter is at top of the market with peak efficiency up to 90% and small harmonics on DC side and it can be interfaced with RS232 and RS485.

- Dry Contact Outputs: The equipment must have dry contact outputs to report the basic alarms. You must have at least three dry contacts that report: No DC voltage at the input; No AC voltage at the input;

Here are the Features;
- 19”1U or 19”2U
- High Frequency standby design with
- Transfer time 5-8ms
- Working mode selectable (AC priority or DC priority)
- High Frequency design
- DC/AC isolation improving system security
- System parameters programmable
- Complete protection
- Thermal controlled fan
- RS232 or RS485 communication port and Dry point
- Voltage adjustable 230Vac (200-240) or 110Vac (100-120)
- Front panel connection version available

LED shows

High Frequency Pure Sine Wave Power Inverter 24VDC/48VDC Industrial Type

High Frequency Pure Sine Wave Power Inverter 24VDC/48VDC Industrial Type

Structure

High Frequency Pure Sine Wave Power Inverter 24VDC/48VDC Industrial Type

Specifications

TP600D and TP600E (110VDC/220VDC models)

Model TP605 TP610
Electrical
DC input 110Vdc or 220Vdc
Dc input range .-17% ～ +25%
AC Input
AC input 230Vac or 110Vac (－25%～+20%) 230Vac (－25%～+20%)
Frequency range ±10%
Output power 500va 1kva
Wave form Pure sine wave
Power factor 0.8
Norminal output voltage 230Vac or 110Vac 230Vac
Voltage variation Max ± 2%
Output frequency 50/60Hz ± 0.1Hz
Efficiency Max 90%
THD <3% liner load
<5% non-liner load
Crest factor .3:1
Overload 125% 60secs
110% 10mins
Transfer time 5-8ms
Dynamic response time < 30ms
LVD 91.5Vdc or 183Vdc
Display & Communication
LED indicator Working mode, Fault info
Communication Interface RS232 and RS485
4xDry contact
Safety & Enviroment
Operating Temp. Full load, <-20℃> - 40℃
Derating using, 40℃ - 60℃
Isolation 2000Vrms
Mechanical
Dimension (WxH) 19"1U
Depth 319mm
Weight 4.0kgs/4.5kgs
Cooling forced fan with thermal control
Enclosure IP20
Standard
LVD EN60950-1
EMC EN55022
