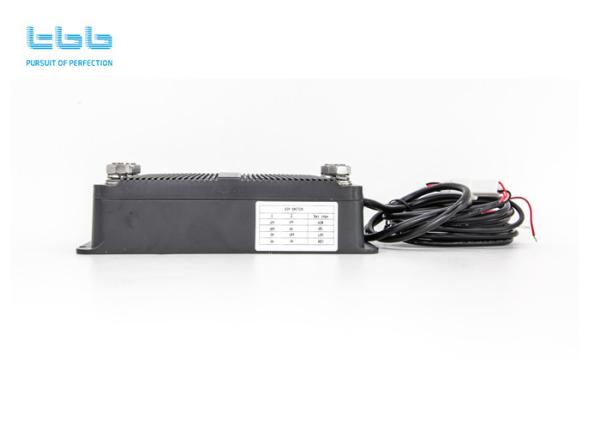

TBB NEMO Battery Converter Charger Dual Input Alternator And Solar Panel
TBB NEMO Battery Converter Charger Dual Input Alternator And Solar Panel
TBB NEMO Battery Converter Charger Dual Input Alternator And Solar Panel
TBB NEMO Battery Converter Charger Dual Input Alternator And Solar Panel
TBB NEMO Battery Converter Charger Dual Input Alternator And Solar Panel
TBB NEMO Battery Converter Charger Dual Input Alternator And Solar Panel
Specifications
Brand Name :
TBB
Model Number :
DX1230/DX1215
Certification :
LVD-EN60335-1,EN60335-2-29; EMCEN55014,EN61000
Place of Origin :
China
MOQ :
1piece
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
5-30 days based on order qty
Packaging Details :
Carton box
Input Nominal voltage :
12V
Max output :
30A/15A
Efficiency :
Max 97%
Working Temp :
~20℃-+60℃
Size :
186.3*102.3*60mm
Net weight :
0.85KG
IP class :
IP65
Out case :
aluminum with anodized, flame proof plastic
Description

TBB NEMO converter charger dual input alternator and solar panel

TBB Brand NEMO Series Booster Charger

Nemo booster charger is a simple but perfect in vehicle charging solution. It draws power from alternator to perform a quick charging for auxiliary battery while you are driving. Compatible with EURO6 Engine, Nemo could maintain the charging with a stable output with smart alternator to assure your battery getting a fully charging in the shortest time without worry about overcharging or undercharging.

NEMO converter charger is compatible with Smart Alternator (Euro 6) which delivers
a variable output when they are not needed. It can maintain the charging with a stable
output in this situation, free from rpm or speed, to assure your battery getting a fully
charging in a shortest time. Upon connecting with PV (For DDX and IDDX series), it will
offer a maintenance charging to your starter battery to eliminate the engine starting
problem.

Features

  • Right charging solution protect your auxiliary battery by regulating voltage and control current
  • TBB premium II multistage charging algorithm for various battery chemicals including LPE
  • Built in automatic temperature and voltage compensated battery charging
  • Compatible with Euro6 Engine
  • With function of battery isolation, protecting starter battery
  • Dual input model with built in solar charge controller(MPPT) is available
  • Supporting parallel to increase power
  • Model with 12Vdc input and 24Vdc output is available
  • IP65 without fan for convenient installtion

With both PV and Alternator input

TBB NEMO Battery Converter Charger Dual Input Alternator And Solar Panel

With Alternator input

TBB NEMO Battery Converter Charger Dual Input Alternator And Solar Panel

Specifications

Model DX1225 DDX1225
Electrical
Input nominal voltage 12VDC
Alternator input voltage range (smart type) 12-16VDC
Alternator input voltage range (conventional type) 13.2-16VDC
Automatic activation -D+ yes
MPPT N/A yes
PV input voltage range N/A 12-25VDC
Output nominal voltage 12VDC
Charge current 25A
Efficiency max 97%
Termperature compensation yes
Voltage compensation yes
Charge algorithm TBB premium II multi stages
Protection Battery charger over temperature/
Battery over temperature/
Over load/ Short circuit
Operation temperature -20C-60C
Enclosure
Material Aluminum with anodized, flame proof plastic
Battery connection M8
Protection category IP65
Weight 0.8kgs
Dimension 186.3*102.3*60mm
Standards
Safety EN60335-1, EN60335-2-29
Emission EN55014-1,EN55014-2,EN61000-3-2,EN61000-3-3
