High Efficiency Li Ion Smart Charger , Lithium Ion Smart Charger Long Life
High Efficiency Li Ion Smart Charger , Lithium Ion Smart Charger Long Life
High Efficiency Li Ion Smart Charger , Lithium Ion Smart Charger Long Life
High Efficiency Li Ion Smart Charger , Lithium Ion Smart Charger Long Life
High Efficiency Li Ion Smart Charger , Lithium Ion Smart Charger Long Life
High Efficiency Li Ion Smart Charger , Lithium Ion Smart Charger Long Life
Specifications
Brand Name :
TBB
Model Number :
BS1210/BS1225/BS1240
Certification :
LVD-EN60335-1,EN60335-2-29; EMCEN55014,EN61000
Place of Origin :
China
MOQ :
1piece
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
5-30 days based on order qty
Packaging Details :
Carton box
PS MODE :
12.8V
Max output :
10A/25A/40A
Temperature Compensation :
automatically
Efficiency :
88%
Slave charger :
Max 3A
Working Temp :
~20℃-+60℃
Net weight :
1-2KG
IP class :
IP22
Humidity :
≤93%( Non - Condensing ）
Out case :
aluminum+plastic
Description

Smart lithium battery charger with active PFC, smaller and higher efficiency max 92%

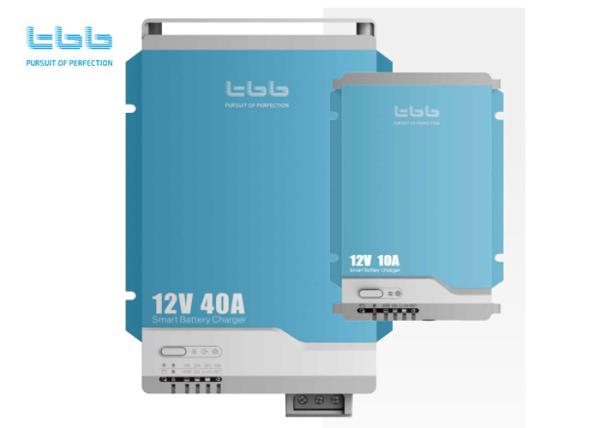

TBB Brand BS TRIDENT Smart Battery Charger

Batteries will be permanently damaged by either overcharged or
remaining undercharged for any period of time. TRIDENT smart battery
charger will continuously deliver right charging at any circumstance with
built in battery management features which will be helpful in prolonging
your battery life expectancy.
Combined with up to date technology and our knowledge with batteries,
Trident smart battery charger was especially designed for mobile and
marine application, it was an ideal solution for your battery charging on
board.

Features :

  • Active PFC featuring smaller and higher efficiency, max 92%.
  • With multiple isolated outputs, including slave charger for starter battery.
  • Automatically work as power supply or charger.
  • Sophisticated TBB premium II multiple stages charging algorithm for lead acid battery.
  • Adaptive charging algorithm for multiple battery chemical including AGM,GEL, etc.
  • LFP (LiFePO4) charging algorithm is available.
  • Automatic temperature compensation charging.
  • Automatic voltage compensation charging.
  • Programmable with monitor.
  • Special silent design.
  • Night mode through remote control.

TBB premium II charging algorithm ;

High Efficiency Li Ion Smart Charger , Lithium Ion Smart Charger Long Life

Specifications

All series

Model BS1210 BS1225 BS1240 BS1225-3 BS1240-3
Electrical
Output voltage (PS mode) (Vdc) 12.8V±0.256Vdc
Max Output current (A) 10 25 40 25 40
Nominal input voltage (Vac) 85-265VAC,50/60Hz 165-265VAC,50/60Hz
Charge algorithms 5 steps. soft start, bulk, absorption, float, recycle
Temperature compensation Automatically
Absorption voltage(Vdc) AGM:13.5V,GEL:13.5V,LFP:13.5V,WET:13.7V
Floating voltage (Vdc) AGM:14.4V,GEL:14.1V,LFP:14.4V,WET:14.7V
Charging current (A) 10 25 40 25 40
Min battery voltage (Vdc) 1 2
Efficiency 88%
Input connector Cable of 1.5 meter with CEE 7/7 plug IEC socket
Output connector Fixed cable,2.5mm², 1 meter M4 Screw (16mm²)
Output 1 1+1
Ripple noise ≤200mVp-p
Regulation Accuracy ≤2%
Cooling Self cooling Fan cooling
Working Temperature -20℃ -- +60℃
Protection
Short circuit Shutdown output, automatically restart when short circuit is removed
Reverse polarity No charging
Charger over temp Shut down the charger
Battery over temp Shut down the charger
Standards
LVD EN60335-1,EN60335-2-29
EMC EN55014-1,EN55014-2,EN61000-3-2,EN61000-3-3
Structure
Out case Aluminum+plastic
Dimension 175*114*53mm 249*165*74mm 249*165*74mm
Weight 1.0KG 1.6KG 1.6KG
IP class IP20 IP23
Insulation Resistance ≥50MΩ
Dielectric strength I/P-O/P:3.0KV,I/P-PG:1.5KV,O/P-PG:0.5KV

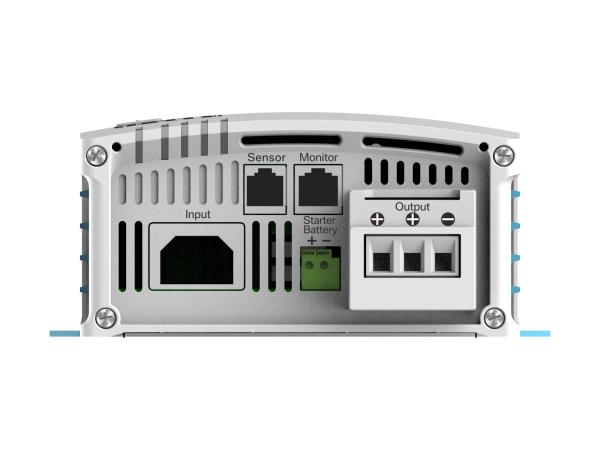

Structure

High Efficiency Li Ion Smart Charger , Lithium Ion Smart Charger Long Life
