ROHS 4000 Watt Pure Sine Wave Power Inverter With LCD Display
ROHS 4000 Watt Pure Sine Wave Power Inverter With LCD Display
ROHS 4000 Watt Pure Sine Wave Power Inverter With LCD Display
ROHS 4000 Watt Pure Sine Wave Power Inverter With LCD Display
ROHS 4000 Watt Pure Sine Wave Power Inverter With LCD Display
ROHS 4000 Watt Pure Sine Wave Power Inverter With LCD Display
ROHS 4000 Watt Pure Sine Wave Power Inverter With LCD Display
ROHS 4000 Watt Pure Sine Wave Power Inverter With LCD Display
Specifications
Brand Name :
SolarverTech
Model Number :
FS4000DR
Certification :
CE ROHS E8
Place of Origin :
Zhejiang, China
MOQ :
2
Price :
Negotiation
Payment Terms :
T/T, Western Union,paypal
Supply Ability :
20000
Delivery Time :
samples in 5 working day
Packaging Details :
2pcs/carton
Application :
off grid Solar System
Rated Power :
4000W
Input voltage :
DC 12V/24V/48V
Output waveform :
Pure Sine Wave
Display :
LCD Display
Efficiency :
95%
Certificate :
CE ROHS E8
Output Voltage :
AC220-240V
USB output current :
5V 2.1A
peak power :
8000W
Description
Product Description

4000 watt Pure Sine Wave Inverter

Pure sine wave inverter is with good wave form, low power distortion and its output wave form is almost the same as the city grid. In fact, the quality of AC power from a good pure sine wave inverter is better than from city grid.

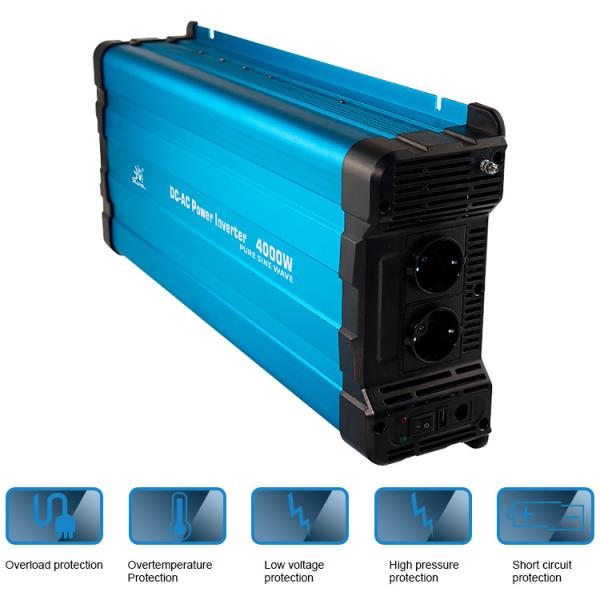

Features:
Pure sine wave output ( THD < 3% )
Input & output completely isolated design
High efficiency93%
Loading and temperature controlled the cooling fan.
Protection: input low voltage alarm & shutdown, overload,short circuit, input over voltage, over temperature, reverse polarity
USB output port 5V2.1A
With Remote controller function /CR80 /CRD80 /CRD99 Remote controller with 5m cable optional,wireless remote controller optional.
LCD display function optional
2 years quality warranty, technical supporting whole life.
pure sine wave inverter specifications:
MODEL
------
------
------
FS4000-212
FS4000-224
------
Output
AC Voltage
------
220/230/240VAC
Rated Power
4000W
Surge Power
Load 120~150%(3min.);8000W(3sec;resistive)
Waveform
Pure Sine Wave(THD<3%)
Frequency
50/60Hz ±0.05%
AC Regulation
------
±10%
Power Factor Allowed
COSθ-90°~COSθ+90°
Standard Receptacles
USA/British/Franch/Schuko /UK/Australia/Universal etc. optional
LED Indicator
Green for power on, red for faulty status
USB port
------
------
------
5V 500mA
5V 500mA
------
LCD display
voltage, power, protection status ( optional)
Remote control function
default
Remote controller
CR80/CRD80 optional
Input
No Load Current Draw
------
------
------
≤1.4A
≤1.0A
------
DC Voltage
------
------
------
12VDC
24VDC
------
Voltage Range
------
------
------
10.5~15VDC
21~30VDC
------
Efficiency(Typ.)
89%~93%
Fuse
------
------
------
40A×14
20A×14
------
Remote Control
Function (optional)
Protection
BAT. Low Alarm
------
------
------
10.5±0.5VDC
21±1.0VDC
------
BAT. Low Shutdown
------
------
------
10±0.5VDC
20±1.0VDC
------
Over Load
Shut down output voltage , restart to recover
Over Voltage
------
------
------
15.5±0.5VDC
31±1.0VDC
------
Over Temperature
Shut down output voltage , recover automatically after temperature goes down
Output Short
Shut down output voltage , restart to recover
DC Input Reverse Polarity
By fuse
Earth Fault
Shut off o/p when the load has electrical leakage
Soft Start
Yes, 3-5 Seconds
Environment
Working Temp.
0~+50℃
Working Humidity
20~90%RH non-condensing
Storage Temp.&Humidity
-30~+70℃,10~95%RH
Safety & EMC
Safety Standards
------
Certified EN 60950-1; 2006+A11: 2009+A1: 2010+A12: 2011+A2: 2013.
Isolation Resistance
I/P-O/P:100M Ohms/500VDC
EMI Conduction &
Radiation
------
Certified EN 62040-2:2006,EN61000-3-2; EN61000-3-3;
EMS Immunity
------
Certified IEC61000-4-3, IEC61000-4-6
E-MARK
------
Certified ECE RIO.05:2014
Others
Dimension(L×W×H)
533.2×261.3×112.7mm
Packing
8.5kg;2pcs/18kg/0.08m³
Cooling
Load control fan or by thermal control fan
Application
Home and Office appliances,Portable Power Equipment,Vehicle,Yacht and Off-Gid Solar
power systems…etc.

Trouble shooting:

1)inverter did not respond: check the connect condition, reconnect the wire check the positiveand negative pole to confirm connected correctly, reconnect properly, replace the fuse.

2)Alarm red with no output. Check the voltage is higher of lower than the inverter’s rated voltage range. Check the temperature if too high, cooling the inverter and put it in a ventilated palce. Check the load power. if too high, please remove part of the load power an restart the inverter. Check the output, eliminate the short circuit condition and restart. Check the wire, if too short, replace it. Open fail, then restart.

About solarway:

Solarway is a Sino-Germany Joint venture which is a professional off-grid power inverter manufacturer in Jiaxing city ,near to Shanghai,China . We are mainly engaged in high-tech DC TO AC inverter, DC TO DC converter, MPPT/PWM sollar controller, solar panel and other solar system accessories, OEM and ODM service are available.All our products we have CE,RoHs,E-mark,ETL certification
We have R & D Center and After-sales Service Center in Beijing, China and Leipzig, Germany to make sure we have new design with patent every year.

FAQ:

Q: I have a 12 volt car battery and then I have a scooter with a six volt. Will the 12 volt Battery Tender Charger charge them both?

A: No, you need a separate 6 volt battery charger for the 6 volt battery.

Q: What type of inverter is needed to power an electronic Yamaha 650 keyboard and two speakers for an outdoor performance?

A: A pure sine wave inverter is needed and the size of the inverter will depend on the amps and wattage being used.

Q: Can you accept OEM orders?

A: Yes, OEM/ODM orders are highly welcome.
