3500w Pure Sine Wave FS Power Inverter For Home 24V To 110V 230V 50Hz / 60Hz
3500w Pure Sine Wave FS Power Inverter For Home 24V To 110V 230V 50Hz / 60Hz
3500w Pure Sine Wave FS Power Inverter For Home 24V To 110V 230V 50Hz / 60Hz
3500w Pure Sine Wave FS Power Inverter For Home 24V To 110V 230V 50Hz / 60Hz
3500w Pure Sine Wave FS Power Inverter For Home 24V To 110V 230V 50Hz / 60Hz
3500w Pure Sine Wave FS Power Inverter For Home 24V To 110V 230V 50Hz / 60Hz
3500w Pure Sine Wave FS Power Inverter For Home 24V To 110V 230V 50Hz / 60Hz
3500w Pure Sine Wave FS Power Inverter For Home 24V To 110V 230V 50Hz / 60Hz
Specifications
Brand Name :
Solarvertech
Model Number :
FS3500D
Certification :
CE,Rohs,Emark,UL,ISO9001
Place of Origin :
Jiaxing,Zhejiang,China
MOQ :
2 pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union,paypal
Supply Ability :
10000
Delivery Time :
samples in 5 working day
Packaging Details :
2pcs/carton
Output waveform :
pure sine wave
Output frequency :
50Hz or 60Hz
Input voltage :
12V/24V/48V
Output voltage :
AC100-127V / 220-240V
Warranty :
2 years
Peak power :
2 Times
Efficiency :
95%
Description

Product Description

3500w Dc To Ac Pure Sine Wave Power Inverter For Home 24V To 110V 230V 50Hz/60Hz

Description:

Power inverter is a kind of products which change the DC electricity to AC electricity. It has been widely used in cars, steamboats, mobile offering post and telecommunications, public security, emergency and other field.

This power inverter has adopted the international lead circuit design, with the advantage of small size, light, stable, and high conversion efficiency. It has five kind of protect function such as: input under voltage protection, input over voltage protection, overload protection, over temperature protection, output short circuit protection.

Features:
Pure sine wave output ( THD < 3% )
Input & output completely isolated design
High efficiency93%
Loading and temperature controlled the cooling fan.
Protection: input low voltage alarm & shutdown, overload,short circuit, input over voltage, over temperature, reverse polarity
USB output port 5V2.1A
With Remote controller function /CR80 /CRD80 /CRD99 Remote controller with 5m cable optional,wireless remote controller optional.
LCD display function optional
2 years quality warranty, technical supporting whole life.

pure sine wave inverter specifications:

MODEL
FS3500D-112
FS3500D-124
FS3500D-148
FS3500D-212
FS3500D-224
FS3500D-248
Output
AC Voltage
100/110/120VAC
220/230/240VAC
Rated Power
3500W
Surge Power
Load 120~150%;7000W(20ms;resistive)
Waveform
Pure Sine Wave
USB port
5V 2.1A
5V 2.1A
------
5V 2.1A
5V 2.1A
------
Input
DC Voltage
12VDC
24VDC
48VDC
12VDC
24VDC
48VDC
Voltage Range
10.5~15VDC
21~30VDC
42~60VDC
10.5~15VDC
21~30VDC
42~60VDC
Efficiency(Typ.)
>90%
Remote Control
Function(optional)
Protection
BAT.Low Alarm
10.5±0.5VDC
21±1.0VDC
42±2.0VDC
10.5±0.5VDC
21±1.0VDC
42±2.0VDC
BAT.LOW Shutdown
10±0.5VDC
20±1.0VDC
40±2.0VDC
10±0.5VDC
20±1.0VDC
40±2.0VDC
Over Load
Shut down output voltage, restart to recover
Over Voltage
15.5±0.5VDC
31±1.0VDC
62±2.0VDC
15.5±0.5VDC
31±1.0VDC
62±2.0VDC
Over Temperature
Shut down output voltage, recover automatically after temperature goes down
Output Short
Shut down output voltage, restart to recover
DC Input Reverse Polarity
By fuse
Earth Fault
Shut off o/p when the load has electrical leakage
Soft Start
Yes,3~5 Seconds

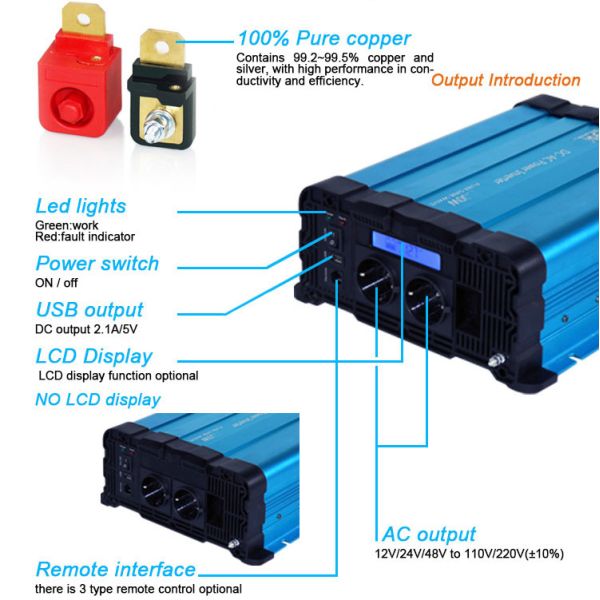

Product picures:

3500w Pure Sine Wave FS Power Inverter For Home 24V To 110V 230V 50Hz / 60Hz3500w Pure Sine Wave FS Power Inverter For Home 24V To 110V 230V 50Hz / 60Hz3500w Pure Sine Wave FS Power Inverter For Home 24V To 110V 230V 50Hz / 60Hz3500w Pure Sine Wave FS Power Inverter For Home 24V To 110V 230V 50Hz / 60Hz3500w Pure Sine Wave FS Power Inverter For Home 24V To 110V 230V 50Hz / 60Hz

3500w Pure Sine Wave FS Power Inverter For Home 24V To 110V 230V 50Hz / 60Hz3500w Pure Sine Wave FS Power Inverter For Home 24V To 110V 230V 50Hz / 60Hz

FAQ:

1.Q:Do you have your own factory?

A:Yes, we are professional manufacturer mainly in power inverter for many years. Our facory is located in China. We are A Sino-Germany joinit venture. We have product developing center and after-sale center in Germany.
2.Q:What kind of certification you have?
A:ISO9001,CE,ROHS and so on.

Our products could pass different labor testing according to different countries' requirements.

3.Q:Where we can use the system?

A:You can use the system for home, for power station, for lighting system and so on, wnere the grid power is expensive.

4.Q:How about your warranty?

A: We provide 1.5 and 3 years warranty for different products and whole life technical support.

5.Q:How to do the installation?

A: This portable solar system installation is very simple, only need to connect solar panel with controller, and push ON/OFF button, then it will start to work.

6.Q:24-hours online service

A: Please feel free to contact us. Our sales team will provide you with 24 hours better pre-sale.

About solarway:
Jiaxing Solarway New Energy Company is a Sino-Germany Joint venture which is a professional off-grid power inverter manufacturer in Jiaxing city ,near to Shanghai,China . We are mainly engaged in high-tech DC TO AC inverter, DC TO DC converter, MPPT/PWM
sollar controller, solar panel and other solar system accessories, OEM and ODM service are available.All our products we have CE,RoHs,E-mark certification .We have R & D Center and After-sales Service Center in Beijing, China and Leipzig, Germany to make sure we have new design with patent every year
