Solarvertech 12V Pure Sine Wave Power Inverter Single Output 2500 Watt
Solarvertech 12V Pure Sine Wave Power Inverter Single Output 2500 Watt
Solarvertech 12V Pure Sine Wave Power Inverter Single Output 2500 Watt
Solarvertech 12V Pure Sine Wave Power Inverter Single Output 2500 Watt
Solarvertech 12V Pure Sine Wave Power Inverter Single Output 2500 Watt
Solarvertech 12V Pure Sine Wave Power Inverter Single Output 2500 Watt
Solarvertech 12V Pure Sine Wave Power Inverter Single Output 2500 Watt
Solarvertech 12V Pure Sine Wave Power Inverter Single Output 2500 Watt
Specifications
Brand Name :
solarvertech
Model Number :
FS2500DR
Certification :
CE,Rohs,Emark
Place of Origin :
China
MOQ :
10
Price :
negotiation
Supply Ability :
10000
Delivery Time :
samples in 5 working day
Packaging Details :
2pcs/carton
input :
DC 12V 24V 48V
Output frequency :
50Hz/60Hz
Warranty :
2 years
Efficiency :
93%
Output type :
Single
Product name :
Pure Sine Wave Solar Power Inverter
Display :
LCD
Application :
Solar System,AC Asynchronous Motor,home/solar system,Home Applicances,power station
Description

2500w Pure Sine Wave Inverter

Description:

Pure sine wave inverter is with good wave form, low power distortion and its output wave form is almost the same as the city grid. In fact, the quality of AC power from a good pure sine wave inverter is better than from city grid.

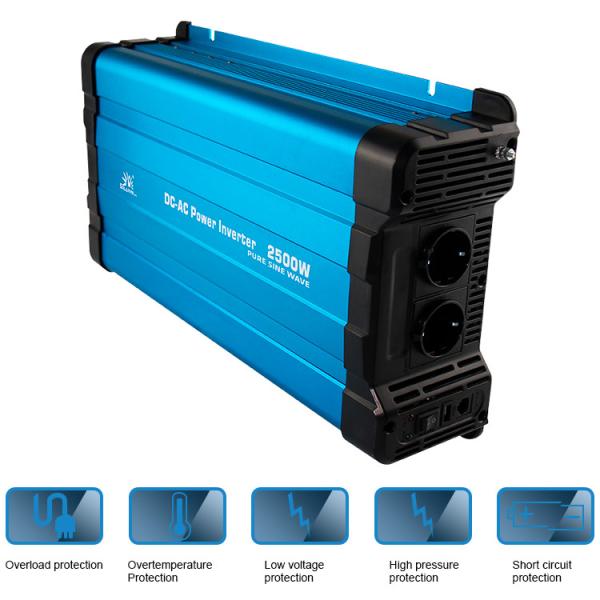

Protection Features:

1. Low voltage protection: When the battery in low voltage condition, shut down output, buzzer light at the same time wore.

2. Over-voltage protection: when the battery voltage is higher than the range of the machine rated voltage, the machine shut down output, buzzer and light work.

3. Overload: when the load power is greater than the machine rated power, the machine shut output, buzzer and light word.

Thermal protection: when the internal temperature is above about 75℃, the machine shut down output, buzzer and light at the same time work.

4. Short circuit protection: output short circuit, the machine shut down output, buzzer an light at the same time work.

5. Anti-Anti-connect protection: when input positive and negative poles reversed the diode anti-anti-burn fuse to protect the inverter, need to replace the fuse MOS FET anti-anti-connect inverter does not work: can be word after reversed. when the inverter temperature reach about 45℃, the cooling fan start working force air cooling.

pure sine wave inverter specifications:

MODEL
FS2500-112

FS2500-124

FS2500-148
FS2500-212

FS2500-224

FS2500-248
Output
AC Voltage
100/110/120VAC
220/230/240VAC
Rated Power
2500W
Surge Power
Load 120~150%(3min.);5000W(3sec; resistive)
Waveform
Pure Sine Wave(THD<3%)
Frequency
50/60Hz ±0.05%
AC Regulation
±5%
±10%
Power Factor Allowed
COSθ-90°~COSθ+90°
Standard Receptacles
USA/British/Franch/Schuko /UK/Australia/Universal etc. optional
LED Indicator
Green for power on, red for faulty status
USB port
5V 2.1A
5V 2.1A
------
5V 2.1A
5V 2.1A
------
LCD display
voltage, power, protection status ( optional)
Remote control function
default
Remote controller
CR80/CRD80/CRD99 optional
Input
No Load Current Draw
≤1.1A
≤0.80A
≤0.70A
≤1.1A
≤0.80A
≤0.70A
DC Voltage
12VDC
24VDC
48VDC
12VDC
24VDC
48VDC
Voltage Range
10.5~15VDC
21~30VDC
42~60VDC
10.5~15VDC
21~30VDC
42~60VDC
Efficiency(Typ.)
89%~93%
Fuse
40A×6
20A×6
10A×6
40A×6
20A×6
10A×6
Remote Control
Function (optional)
Protection
BAT. Low Alarm
10.5±0.5VDC
21±1.0VDC
42±2.0VDC
10.5±0.5VDC
21±1.0VDC
42±2.0VDC
BAT. Low Shutdown
10±0.5VDC
20±1.0VDC
40±2.0VDC
10±0.5VDC
20±1.0VDC
40±2.0VDC
Over Load
Shut down output voltage , restart to recover
Over Voltage
15.5±0.5VDC
31±1.0VDC
62±2.0VDC
15.5±0.5VDC
31±1.0VDC
62±2.0VDC
Over Temperature
Shut down output voltage , recover automatically after temperature goes down
Output Short
Shut down output voltage , restart to recover
DC Input Reverse Polarity
By fuse
Earth Fault
Shut off o/p when the load has electrical leakage
Soft Start
Yes, 3-5 Seconds
Environment
Working Temp.
0~+50℃
Working Humidity
20~90%RH non-condensing
Storage Temp.&Humidity
-30~+70℃,10~95%RH
Safety & EMC
Safety Standards
Certified UL 458(only for "GFCI" receptacles)
Certified EN 60950-1; 2006+A11: 2009+A1: 2010+A12: 2011+A2: 2013.
Isolation Resistance
I/P-O/P:100M Ohms/500VDC
EMI Conduction &
Radiation
Certified FCC class A
Certified EN 62040-2:2006,EN61000-3-2; EN61000-3-3;
EMS Immunity
------
Certified IEC61000-4-3, IEC61000-4-6
E-MARK
------
Certified ECE RIO.05:2014

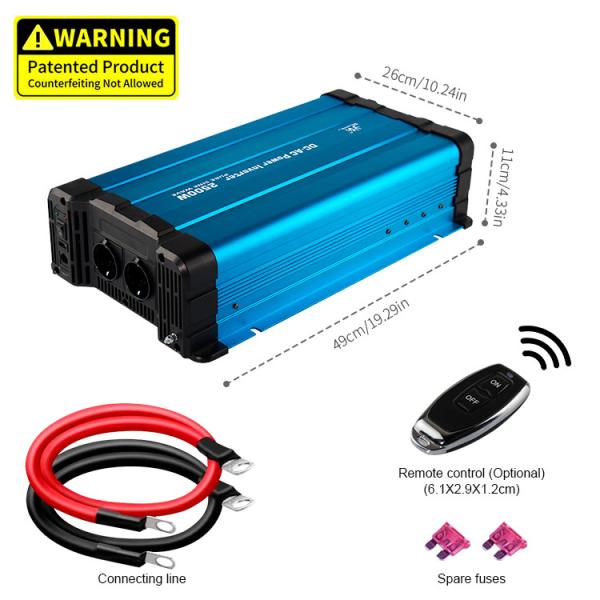

Remote controller:

Solarvertech 12V Pure Sine Wave Power Inverter Single Output 2500 Watt

About solarway:

Jiaxing Solarway New Energy Company is a Sino-Germany Joint venture,power inverter has been improved more scientifically based on the traditional craft. Aluminum shell has improved its sturdiness life. And it ensures the products' performance once again. Solarvertech Pure sine wave inverter has been improved more scientifically based on the traditional craft. Aluminum shell has improved its sturdiness life. And it ensures the products' performance once again. These features make it can meet all AC load application requirements, includes TV, computer, lights, refrigerator, air condition and generator and so on.
