Box Column Ribs Pneumatic Press Assembly Plate Sheet for Preparing Electro-Slag Welding Hole

Quick Details

• Special machine for the baffle assembling and welding in the middle of box-beam;
• Overturning transmission process is motor driving worm gear reducer to overturn the worktable in±180°;
• Overturning motor is magnetic brake motor which can stop at any position and self-locking during overturning processes;
• Overturning control adopts foot switch;

1. Introduction

This is the special machine for the baffle assembling and welding in the middle of box-beam. The baffle assembly adopts gas cylinder to clamp and positioning, and then tack welding or full welding. It can ensure the accurate positioning of box-beam baffle assembly and prevent the box-beam deformation during welding.

2. Main Parameters

• Overturning transmission process is motor driving worm gear reducer to overturn the worktable in±180°;
• Overturning motor is magnetic brake motor which can stop at any position and self-locking during overturning processes.
• Overturning control adopts foot switch.
• There is positioning device on worktable.
• All motion parts have lubrication system;
• Main electric elements are ABB/Siemens brands;
• Standard color:

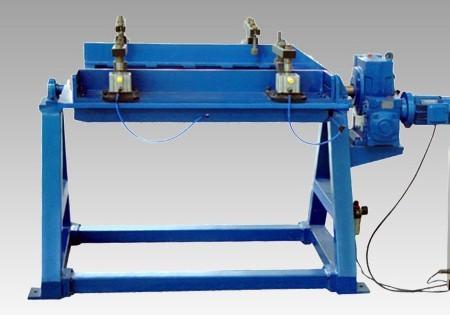

5. Reference photo

6. Comparative advantage

• ISO9000&CE certified;
• International warranty;
• Punctual delivery;
• Professional and experienced engineer team to ensure the advanced design about structure and electric;
• Experienced and skilled workers to care for each work flow from material cutting, welding, grinding to final assembly and testing to ensure high machine quality;
• Professional and experienced after sale service team to guarantee quick and satisfied installation, commissioning or service;
• Optimum materials and outsourcings to ensure the best performance;
• Commissioning and testing before delivery;
• Factory inspection is encouraged;
