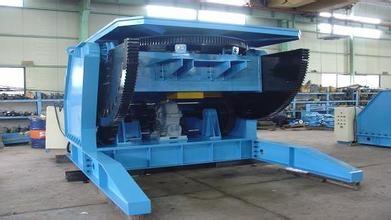

Loading Capacity 30 Tons Heavy Duty Welding Positioner Square Workingtable Dual Sides Drive Tilting
Loading Capacity 30 Tons Heavy Duty Welding Positioner Square Workingtable Dual Sides Drive Tilting
Specifications
Brand Name :
LUOLE
Model Number :
HTWP
Certification :
CE
Place of Origin :
WUXI
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
50 sets/month
Delivery Time :
20 days
Packaging Details :
Bubble
Loading Capacity :
30 Tons
Table Size :
2500 x 2500 mm
Overturning Type :
Motoriezd Drive VFD Control Speed
Tilting Model :
Dual Gear Drive
Description

Loading Capacity 30 Tons Heavy Duty Welding Positioner Square Workingtable with Dual Sides Gear Drive Tilting

Descrition of Welding Positioners

1. The worktable could be rotating ( in 360° ) or tilting (in 0 - 90° ) allowing work piece to be welded at the best position.
2. Variable Frequency control (VFD) speed by rotating and motor-driven speed regulation by tilting from which customers can choose in line with operational requirements.
3. Electric control system composed of electric cabinet and manual control panel, easy to operate.
4. Worktable is manufactured with six M30T bolt grooves used to clamp and position the work pieces.
5. Several concentric grooves are processed onto the surface of the worktable to help position the work piece at the center.

General drawings

Loading Capacity 30 Tons Heavy Duty Welding Positioner Square Workingtable Dual Sides Drive Tilting

Technical parameters of ZHB Series

Model

ZHB - 50

ZHB-100

ZHB-150

ZHB-200

ZHB-300

Max Capacity

5 T

10 T

15 T

20 T

30 T

Table Diameter (mm)

1500

2000

2200

2500

3000

Rotation Power (kw)

3

4

7.5

Rotation Speed (rpm)

0.05 - 0.5

0.04-0.4

Tilting Power (kw)

3

4

5.5

7.5

11

Tilting Angle (°)

0 - 90

Tilting Speed (kw)

0.14

0.1

Option:

□ Foot Pedal □ Wireless Control □ Tilting Angle 120°

Competitive Advantage

1. All our equipments have passed CE test and get the CE certificates.

2. PLC control is available to control the tilting angel.

3. We can design the special equipments according to your request.
4. We provide 12month guaranty period for the whole machine quality.

Chucks Clamping for reference

1. We have 3 jaws or 4 jaws chucks for chosen, and pipe diameter from 50 mm to 1200 mm.

2. Special clamps are available,but we have to design according to your work piece detail drawings.

3. Please send us your detail work piece drawings for special design clamps.

Certificate and Company Work Shop

1. All our equipments have passed CE test and get the CE certificates. So it's ok to export the European.

2. For Middest East customers,like Sandi Arabia. We also can supply you the CO and Original Invoice.

3. Please remind us If you want door to door installation service.

4. Door to door service is available.

JUST CONTACT US FOR DETAIL QUOTATION.
