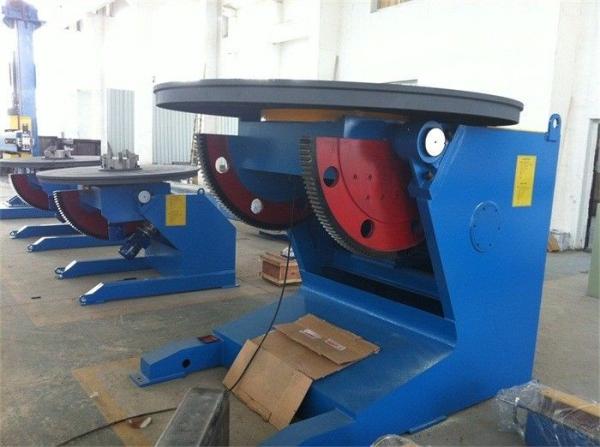

Support Capacity 3000Kg Welding Positioner Use French Schneider VFD Control Workingtable Revolving Speed
Support Capacity 3000Kg Welding Positioner Use French Schneider VFD Control Workingtable Revolving Speed
Support Capacity 3000Kg Welding Positioner Use French Schneider VFD Control Workingtable Revolving Speed
Support Capacity 3000Kg Welding Positioner Use French Schneider VFD Control Workingtable Revolving Speed
Specifications
Brand Name :
LUOLE
Model Number :
HTWP
Certification :
CE
Place of Origin :
WUXI
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
50 sets/month
Delivery Time :
20 days
Packaging Details :
Bubble
Loading Capacity :
3 Tons
Table Size :
diameter 1400 mm
Revolving Type :
Motoriezd Drive VFD Control Speed
Tilting Model :
Dual Gear Drive
Description

Support Capacity 3000Kg Welding Positioner Use French Schneider VFD Control Workingtable Revolving Speed ​

Machine Descrition

1. It has powered tilting and rotating, making the work-piece at ideal position .

2. Worktable rotation is controlled by step-less frequency conversion to achieve a best welding speed .
3. Rotate unit is driven by motor. It has a precise speed-adjusting and reliable position.

4. More than 3 sets order together, you will get more discount.

5. Customers just wait at your work shop if want door to door delivery.

6. Delivery damage risk is ours.If broken we will send you a new one free.

Detail parameters

Model

WP-03

WP-06

WP-12

WP-30

WP-50

Max Capacity

300 kg

600 kg

1.2 T

3 T

5 T

Table Diameter (mm)

600

800

1000

1400

1500

Rotation Power (kw)

0.37

0.75

1.1

1.5

3

Rotation Speed (rpm)

0.1-1

0.09-0.9

0.05-0.5

Tilting Power (kw)

/

0.75

1.5

2.2

3

Tilting Angle (°)

0-90

0-90

0-90

0-90

0-90

Tilting Speed (kw)

Manual

1.1

0.67

0.23

0.14

Option:

□ Foot Pedal □ Wireless Control □ Tilting Angle 120°

Competitive Advantage

1. Supply door to door delivery service.
2. CE certificates supported.

3. One year quality warranty.
4. Large quantity will get OEM service.

Clamps Way

1. We have 3 jaws or 4 jaws chucks for chosen.

2. Special clamps are available,but please supply us your work piece detail drawings.

3. If your work piece is too long or not normal shape, please advise us for more suggestion.

After sales service

1. All our equipments have passed CE test and get the CE certificates. So it's ok to export the European.

2. For Middest East customers,like Sandi Arabia. We also can supply you the CO and Original Invoice.

3. Please remind us If you want door to door installation service.

4. Door to door delivery way , you do not need to do anything.
