Digital Display Rotary Automatic Welding Positioner Loading 1300 IBS Welght CE Standard
Digital Display Rotary Automatic Welding Positioner Loading 1300 IBS Welght CE Standard
Digital Display Rotary Automatic Welding Positioner Loading 1300 IBS Welght CE Standard
Digital Display Rotary Automatic Welding Positioner Loading 1300 IBS Welght CE Standard
Digital Display Rotary Automatic Welding Positioner Loading 1300 IBS Welght CE Standard
Digital Display Rotary Automatic Welding Positioner Loading 1300 IBS Welght CE Standard
Specifications
Brand Name :
LUOLE
Model Number :
ZHB06 WP06
Certification :
CE
Place of Origin :
WUXI
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
50 sets/month
Delivery Time :
20 days
Packaging Details :
Bubble
Loading Capacity :
1300 Ibs
Table Size :
Diameter 800 mm
Tilting Angle :
0 -120 °
Rolling Speed :
Digital Readout / Speed Adjustable 0.1-1rpm
Max eccentricity :
150 mm
Max Gravity :
200 mm
Tilting Speed :
0.5 rpm
Table Vertical :
Revolving Diameter 1500 mm
Description

Digital Display Rotary Automatic Welding Positioners Loading 1300 IBS Welght

Brife Info

1. Pipe Diameter : 50 - 300 mm

2. Voltage : 110V - 600V 50 / 60Hz all available

3. Foot Pedal Tilting And Rotation Control

4. Package : Wooden Case

5. Delivery Time : 25 Days

Description

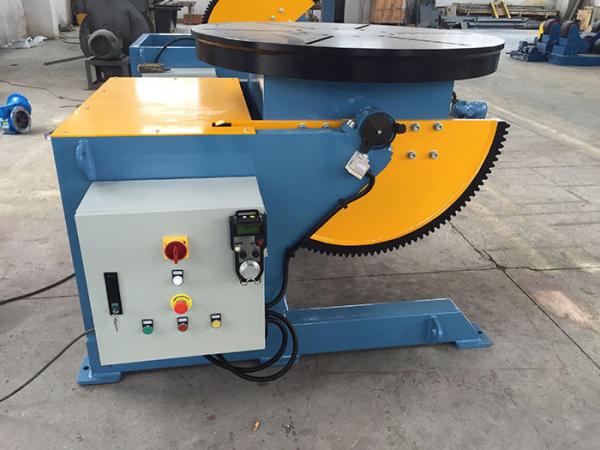

1. The worktable could be rotating 360°and tilting 90°to allow work piece to be welded at the best position.
2. Variable Frequency control (VFD) speed by rotating and motor-driven speed regulation by tilting from which customers can choose in line with operational requirements.

3. Can help for all types of manual welding and auto-welding.

4. Controlled by step-less frequency conversion.

5. If work piece is longer or irregular shape, larger specification is more suitable due to eccentricity and gravity center.

Digital Display Rotary Automatic Welding Positioner Loading 1300 IBS Welght CE Standard

Specifications

Model

ZHB-03

ZHB-06

ZHB-12

ZHB-30

ZHB-50

Max Capacity

300 kg

600 kg

1.2 T

3 T

5 T

Table Diameter (mm)

600

1000

1200

1400

1500

Rotation Power (kw)

0.37

0.75

1.1

1.5

3

Rotation Speed (rpm)

0.1-1

0.09-0.9

0.05-0.5

Tilting Power (kw)

/

0.75

1.5

2.2

3

Tilting Angle (°)

0-90

0-90

0-90

0-90

0-90

Tilting Speed (kw)

Manual

1.1

0.67

0.23

0.14

Option:

□ Foot Pedal □ Wireless Control □ Tilting Angle 120°
Marks: Irregularity shape work piece should choose the bigger model.

Competitive Advantage

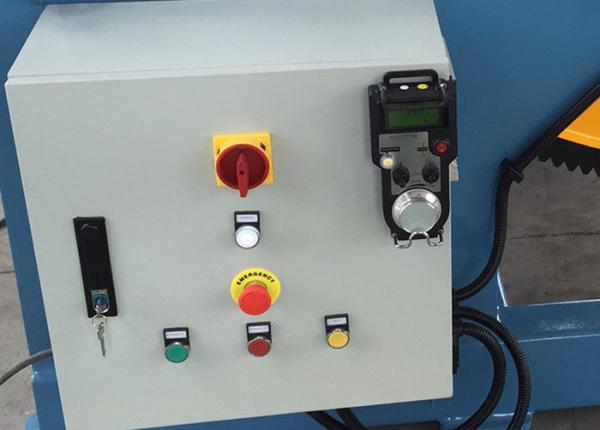

1. It’s easy to control with electric cabinet and hand control panel

2. Sand blasting treatment to main welding parts before painting
3. All motion parts have lubrication system
4. Main electric elements are ABB / Siemens brands

Clamps for reference

1. We have 3 jaws or 4 jaws chucks for chosen, and pipe diameter from 50 mm to 1200 mm.

2. Special clamps are available,but we have to design according to your work piece detail drawings.

Digital Display Rotary Automatic Welding Positioner Loading 1300 IBS Welght CE Standard

Certificate and Company Work Shop

1. All our equipments have passed CE test and get the CE certificates. So it's ok to export the European.

2. For Middest East customers,like Sandi Arabia. We also can supply you the CO and Original Invoice.

3. If possible, please send us your work piece general drawings when you order the positioner.

4. You are welcome to visit our company.

Door to door delivery is available.

SO JUST SEND YOUR INQUIRY NOW.
