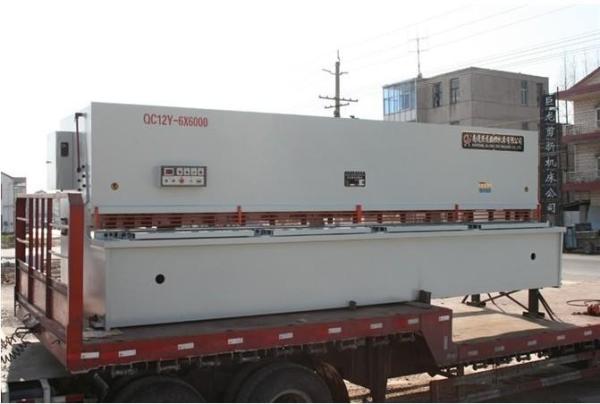

QC12Y Swing Beam Sheet Metal Shearing Digital Readout Hydraulic Shearing Machine
QC12Y Swing Beam Sheet Metal Shearing Digital Readout Hydraulic Shearing Machine
QC12Y Swing Beam Sheet Metal Shearing Digital Readout Hydraulic Shearing Machine
QC12Y Swing Beam Sheet Metal Shearing Digital Readout Hydraulic Shearing Machine
QC12Y Swing Beam Sheet Metal Shearing Digital Readout Hydraulic Shearing Machine
QC12Y Swing Beam Sheet Metal Shearing Digital Readout Hydraulic Shearing Machine
Specifications
Brand Name :
Luole
Model Number :
QC12Y
Certification :
CE/ UL
Place of Origin :
China
MOQ :
1
Price :
Discuss in letters
Payment Terms :
T/T
Supply Ability :
30 sets/month
Delivery Time :
30 days
Packaging Details :
Veneer box
Shearing force :
Hydraulic
Shearing Read :
Digital Read
Shearing type :
Swing
Supporting Company :
Siemens ,Schneider , Bosch-Rexroth
Description

QC12Y Hydraulic Swing Plate Shearing and Cutting Machine

Main Feature:

(1) Steel-welded construction, vibration to eliminate stress, with high strength and good rigidity
(2) Hydraulic top-drive, steadiness and reliability
(3) With adopts quick manual adjust device, cutting stroke can adjust to be suitable shearing short sheet
(4) With motor-driven back gauge and counter device
(5) With CE standard back-safety curtain, standard front support sheet frame
(6) Main electric components are from Siemens / Schneider brand
(7) Oil seals are imported from Japan.

Main Specification:

Parameter Shearing Thickness(mm) Shearing Width(mm) Shearing Angle Number of stroke Backgauge (mm) Motor (kw) Net W. (kg) Overall Dimensions(mm)
4*2000 4 2000 1° 30' 600 4 3500 2550*1430*1560
4*2500 4 2500 1° 30' 600 4 4000 3100*1430*1560
4*3200 4 3200 1° 30' 600 5.5 5300 3840*1680*1670
6*2500 6 2500 1° 30' 18 20-600 7.5 6000 3040*1616*1620
6*3200 6 3200 1° 30' 14 20-600 7.5 7200 3840*1610*1620
6*4000 6 4000 1° 30' 10 20-600 7.5 10000 4640*1705*1700
6*6000 6 6000 1° 14' 10 600 18.5 17000 6600*1950*1980
8*2500 8 2500 1° 30' 14 20-600 11 6.500 3240*1610*1620
8*3200 8 3200 1° 30' 10 20-600 11 7.800 4010*1610*1620
8*4000 8 4000 1° 30' 8 20-600 11 11000 4680*1705*1700
8*6000 8 6000 1° 30' 8 20-800 18.5 19000 6880*2210*2890
10*2500 10 2500 1° 48' 12 20-600 15 8000 3350*2050*1950
10*3200 10 3200 1° 48' 10 20-600 15 10000 4050*2050*1950
10*4000 10 4000 1° 30' 8 10-800 18.5 12500 4850*2300*2200
10*6000 10 6000 1° 30' 8 20-1000 30 20000 7020*2580*3280
12*2500 12 2500 1° 30' 12 10-800 18.5 11000 3320*2050*2230
12*3200 12 3200 1° 30' 10 10-800 18.5 12500 4020*2050*2230
12*4000 12 4000 2° 8 10-800 22 15000 4850*2400*2200
12*6000 12 6000 1° 30' 6 20-1000 37 23000 7020*2680*3380
12*8000 12 8000 1° 30' 4 20-1000 45 33000 9020*2680*3380
16*2500 16 2500 2° 30' 8 10-800 18.5 15000 4850*2400*2200
16*3200 16 3200 2 ° 30' 7 10- 800 22 18000 4100*2060*2010
16*4000 16 4000 2° 6 10-800 30 23000 4900*2400*2250
20*2500 20 2500 2° 6 10-800 37 16000 3440*2088*2570
20*3200 20 3200 2° 5 10-800 37 23000 4100*2350*2710
20*4000 20 4000 2° 30' 4 10-800 37 30000 4920*2400*2790
25*2500 25 2500 3° 5 40-1000 45 19000 3480*2410*2690
25*3200 25 3200 3° 5 40-1000 45 26000 4180*2410*2690
25*4000 25 4000 3° 5 40-1000 45 33000 4985*2410*2690

QC12Y Swing Beam Sheet Metal Shearing Digital Readout Hydraulic Shearing Machine

Attention Please

1. Please contact us if you need any help for your customs clearance.

2. Please let us know if any part broken during the delivery, we will send a new one freely at once.

3. Please send us the working pictures after installation. We will give you some suggestion if needed.

4. You also can get the door to door price , then you do not need to pay the tax any more.

Please send us your inquiry now !
