LH Series Column and Boom Welding Manipulator With Safety Ladder in the Wind Tower Productions Line
LH Series Column and Boom Welding Manipulator With Safety Ladder in the Wind Tower Productions Line
LH Series Column and Boom Welding Manipulator With Safety Ladder in the Wind Tower Productions Line
LH Series Column and Boom Welding Manipulator With Safety Ladder in the Wind Tower Productions Line
LH Series Column and Boom Welding Manipulator With Safety Ladder in the Wind Tower Productions Line
LH Series Column and Boom Welding Manipulator With Safety Ladder in the Wind Tower Productions Line
Specifications
Brand Name :
LUOLE
Model Number :
WM
Certification :
CE UL
Place of Origin :
SHANGHAI
MOQ :
1
Price :
Discuss in letters
Payment Terms :
T/T
Supply Ability :
50 Sets/month
Delivery Time :
35 Days
Packaging Details :
Mainframe naked, spare parts packed in case
Application :
Steel Tube Wind Tower Production Line
Function :
Manipulate Welding Machine
Safety Ladder :
yes
Operator Chair At Boom End: :
yes
Description

Welding Manipulator With Safety Ladder For Steel Tube Tower Inner Seam Welding

Brief introduction:

Welding manipulator is integrate welding system, working with welding rotator or welding postioner, for circular job seam automatic welding.

Welding manipulator feature:

  • Designed and robustly build to withstand rugged work environments.
  • Smooth 360 degree lockable rotation.
  • All vertical and horizontal guidings are precisely machined for smooth movement.
  • Worm gearbox for vertical travel via AC motor, complete with brake for added safety.
  • Anti-fall device and limit switches for all motions.

Technical parameters :

Model LH4040 LH5050 LH6060 LH8080
Structure: Travel & Rotation
Boom horizontal stroke : mm 4000 5000 6000 8000
Boom vertical stroke : mm 4000 5000 6000 8000
Boom horizontal speed :mm/min 150-1500 150-1500 150-1500 150-1500
Boom vertical speed : mm/min 1000 1000 1000 1000
Boom horizontal motor power :kW 0.55 0.55 0.55 0.75
Boom vertical motor power :kW 2.2 3 3 4
Column rotating angle ±180° ±180° ±180° ±180°
Column rotating speed- Optional :rpm 0.75 0.75 0.75 0.75
Column rotating motor-Optional : kW 0.75 0.75 0.75 1.1
Column rotating locking method By manual By manual By manual By manual
Boom end max. loading: kg 300 300 300 300
Trolley traveling speed:mm/min 3000n 3000 3000 3000
Rail inner span(mm):mm G-G2000 G-G2000 G-G2000 G-G3000

Detail description of welding manipulator:

  • Welding manipulator is used to locate a weld head to a desired position for welding in a stable and secure manner.
  • For C.S seam, the welding head keep still while the job rotator by working speed, high quality welding results is produced.
  • For L.S seam, the welding head would moving with working speed in a stable way with a high quality welding results.
  • Manual or powered mobile sub-based cars can be included for varying length weldments and procedures.
  • Welding manipulator can be used on a wide variety of parts and part shapes.

Benefits over welding the part manually, including:

  • Robust structure boom holding weld head over welding seam in a stable manner during weld procedure. It is able to achieve the consistent welding results.
  • With movable trolley, one set welding manipulator can work with multi welding station. Minimize the idler time of welding head during job preparation.
  • With special design, one boom is able to install two welding head. By two welding head working simultaneously, the working efficiency would be double with normal welding mode.
  • Relay on flexible co-work with different working station, it increases arc-on time and overall productivity.
  • Meanwhile, it reduced operator fatigue & consumable costs.
  • Rework time will be reduced and part scrap will be cut.
  • These benefits greatly reduce the time to prepare a part for welding and the time to finish a part after welding.

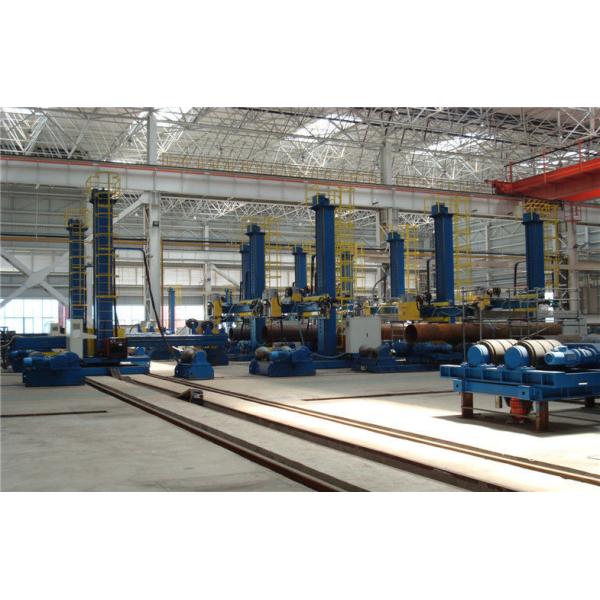

Photos of Welding Manipulator
