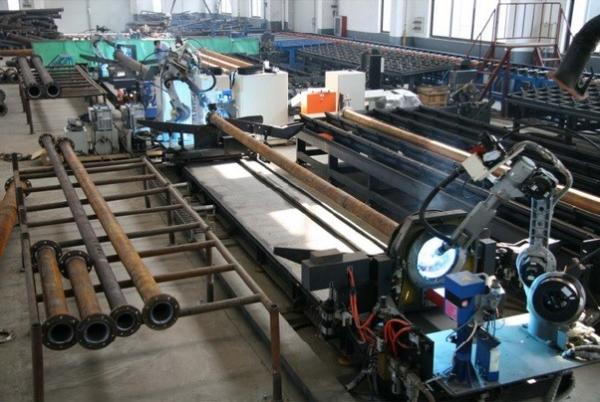

Wind Tower Productions Line Welding Rotator for Tower Growing Up Wheels Center Micro adjusted by Hydraulic Cylinder

The walking welding roller frame is mainly composed of an active walking roller frame and a passive walking roller frame. The active walking roller frame is mainly composed of a speed reducer, a base, a roller, a roller shaft, an electric drive walking mechanism and the like.
The active roller frame drives two speed reducers through two AC variable frequency brake motors, and the output end of the speed reducer is coaxial with the roller shaft (the output shaft of the speed reducer is a hollow shaft) so as to directly drive the roller. Drive reducer adopts cycloid reducer + gear reducer structure to ensure that the workpiece can be driven to run. For the long tower length, with a certain degree of taper characteristics, the transmission system to increase processing, drive capacity reached 90T, thereby smoothing the workpiece rotation and increase the driving capacity of the workpiece processing quality play a powerful Protection.
Lubrication of the reducer is fully enclosed in oil-immersed type, which eliminates weld splashing, slag, dust and foreign matter intrusion, resulting in maintenance-free and long-life characteristics.
Roller adopts imported rubber wheel, and the two sides are additionally equipped with metal clip structure. The rubber wheel improves the smoothness and driving ability of the transmission. The metal clip can effectively protect the rubber wheel and improve the service life of the rubber wheel. The rubber wheel uses imported rubber wheels. The rubber wheel has high strength and durability. The electric drive traveling mechanism is composed of a walking wheel, a motor-reducer and the like. The driving wheel is rotated by the motor-reducer driving so that the roller carriage moves on the guide rail.

Delivery Package Range

1. One set powered / One set idler / Electric control system

2. Voltage : 380V 50Hz 3P

3. Control Way : Remote Control Box / Foot Pedal

4. Package Way : Wooden Case / Steel frame

5. Working Manual

Technical Data

Applications

1. The machine consists of 1 set of driving roller, 1 set of idler roller and electric control system.
2. The drive roller and idle roll must be put the foundation in same horizon. Two sets roller must be parallel to put, the ground horizontal plane must even. If the long-term usage base needs to be fixed.
3. Ensure that there is ample space for movement of the equipment, work piece as well as the operator.
4. The worm wheel decelerator of the machine adopts lubricating oil, other gears and bearings adopt grease lubrication, periodic change. Note: the lubricating oil isn't oiled into the machine at shipping, the users must oil assigned lubricating oil, and then begin to use.
5. Connect the 3-phase power supply only after all the mechanical and electrical installations have completed. Ensure that the phases are correct, if not the unit will not power up.

Details Control system and Brand

1. Inverter is from Taida/Yaskawa Brand

2. Motor is from CE Invertek Brand

3. Reducer is from Cable. Made in China.

4. Electric system is from Schneider
