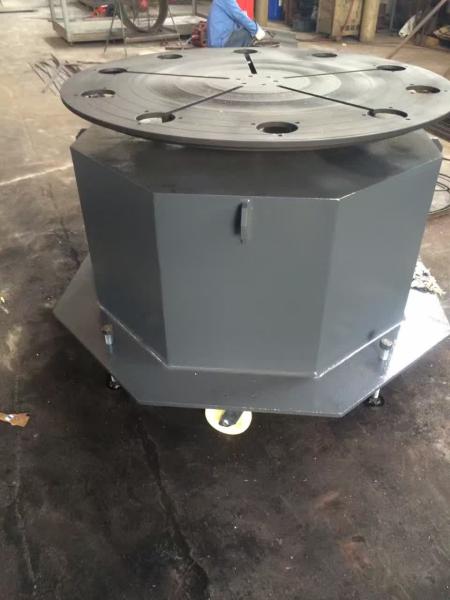

Pipe Revolving Table For Welding For Round Seam Welding Rotary Table With Round Table Supporting 15 Tons
Pipe Revolving Table For Welding For Round Seam Welding Rotary Table With Round Table Supporting 15 Tons
Pipe Revolving Table For Welding For Round Seam Welding Rotary Table With Round Table Supporting 15 Tons
Pipe Revolving Table For Welding For Round Seam Welding Rotary Table With Round Table Supporting 15 Tons
Specifications
Brand Name :
Luole
Model Number :
HB15
Certification :
CE/UL
Place of Origin :
WUXI
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
50 sets/month
Delivery Time :
15 Working days
Packaging Details :
Frame
Max loading :
15 Tons
Table Diameter :
2200 mm
Rolling Speed :
0.05-0;5 rpm
Speed Adjust :
Stepless Frequency Adjustment
Description

Pipe Revolving Table for Welding for Round Seam Welding Rotary Table With Round Table Supporting 15 Tons

Description

1. Export to USA market with 480V 60Hz 3P voltage.
2. Rotation speed is digital readout on the electric box.

3. Welding Turn Table can rotate 360° by VFD control.
4. Table size 2200 mm with special hole requested via customers.
5. Controlled is remote-control box, optional foot switch or tilting angle if you wanted.

6. With M24 T- shape bolt,you can fix your work piece on the table for rotation and welding.

Detail Parameters

Model HB-20 HB-30 HB-50 HB-100 HB-150
Max Capacity 2 kg 3 kg 5 T 10 T 15 T
Table Diameter (mm) 900 1000 1500 2000 2200
Rotation Power (kw) 1.5 3
Rotation Speed (rpm) 0.1-1 0.09-0.9 0.05-0.5
Option: □ Foot Pedal □ Wireless Control
Note:

1. WUXI TMB MACHINERY EQUIPMENT CO., LTD with more than 15 years manufacture experience.
2. Our customers from European,America,Middle East and South-east Asia etc..
3. Fully CE certificates supported with the best after sales service.
4. Oversea agent available. We also supply OEM service for some famous distributors.
Detail Parts Brand
1. ABB / INVERTEK brand motor
2. Schneider / Siemens electric system
3. SKF / NTN brand bearing
4. USA DANFOSS / YASKAWA inverter

Pipe Revolving Table For Welding For Round Seam Welding Rotary Table With Round Table Supporting 15 Tons

Clamps for reference

1. We have 3 jaws or 4 jaws chucks for chosen, and pipe diameter from 50 mm to 1200 mm.

2. Special clamps are available,but we have to design according to your work piece detail drawings.

3. Special tilting / lifting platform is also available.
