1. Quick Details

• Web height up to 1800mm, thickness up to 20mm; Suitable for light duty beam;

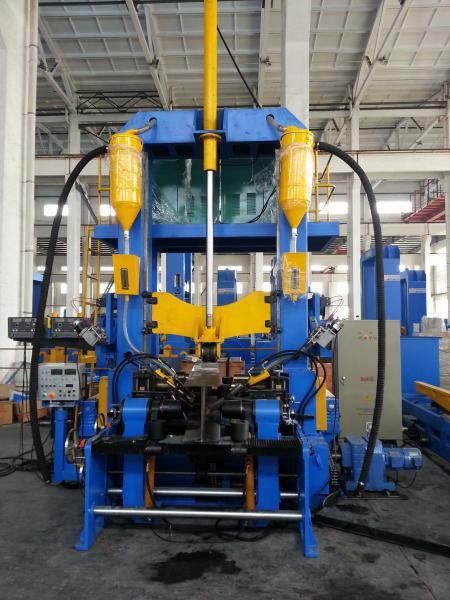

• H-beam combination workstation is used for H-beam or T-beam assembly, welding and straightening;
• Save space and economize workshop; shorten the production time and improve the efficiency;
• Economize the investment of crane equipment and operator;
• American Lincoln DC-1000,NA-3S single arc twin wire welding power;
• Japan Mitsubishi PLC controller;

2. Main Parameters

* We reserve the right to alter specifications without prior notice.

3. Main features

The standard models of our H-beam combination workstation for assembly, welding and straightening has the following features:

• Robust all steel fabrication with stable structure and good rigidity, and no deformation after long time using;
• Synchronous clamping and centering system for web and flange;
• Japan Mitsubishi PLC controller;
• The whole system is using the PLC, and the speed of straightening, assembly and welding is the same;
• American Lincoln DC-1000,NA-3S single arc twin wire welding power;
• Flux feeding and recovery machine;
• Heat treatment to main welding parts after welding; sand blasting treatment to main welding parts before painting;
• All motion parts have lubrication system;
• Main electric elements are ABB/Siemens brands;
• Lifting lug;
• Standard color:

4. Comparative advantage

• ISO9000&CE certified;
• International warranty;
• Punctual delivery;
• Professional and experienced engineer team to ensure the advanced design about structure and electric;
• Experienced and skilled workers to care for each work flow from material cutting, welding, grinding to final assembly and testing to ensure high machine quality;
• Professional and experienced after sale service team to guarantee quick and satisfied installation, commissioning or service;
• Optimum materials and outsourcings to ensure the best performance;
• Commissioning and testing before delivery;
• Factory inspection is encouraged;
