Hydraulic Valve Control Precision Clamping Automatic Welding Machine H Beam Making Machine
Hydraulic Valve Control Precision Clamping Automatic Welding Machine H Beam Making Machine
Specifications
Brand Name :
LUOLE
Model Number :
HZJ
Certification :
CE
Place of Origin :
WUXI
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
50 sets/month
Delivery Time :
30 days
Packaging Details :
Bubble
Flange Plate Width :
200-800 mm
H Beam Length :
4000-12000
Web Height :
200-1800 mm
Assembly Speed :
0.5-6 M/min
Description

High Quality H Beam Making Machine Use Imported Teco VFD and Atos Hydraulic Valve Control Precision Clamping

Machine overview :

1. H-beam automatic assembly machine currently mainly includes HG-1800 and HG-2000 series products, which are applicable to H-beams with web heights of 180-1800mm and 200-2000mm, respectively.
2, the product of the wing, web, clamping centering, positioning and other processes are controlled by the inverter, so as to achieve automated control operations.
3, the user of the product can be selected according to the requirements in the order of the product with gas shielded welding automatic spot welding can also choose manual spot welding.

Main Parameters

Model HZJ18 / 20
Suitable web height mm 200—1800 / 2000
Suitable web thickness mm 6—32
Suitable flange width mm 200—800
Suitable flange thickness mm 6—40
Straightening thickness mm 6—35
Fillet height mm ≦8
Work-piece length mm 4000—15000
Feeding speed m/min 0.2—2 (VFD)
Input conveyor m 3conveyorss, each 2.6m (one powered)
Output conveyor m 11.5m, including lift conveyor
Machine power kW 18.1
Power supply AC380V, 50HZ, 3P or tailor made
Above are our standard models and parameters, and it can be designed and manufactured on request.

*We reserve the right to alter specifications without prior notice.

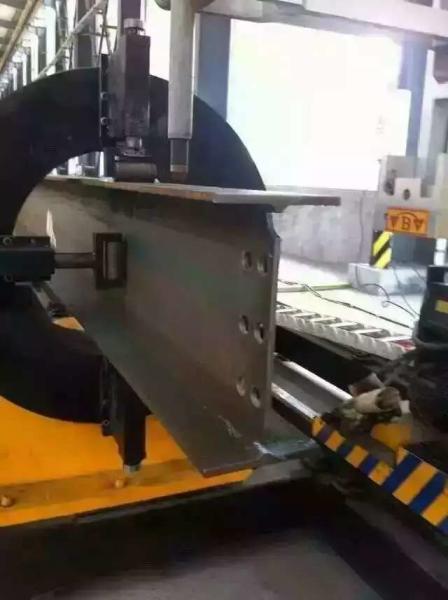

Reference photo

Hydraulic Valve Control Precision Clamping Automatic Welding Machine H Beam Making Machine

Comparative advantage

  • ISO9000&CE certified;
  • International warranty;
  • Punctual delivery;
  • Professional and experienced engineer team to ensure the advanced design about structure and electric;
  • Experienced and skilled workers to care for each work flow from material cutting, welding, grinding to final assembly and testing to ensure high machine quality;
  • Professional and experienced after sale service team to guarantee quick and satisfied installation, commissioning or service;
  • Optimum materials and outsourcings to ensure the best performance;
  • Commissioning and testing before delivery;
  • Factory inspection is encouraged;
