H-Beam Flange Thick Plate Hydraulic Straightening Machine With 22kw Motor in Construction Area China Brand
H-Beam Flange Thick Plate Hydraulic Straightening Machine With 22kw Motor in Construction Area China Brand
H-Beam Flange Thick Plate Hydraulic Straightening Machine With 22kw Motor in Construction Area China Brand
H-Beam Flange Thick Plate Hydraulic Straightening Machine With 22kw Motor in Construction Area China Brand
Specifications
Brand Name :
YIJIE
Model Number :
YJZ60
Certification :
CE ISO
Place of Origin :
China
MOQ :
1
Price :
50000 USD
Payment Terms :
T/T
Supply Ability :
10 sets / Month
Delivery Time :
40 days
Web plate height :
more than 350 mm
Flange plate width :
200-800 mm
Plate thickness :
6-60 mm
Main Motor :
22 Kw
Description

H-Beam Flange Thick Plate Hydraulic Straightening Machine With 22kw Motor in Construction area

Main order informations:

  1. Flange plate thickness is suitable from 20-60mm.
  2. Voltage standard is 380V , 50HZ , 3PH. We can special make for customer.
  3. Drive motor is 22kw, Oil pump motor is 15kw.

Machine Description:

YJZ-60 model H-beam steel flange hydraulic straightening machine is used for the correction of the flange of the H-beam.Through the lever principle and elastic recovery,It bends the flange of the I beam or H beam when the beam passing through the hole.The equipment is made up of the electric motor, reducer ,cylinder,former,mainframe,stand,hydraulic system,front/back elevating roller rack of pendulum type and the structure is advanced,The correcting mechanism is compact,solid and easy to operate.

Specifications:

Applicable Scope Thickness of the flange 60mm
Width of the flange 180-800mm
Thickness of the web 6-40mm
Height of the Web ≥350mm
Material of the Work Piece Q235A,160Mn(Plate Thickness When Bending 16Mn:70% of Q235A)
Relationship Between the Width and Thickness of the Work Piece s 20-30 30-40 40-50 50-60
b 180-800 300-800 400-800 500-800
Drive System Drive Motor 18.5kw(22kw)
Maximum Output Torque 34770N.m(48650N.m)
Linear Velocity of the Work Piece 7.5m/min(6.37m/min)
Hydraulic Pressure System Oil Pump Motor 11kw(15kw)
Output Volume of the Oil Pump 25ml/r(25ml/r)
Maximum System Pressure 25Mpa(32Mpa)
Normal Working Pressure 20Mpa(27.5Mpa)

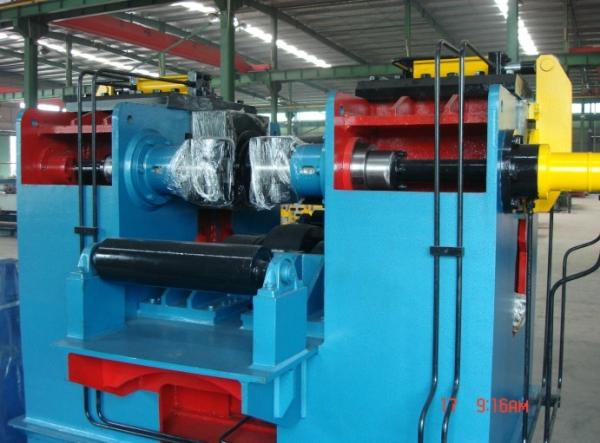

Main Photos :

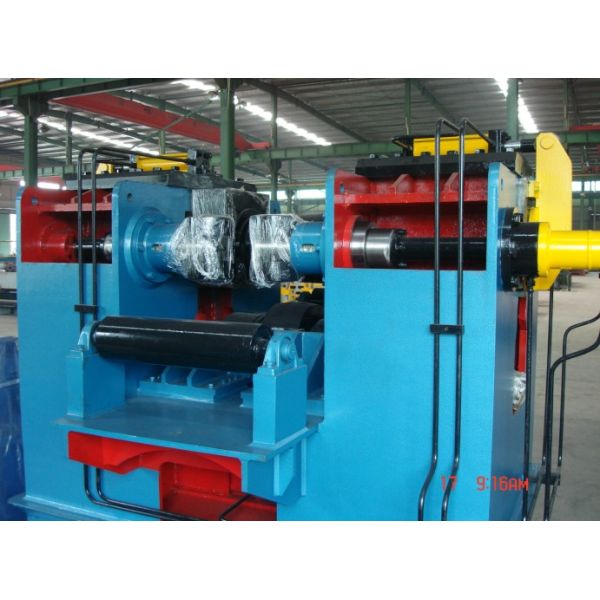

H-Beam Flange Thick Plate Hydraulic Straightening Machine With 22kw Motor in Construction Area China Brand
