China High Quality 2 Waves Highway Guardrail Roll Forming Machine Drived By 13 sets High Strengthen Rollers
China High Quality 2 Waves Highway Guardrail Roll Forming Machine Drived By 13 sets High Strengthen Rollers
China High Quality 2 Waves Highway Guardrail Roll Forming Machine Drived By 13 sets High Strengthen Rollers
China High Quality 2 Waves Highway Guardrail Roll Forming Machine Drived By 13 sets High Strengthen Rollers
China High Quality 2 Waves Highway Guardrail Roll Forming Machine Drived By 13 sets High Strengthen Rollers
China High Quality 2 Waves Highway Guardrail Roll Forming Machine Drived By 13 sets High Strengthen Rollers
Specifications
Brand Name :
LUOLE
Model Number :
320
Certification :
CE
Place of Origin :
Wuxi
MOQ :
1
Price :
Discuss in letter
Payment Terms :
T/T
Supply Ability :
5 sets/month
Delivery Time :
35 days
Packaging Details :
With bubble paper
Forming Model :
Customized
Main Forming Power :
45 Kw
Cutting Type :
Hydraulic
Forming Type :
Copy Italy
Description

China High Quality 2 Waves Highway Guardrail Roll Forming Machine Drived By 13 sets High Strengthen Rollers

Highway Guardrail Roll Forming Machine

Highway safety board, also known as "wave guardrail" is the main form of semi-steel fence, it is a corrugated steel guardrail board stitching and supporting the continuous structure of the main column.

Our expressway guardrail roll forming machine mainly consists of decoiler, guide device, levelling system, hydraulic station, punching, roll forming system, cutting system and run out table.

Main Technical Parameters :

  • Material Thickness: 2-4mm
  • Forming Station: 13 forming rollers
  • 7 Rollers leveling
  • Principal Axis Diameter: ￠100mm
  • Working Speed: 10-12m/min
  • Main Power: 45KW
  • Hydraulic Power: 15KW
  • Dimension of Machine: 11500MM X 2000 MMX1600MM ( LXWXH )
  • Gross Weight of Machine: about 20 Ton
  • Voltage: 380V, 3 Phase 50Hz

Main Components of Supply

  • Hydraulic Decoiler ---------------------------------------- 1 Unit
  • Leveling and Feeding Guide -------------------------------- 1 Unit
  • Punching Device ------------------------------------------ 1 Unit
  • Roll Forming Machine -------------------------------------- 1 Unit
  • Hydraulic Cutting ------------------------------------------ 1 Unit
  • Hydraulic Station ------------------------------------------ 1 Unit
  • PLC Contol System ---------------------------------------- 1 Unit
  • Runout Table ---------------------------------------------- 1 Unit
  • Spare Coupling -------------------------------------------- 1 Unit

Reference Drawing

China High Quality 2 Waves Highway Guardrail Roll Forming Machine Drived By 13 sets High Strengthen Rollers

China High Quality 2 Waves Highway Guardrail Roll Forming Machine Drived By 13 sets High Strengthen Rollers

China High Quality 2 Waves Highway Guardrail Roll Forming Machine Drived By 13 sets High Strengthen Rollers

China High Quality 2 Waves Highway Guardrail Roll Forming Machine Drived By 13 sets High Strengthen Rollers

Our Advantage compared to another factory

  • High Quality
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 15 Years Experience

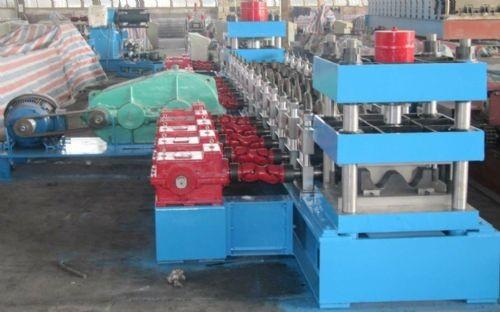

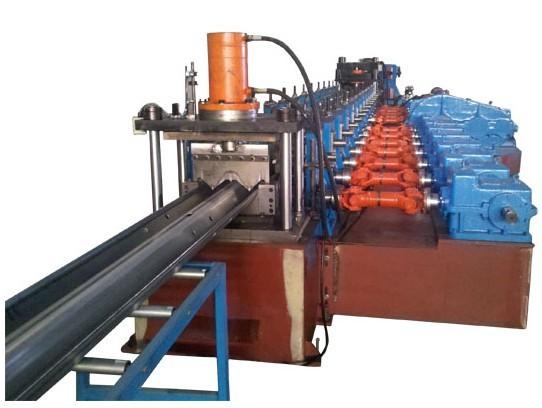

Machine Photos :

China High Quality 2 Waves Highway Guardrail Roll Forming Machine Drived By 13 sets High Strengthen Rollers
