Export Egypt Steel Plates Butt Welded Equipment Automatic PLC Control Whole Working Process
Export Egypt Steel Plates Butt Welded Equipment Automatic PLC Control Whole Working Process
Export Egypt Steel Plates Butt Welded Equipment Automatic PLC Control Whole Working Process
Export Egypt Steel Plates Butt Welded Equipment Automatic PLC Control Whole Working Process
Specifications
Brand Name :
LUOLE
Model Number :
3000 / 5000 / 6000 / 8000 / 9000
Certification :
CE/ISO
Place of Origin :
Shanghai
MOQ :
1
Price :
USD 40,000----50,000
Payment Terms :
T/T
Supply Ability :
10 Sets/ month
Delivery Time :
40-50 Days
Packaging Details :
Bubble
Plate Length :
customized
Plate Thickness :
0.5-12 MM
Welding Speed :
0-1500 MM/min
Press Plate :
Hydraulic / Pneumatic
VFD Brand :
Siemens or Schneider
Description

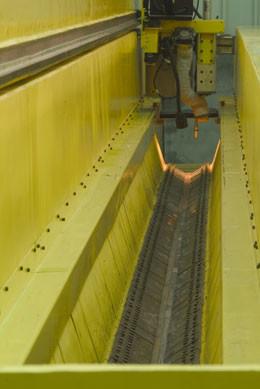

Steel Plates Butt Welded Equipment Automatic PLC Control Whole Working Process

Machine features

1. Welding torch moving longitudinally, welding position is horizontal.

2. MIG welding type. The process of MIG welding is a welding process in which an electric arc forms between a consumable wire electrode and the workpiece metal, which heats the workpiece metal, causing them to melt and join. Along with the wire electrode, a shielding gas feeds through the welding gun, which shields the process from contaminants in the air. The process will be automatic.

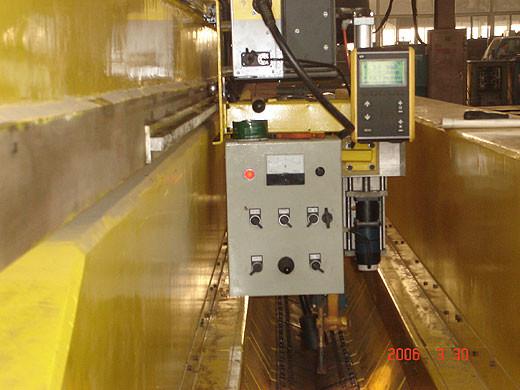

3. Japan Omron PLC and torch screen to control the machine. AC variable frequency speed regulation, which ensures the equipment reliability.

4. Welding form can be preset, storing and transferring. Through the human-machine

interface can easily change the parameters and state transition. Welding torch can be adjusted up and down, left and right, and by angle.

Main Technical Parameters

(1) Welding seam length: 4.5m

(2) Thickness: 4-8mm

(3) Motor power: 0.75KW

(4) Welding torch adjusting volume

up and down:100mm

left and right: 100mm

tilting angle:25°- 60°

(5) Welding current: 50-500A

(6) Wire diameter: 1.0mm and Φ1.2mm

(7) Argon gas consumption (15% CO2 + 85% Argon): 15L/MIN

(8) Working voltage: 380V,3ph, 50hz


Product Application:

Steel Plate butt welding machine is a special machine for combined 2 paltes as a whole.

Why Choose Us

1. Machines have always been committed with the service idea of customer-centric, supply installation, adjustment, training and maintenance in pre-sales and after-sales service.

2. More stringent quality control system.

3. Delivery time assurance measure: the whole process from signing contract to delivering machine is under strict controlled. The system can ensure us deliver the machine timely.

Product Advantage:
  1. Convenient, high efficiency
  2. high quality
  3. Reasonable price
  4. good service
