4mm Thickness Guardrail Forming Machine For Making Highway Barrier According to ANSI
4mm Thickness Guardrail Forming Machine For Making Highway Barrier According to ANSI
4mm Thickness Guardrail Forming Machine For Making Highway Barrier According to ANSI
4mm Thickness Guardrail Forming Machine For Making Highway Barrier According to ANSI
4mm Thickness Guardrail Forming Machine For Making Highway Barrier According to ANSI
4mm Thickness Guardrail Forming Machine For Making Highway Barrier According to ANSI
Specifications
Brand Name :
LUOLE
Certification :
CE
Place of Origin :
Wuxi
MOQ :
1
Price :
Discuss in letter
Payment Terms :
T/T
Supply Ability :
5 sets
Delivery Time :
35 Days
Packaging Details :
With bubble paper
Description

4mm Thickness Guardrail Forming Machine For Making Highway Barrier According to ANSI



Description

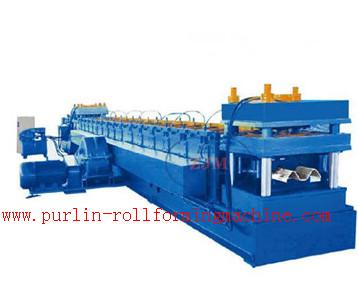

Expressway Guard Rail Forming Machine is an expert machine specialized in guard rail panel. The products of the machine are widely used in the highway and the relate fields.
Our Roll Forming Machines for the manufacture of Expressway Guardrail, Galvanized W beam guardrails, Corrugated steel beam, fencing and road barrier, B Guardrail, Three beam steel guardrail, Highway Barrier Beams, Standard W-beam Guardrail, Steel Beam Guardrail, This guard rail forming machine mainly consists of conic, guide equipment. leveling system, edge cutting, punching, roll forming system, roll forming cutting system, stacking equipment, stacking move equipment, hydraulic station, electric control cabinet.

Specifications

Line structure

Portal-type frame style: 45# steel

Forming Roller Stations:

18 Stations

Forming Roller shaft:

¢90mm, 40Cr, quenching, treating

Forming rollers

GCr15, quenching, hardness HRC56-62º

Forming Speed:

12 meters / min (suggestion speed: 7-8m/min)

Main motor:

45kw

Hydraulic station motor

15kw

feed material thickness:

(2-5) mm× L

Suitable raw material:

Q235A galvanized steel sheet

Driving mode:

Gearing box & cardan shaft

Cutting mode:

automatic punching cutting style

Blade material:

Cr12, quenching and treating

Control mode

PLC

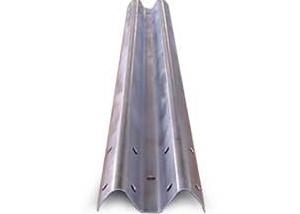

Expressway guardrail profile

Roll formed guardrail profiles produced by roll form machine are included W beam guardrail and three beam steel guardrail. The following profiles showed as following is for the two waves and three waves and post profile drawing and popular in the world market,

4mm Thickness Guardrail Forming Machine For Making Highway Barrier According to ANSI
Drawing

4mm Thickness Guardrail Forming Machine For Making Highway Barrier According to ANSI

Advantages

1.This production line can be automatic running by input the products length and batches to the PLC control system .
2.Very strong base frame treated to avoid any vibration.
3.Precise- All the rollers are CNC lathe processed and polished on the surface to guarantee the accuracy.
