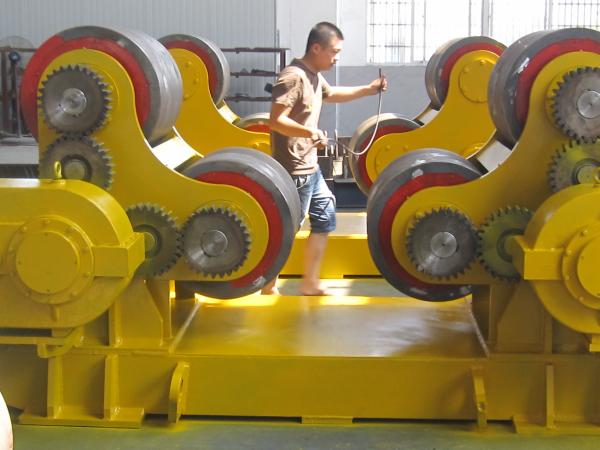

Self Alignment 200T Tank Turning Rollers with Metal Wheels Double Motors Synchronous Drive

Brife Info

1. Load Capacity : Driver 200,000 lbs (100T) , Idler 200,000 lbs (100T).

2. Three (3) Tires 20" dia. x 8" wide rollers on one side to ensure turning steady.

5. Control system : Hand control box with digital readout

6. Original Place : Wuxi China , 100% New

7. Delivery time : 20 days

Competitive Advantage

1. Push button pendent control with maintained for, stop, rev and speed adjustment.
2. Infinitely variable wheel center distance by hand wheel through lead screw allows for fast center distance adjustment and optimum contact angle.
3. Heavy duty worm gear drives on each drive roll eliminates the many problems associated with drive shaft systems.
4. Each drive system is oil immersed for long life and sealed from contaminants such as weld spatter, slag.
5. Fully machined top bed on idler and drive roll for perfect alignment.
6. AC inverter drive with LED frequency display for speed adjustment.
7. Highest quality design and construction available for years of trouble free service.

Specification

Description

1. Both drive rolls are powered by a heavy duty direct gear drive and brake motor.

2. All of the gears and bearings are fully sealed and lubricated for long life and safety.

3. Polyurethane roller, Rubber Roller or steel roller are all available.

4. Remote control or Wireless control box with digital display of turning speed.

5. Other types of turning rolls like tank fit-up rolls, and self aligning welding rolls.

Details parts brand

1. Inverter is from Taida / Danfoss

2. Motor is from Invertek / ABB

3. Reducer is from Cable / Chengda

4. Electric system is from Schneider / Siemens

5. Wireless hand control box / foot pedal etc. control system

Attention Please

1. Tank turning rollers, pipe rolls and vessel rotators are a necessity for light and heavy duty pipe or vessel welding applications.

2. Whether you are positioning small diameter pipe or turning extremely large industrial vessels, we can design and build turning rolls that will help you work safely and efficiently.

Please send us your inquiry now !
