Specifications
Brand Name :
Luole
Model Number :
LSW2000
Certification :
CE/ISO
Place of Origin :
Wuxi
MOQ :
1
Price :
USD 1,000 to 2,000
Payment Terms :
T/T
Supply Ability :
15 sets/month
Delivery Time :
25 Days
Packaging Details :
Bubble
Tanks length :
1500-3000 MM
Tanks Diameter :
100-1000 MM
Plate thickness :
1-4 MM
Welding Type :
CO2 or Ar Gas Shield
Tanks Material :
Stainless or Carbon
Welder Power :
315 Gas-shield Welder or another
Gun Moving :
DC motor or Servo
Press Plate :
Pneumatic
Gun control :
VFD or PLC
Description

Stainless Cylinders Longitudinal Seam Automatic Welding Machine use DC Motor

Machine descriptions :

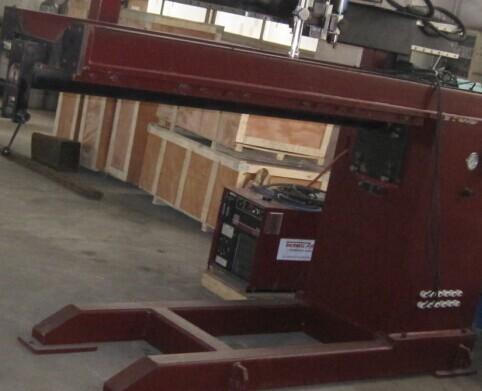

When we want to thin thickness weld stainless tanks , the tanks plate thickness and length often not very large, we may use Longitudinal seam welder as photos.

We special produce LSW series long seam welder from 12 years ago.

LSW Type Longitudinal seam welders is a main process equipment used to produce linear welds on abutting edges of thin wall cylinder or rectangular tube.

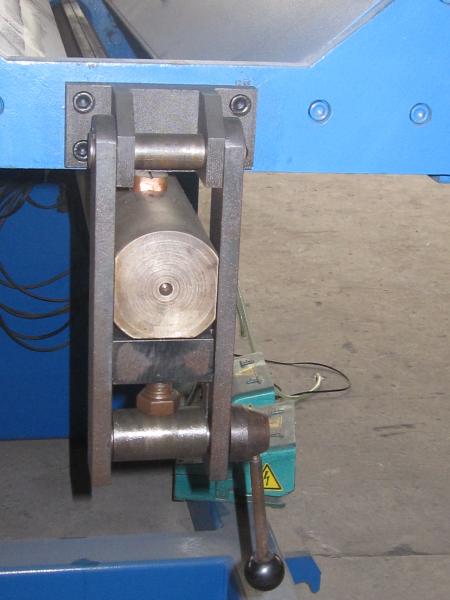

LSW Type Longitudinal seam welders includes: machine seat ,crossbeam ,Hold down fingers,Back-up mandrel,Water cooling copper interleaver ,travel Carriage and Control,dual Axis Slides etc.Hold down fingers can generates a clamping force of up to 25 kg/cm through air-operated；Travel Carriage and Controll is mounted on the crossbeam,,it is driven by a DC motor to make the straight line sport on the horizontal beam.Dual axis slides provided with manual or dynamoelectric type；control system can add the function of arc length control or welding oscillator.

Main Technical Parameters :

Model Welding Length
mm Inches
LSW 500 500 19.7"
LSW 1000 1,000 39.37"
LSW 1500 1,500 59"
LSW 2000 2,000 78.75"
LSW 2500 2,500 98.42"
LSW 3000 3,000 118.11"
LSW 3500 3,500 137.80"
LSW 4000 4,000 157.48"
LSW 5000 5,000 196.85"
LSW 6000 6,000 236.22"

Product Application:
The tanks was fix by piano keys ,the seam forming very good , the electric control system maybe CNC Type or normal control ,SAW or TIG or MIG/MAG welding
Product Advantage:
  1. Convenient, high efficiency
  2. high quality
  3. Reasonable price
  4. good service


Competitive Advantage:

  1. Electric control system composed of electric cabinet and manual control panel making it easy to operate.
  2. Electric control may use CNC type or normal type.
  3. We may supply flux recovery system , oscillate system etc.
