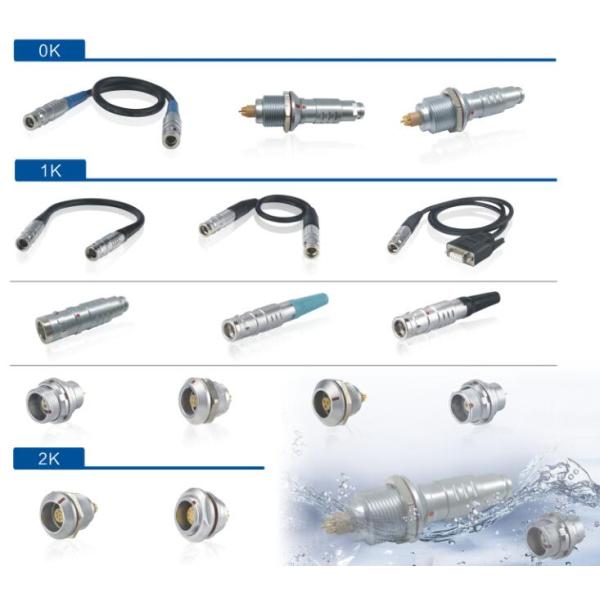

Compatible Lemo K Series 14 pin Connectors detectors Medical Cable Connector
Compatible Lemo K Series 14 pin Connectors detectors Medical Cable Connector
Compatible Lemo K Series 14 pin Connectors detectors Medical Cable Connector
Compatible Lemo K Series 14 pin Connectors detectors Medical Cable Connector
Compatible Lemo K Series 14 pin Connectors detectors Medical Cable Connector
Compatible Lemo K Series 14 pin Connectors detectors Medical Cable Connector
Specifications
Brand Name :
OEM
Model Number :
FGG.1K.314
Certification :
CE.ROHS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
Western Union, T/T，Paypal
Supply Ability :
10000pcs per month
Packaging Details :
pp pag
Size :
1K
Type :
Lemo Solder
Color :
Silver
Contact Material :
Brass
Gender :
Male And Female
Application :
Audio & Video
Description


Compatible Lemo K Series 14 pin Connectors detectors Plastic Medical Cable BNC Connector

Main Features:

  • 100% compatible with Lemo original.
  • Push and pull self-locking system is known for simple and quick plug.
  • It can effectively resist vibration and shock, and can prevent the disconnection caused by pulling the cable.
  • It is absolutely safe and reliable to use, which facilitates the insertion and removal in a very limited space.

Specifications:

  • Type: Lemo Solder
  • Application: Audio & Video
  • Gender: Male and Female
  • Color: Silver
  • Material: Zinc Alloy Copper Alloy
  • Connector type: Male Terminals
  • Certificate: CE, UL
  • Pin: 2-12pin
  • Warranty:5000times Mating
  • Keywords: Quick Release Connectors,lemo bnc connector
  • Item name:Cable Joint Connector,lemo bnc connector
  • Contact Material: Brass

Technical Parameter:
Color: Silver
Material: Zinc alloy with nikelplate
Coupling: Threaded coupling
Cable diameter: 10mm
Termination: Solder
Pin number: 14pins
Surface treatment: Nickel Plating
Mating cycles: 5000 times pull and push
Humidity: At tempetature 60°, the max humidity of up to 95%
Temperature range: -45 °- +125°
Vibration: 10-20000Hz,15g
Mechanical shock: 100g.6ms
Smoke corrosion: >48h
Protection class: IP65-68

Applications:

  • The products widely used in following fileds:Automotive,Audio-video,Aviation,Communications,Industrial Control,Information Systems,Machines,Medical,Military,Test and Measurement,Data Acquisition,Data Transfer Equipment,Module Power, Sensor,Sensor Systems Instrumentation,Analysis.
