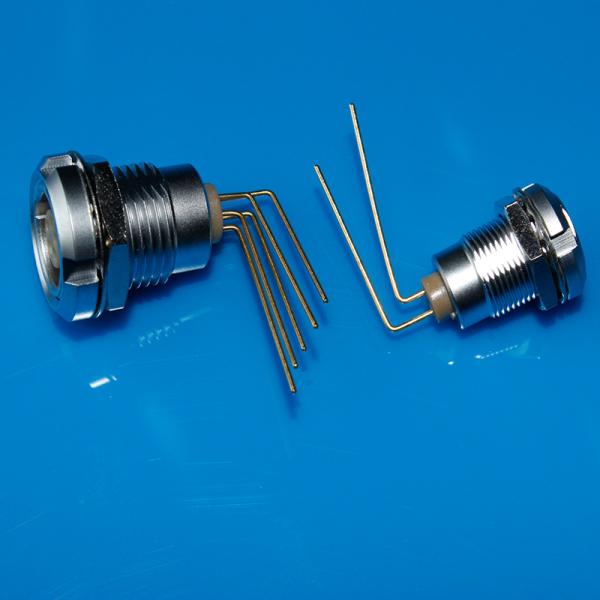

6 Pin Right Angle Printed Circuit Board Connector , PCB Mount Connector
6 Pin Right Angle Printed Circuit Board Connector , PCB Mount Connector
Specifications
Brand Name :
Ebuddy
Model Number :
DCG.2B.306.CLAD
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Paypal,Western Union
Supply Ability :
10000pcs per month
Delivery Time :
5-8workingdays
Packaging Details :
PP bag
Matching parts :
FGG.2B.306.CLAD52
Shell style :
Fixed receptacle with two nuts
Endurance (Shell) :
5000 mating cycles
Housing Material :
Brass (chrome plated)
Shock resistance :
100g.6ms
Contact Type :
Print (elbow)
Description

6pin Female print 90° PCB connector ECG PCB mounted connector Lemo alternative 6pin right angle female socket

Description:
  • Main features:
  • Smart push-pull self-latching system;
  • Multicore types 2 to 14 pins;
  • Solder or PCB contacts;
  • High packing density for space saving;
  • Collet nut and socket nut with the same color to avoid mismatching.​

PCB Board drilling figure:

If you need open a machine mold, you must confirm the hole size according to your board, and then choose connector style, our connector have different sizes from 00 to 03, it can apply whole size board. For example, if your board panel cut-outs OD is about 8-9mm, you should choose 0B size.

Custom service:
  • Common model connectors stock: for common usually models, we will stock materials, once you order, we can ship out in 3 days.
  • Cable assembly service: we can supply cable assembly service according to your requirements.
  • Technical support: Any questions or problems in your connector’s or cable’s working, our technical department will supplu professinal support to help you solve them
  • Cable assembly solution supply: We can make cable assembly service solution to meets you need.
  • Customized connector service: if our present connectors can’t suit exactly what you need, we can open new mould for you.

Please confirm 2B size and drawing as followings:

6 Pin Right Angle Printed Circuit Board Connector , PCB Mount Connector

6 Pin Right Angle Printed Circuit Board Connector , PCB Mount Connector
