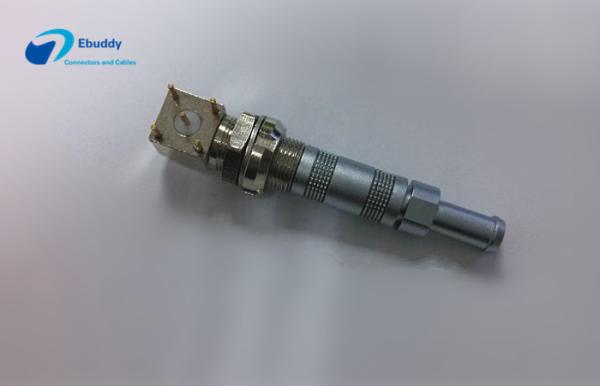

Elbow PCB 0S Size Coaxial Cable Connectors Right Angle For Printed Circuit
Elbow PCB 0S Size Coaxial Cable Connectors Right Angle For Printed Circuit
Specifications
Brand Name :
Ebuddy
Model Number :
EPS.0S.250
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Paypal,Western Union
Supply Ability :
10000pcs per month
Delivery Time :
5-8workingdays
Packaging Details :
PP bag
Housing Material :
Brass (nickel plated)
Rated Current :
6 Amps
Contact style :
PCB mounting
Configuration :
0S.250 : 1 Coax
Impedance :
50 Ohm or 75 Ohm
Contact Type :
Coaxial (PCB)
Description

Lemo Elbow PCB 0S size Coaxial cable connectors right angle coaxial socket for printed circuirt

Description:
  • Lemo Elbow PCB 0S size Coaxial cable connectors
  • right angle coaxial socket for printed circuirt
  • Elbow PCB printed circuit board style
  • With two nuts
  • Contact Type: Coaxial (PCB)
  • Max. Matings: 1000
  • Contact Dia.: 0.9 mm (0.04in)
  • Bucket Dia.: 1 mm (0.04in)
  • Vtest: 3000 V (AC), 4200 V (DC)
  • Impedance: 50 Ohm or 75 Ohm
  • VSWR: 1.02 + 0.25 * f/GHz
  • Cable type: RG 178 B/U, RG 196 A/U, RG 188 A/U, RG 316 B/U, RG 174 A/U, HF-2114, RG 122 /U

PCB Board drilling figure

If you need open a machine mold, you must confirm the hole size according to your board, and then choose connector style, our connector have different sizes from 00 to 03, it can apply whole size board. For example, if your board panel cut-outs OD is about 8-9mm, you should choose 0B size.

Insulating washer(color wheel):

  • Application: When your plug and socket need attached on the board, you can install a insulating washer to keep a potencial between different conductors.

  • Color options:

Elbow PCB 0S Size Coaxial Cable Connectors Right Angle For Printed Circuit



Elbow PCB 0S Size Coaxial Cable Connectors Right Angle For Printed Circuit
