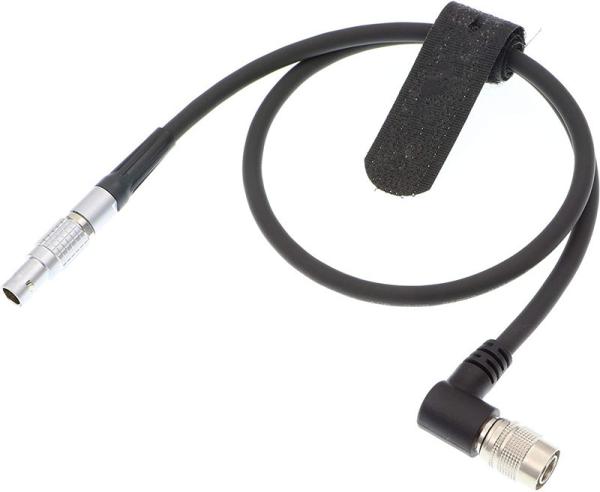

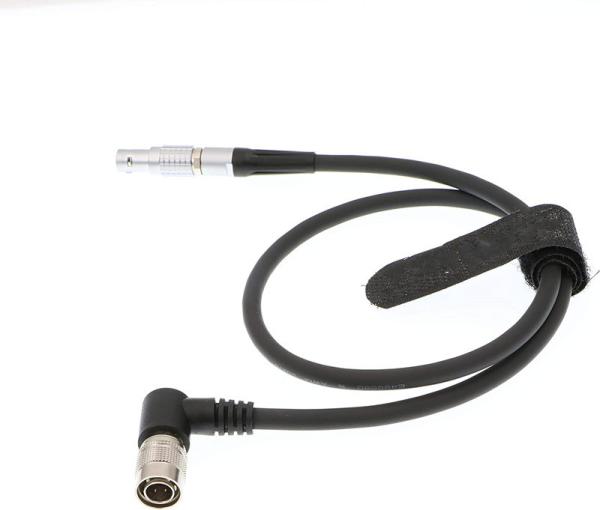

Lemo 2 Pin Male to Hirose 4 Pin Male Cable for Teradek Bolt 500 Transmitter from Sony F5

Specification:

• HR10 connectors are a lower-cost version, yet still provide a high "Value Add" while preserving the superior characteristics of the HR10 connectors.
• Cable clamps are crimped using a special crimping tool, and the shells have a rubber boot which provides a flexible design that helps to prevent cable twisting.
• The HR10G connector is a shielded type connector which has an internal contacting structure between the plug shell and receptacle shell.
• Contacts in both HR10A and 10G connectors are silver plated as standard.

Features:

1. A simple, yet highly reliable design for compact, high density applications.Although small in size, the HR10 series are full featured connectors with a well integrated design.
2. Extremely easy mating/unmating operations.
Easy to operable, the single-action push-pull lock structure allows for quick and efficient locking and unlocking.

3. Inexpensive, economical connector compatible with the HR10 Series.
4. 2A current rating.
5. Crimp / Solder assembly.
6. Includes rubber bushing to prevent damage from cable bending.
7. Requires Special hand tool to uniformly crimp the cable clamp to ensure increased cable clamp force - Not Included.
8. Connection ring incorporating a grid knurl is slip preventive.
9. Provided with silver-plated standard terminals.
10. Use with CCD Cameras, Computers, Medical equipment, AV equipment, Radio equipment etc.

Size and Drawing:

Application:

Medical
Defense Security
Instrumentation
Transportation
Industry
Energy
Broadcast
Audio/video

Ebuddy Service:

1.Common model connectors stock: for common usually models, we will stock materials, once you order, we can ship out in 3 days.
2.Cable assembly service: we can supply cable assembly service according to your requirements.
3.Technical support: Any questions or problems in your connector’s or cable’s working, our technical department will supplu professinal support to help you solve them
4.Cable assembly solution supply: We can make cable assembly service solution to meets you need.
5.Customized connector service: if our present connectors can’t suit exactly what you need, we can open new mould for you.
