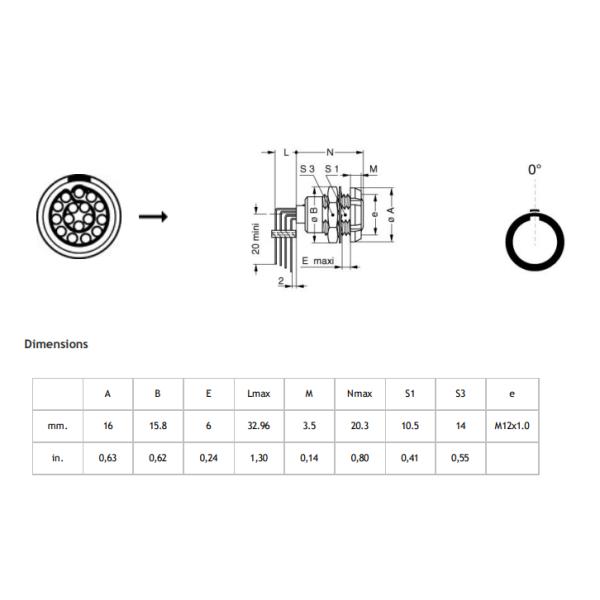

16pin right angle pin PCB socket Lemo ECG 16pin receptacle with two nuts ECG.1B.316.CLV

• Lemo ECG 16pin receptacle with two nuts ECG.1B.316.CLV
• 16pin right angle pin PCB socket
• 00B/0B/1B/2B/3B/4B available
• 2pin--32pin for your option
• Endurance (Shell):5000 mating cycles
• Humidity (max):<=95% [at 60 deg C / 140 F]
• IP Rating:50
• Configuration:Brass (gold plated)

• Housing Material:Brass chrome plated

• Temp (min):-20 deg C
• Temp (max):+150 deg C

• Shell Style/Mode: EC*: Fixed receptacle with two nuts and elbow contacts for printed circuit (back panel mounting)
• Keying: 1 key (alpha=0, plug: male contacts, receptacle: female contacts)
• Housing Material: Brass (chrome plated shell and collet nut, nickel plated brass latch sleeve and mid pieces
• Contact Type: Print (elbow)
• Contact Dia.: 0.5 mm (0.02in)
• R (max): 8.7 mOhm
• Vtest (contact-shell): 1250 V (AC), 1770 V (DC)
• Vtest (contact-contact): 800 V (AC), 1130 V (DC)

• Common model connectors stock: for common usually models, we will stock materials, once you order, we can ship out in 3 days.
• Cable assembly service: we can supply cable assembly service according to your requirements.
• Technical support: Any questions or problems in your connector’s or cable’s working, our technical department will supplu professinal support to help you solve them
• Cable assembly solution supply: We can make cable assembly service solution to meets you need.
• Customized connector service: if our present connectors can’t suit exactly what you need, we can open new mould for you.

Specification:

• Material: Polyurethane material(PU)
• Temperature range: -40°--- +80°
• Color: Black, Red, Blue, White, Yellow, Green
• Size: 00B/0B/1B/2B, 0K/1K/2K
• Cable OD Range: 3.1mm—8.2mm
