K Series 2 Pin IP68 Waterproof Plug Connector With Push Pull Self Latching System
K Series 2 Pin IP68 Waterproof Plug Connector With Push Pull Self Latching System
K Series 2 Pin IP68 Waterproof Plug Connector With Push Pull Self Latching System
K Series 2 Pin IP68 Waterproof Plug Connector With Push Pull Self Latching System
K Series 2 Pin IP68 Waterproof Plug Connector With Push Pull Self Latching System
K Series 2 Pin IP68 Waterproof Plug Connector With Push Pull Self Latching System
K Series 2 Pin IP68 Waterproof Plug Connector With Push Pull Self Latching System
K Series 2 Pin IP68 Waterproof Plug Connector With Push Pull Self Latching System
Specifications
Brand Name :
Sreada
Model Number :
TGL.1K.302.CLLK82Z
Certification :
UL,CE, RHoS, ISO9001
Place of Origin :
Guangdong, China
MOQ :
50 Sets
Price :
$3.00 - $30.00/Sets
Payment Terms :
L/C, D/P, T/T
Supply Ability :
5000 Set/Sets per Week
Delivery Time :
5-7 Days
Packaging Details :
carton size:big one:200x155x80mm(net weight 0.2kg),smail one:170x120x35mm(net weight 0.1kg) by packaged vaccum seal bags or plastic boxes,then carton packaging
Cores :
2
Series :
1K
Termination :
Female solder
Cable Diameter :
8.10 - 8.50 mm
Contact Type :
Solder
Endurance :
5000 mating cycles
Humidity :
<=95% [at 60 deg C /140 F]
Salt Spray Corrosion :
>1000 hr
Description

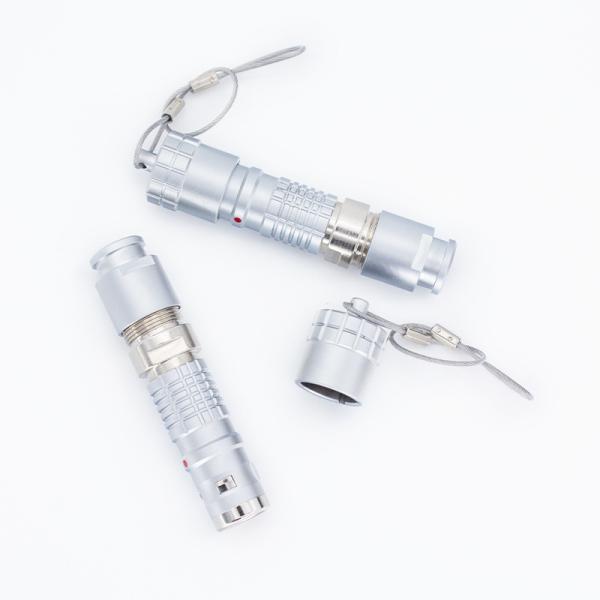

K series waterproof plug with two cores silver color with push-pull self-latching system

Description Of 1K Series 2 Pin Connectors:

K series connectors can be interfitted with connectors of the same type produced by other companies for communications, broadcast connectors, defense, medical, testing, research, robotics, public sector, information systems, etc.

Specification Of 1K Series 2 Pin Connectors:

Durability >5000 times Temperature -45℃~+125℃
Salt Mist Test >48h Waterproof Rating IP65-68
Vibration 10-20000Hz,15g shock resistance 100g.6ms
Contact material Brass gold plating Shell color Silver

Features Of 1K Series 2 Pin Connectors:

1. watertight connection (IP 68/IP 66)

2. rugged housing for extreme working conditions

3. multipole types 2 to 16 contacts

4. solder, print contacts

5. security of the Push-Pull self-latching system

Applications Of 1K Series 2 Pin Connectors:

Connector Equipment
Medical connector Analyzers, Processing Equipment Dental Equipment Dental Equipment Electrosurgical Devices Pacemakers and Hearing Devices
Audio-video connector HDTV/Media Converter Remote Cam / Motion Pict Cam(Indoors/outdoors) Analog Audio/Video Digital Audio Lighting - Indoors/outdoors
Test & Measurement connector GPS (portable or vehicle mounted) High Voltage Experiments Meters, Sources, Analyzers Weather Sensors Quality Inspections
Information system connector Authentication Devices Computers (outdoors) Input Devices Printers/Copiers
Automotive connector Cars/Trucks (inside) Crash Dummies Engine Compartments Emergency Vehicles
Research connector Robots Sub-Atomic Research Physics Research Laboratories
Aerospace connector Airplanes/Helicopters Baggage Screeners
Communication connector Antennas - Indoors/outdoors Headsets/IBFs (Reporters) Remote Control RF/uWave
System control connector Security/Surveillance - Indoors Security/Surveillance - outdoors

K Series 2 Pin IP68 Waterproof Plug Connector With Push Pull Self Latching System

Our advantages:

Since its establishment, Sreada has been committed to providing value for value-for-money connector products and services and professional connector application solutions. With the mission of high quality products and services to make customers more competitive, Sreada has actively explored the needs of customers in various industries, so that Sreada can provide customers with the most appropriate connector products and connector application solutions to meet their use in complex environment. The insight and deep understanding of the market and the development trend of the industry enable Sreada to continue to maintain product innovation and flexibility; Advanced product development management, comprehensive product development and testing and highly automated production lines ensure the high reliability and high performance of Sreada products.
