Absorb Impacts PVB Layer Heat Cold Resistance Permanent Insulation
Absorb Impacts PVB Layer Heat Cold Resistance Permanent Insulation
Specifications
Brand Name :
ZHECHUN
Model Number :
CZ01
Place of Origin :
China
MOQ :
1 Roll
Payment Terms :
T/T, L/C
Supply Ability :
15,000,000 square meter per year
Delivery Time :
10 days after deposit
Packaging Details :
aluminum foil and wooden box
Material :
Polyvinyl Butyral resin
Haze :
0.6%
Light transmittance :
87%
Shringking :
8%
Roughness :
28-50 um
Elongation at peak :
200%
Tensile strength :
20MPa
color :
clear or color
thickness :
0.3-1.52mm OEM
shipping port :
Shanghai or Guangzhou
Description

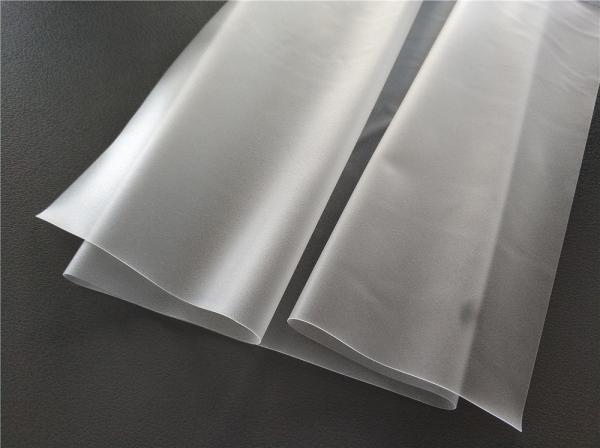

absorb impacts PVB layer Film for glass curtain wall

PVB layer is a macromolecule material molded by polyviny, butyral resin that is plasticized and extruded by plasticity. Our PVB film with excellent light transparency, heat and cold resistance, elasticity, is well-sticking to inorganic glass and the making of laminated safety glass. Usual thickness specification is between 0.3 mm - 1.52 mm.

Absorb Impacts PVB Layer Heat Cold Resistance Permanent Insulation

1,Infrared insulation 85-99%, permanent insulation
2,100% uv barrier, sun protection, avoid, interior trim or furniture aging
3,The visible light transmittance of 70-90% fully meets the requirements of automobile front gear and building glass
4,Signal zero blocking (mobile phone, GPS, etc.)
5,Safe explosion protection against penetration
6,Sound insulation
7,High cost performance, permanent insulation, farewell film, energy conservation and environmental protection

Packaging and storage condition

Every layer of PVB film rolls should be sepatared by PE film and vacuumed by aluminum foil,and put into wooden case.

Absorb Impacts PVB Layer Heat Cold Resistance Permanent Insulation

The product should be stocked in a clean warehouse and normal temperature.It is prohibited to leave it under direct sunlight.Once the packing is broken or opened,it should be stocked under temperature of 15-25 ℃ and a relative humidity of 20%-40%.

Well-packed and under nomal temperature,the product has a quality guarantee of 1 years.

laoding date for reference:

Absorb Impacts PVB Layer Heat Cold Resistance Permanent Insulation
