Two Color Car Windshield PVB Film For Laminated Glass UV Resistance
Two Color Car Windshield PVB Film For Laminated Glass UV Resistance
Specifications
Brand Name :
ZHECHUN
Model Number :
CZ01
Place of Origin :
China
MOQ :
1 Roll
Payment Terms :
T/T, L/C
Supply Ability :
15,000,000 square meter per year
Delivery Time :
10 days after deposit
Packaging Details :
aluminum foil and wooden box
Material :
Polyvinyl Butyral
Haze :
0.6%
Light transmittance :
87%
Shringking :
8%
Roughness :
28-50 um
Elongation at peak :
200%
Tensile strength :
20MPa
Use for :
windshield
Thickness :
OEM
Description

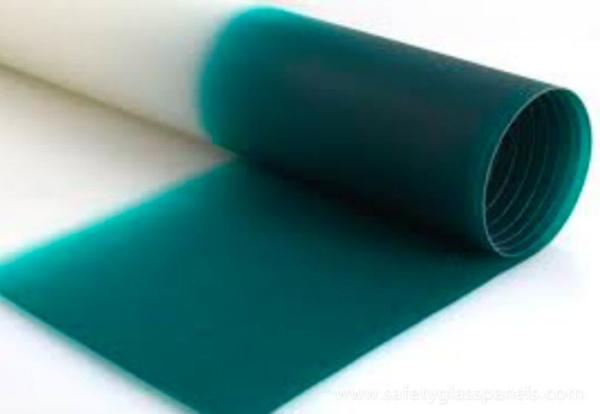

2 color PVB layer for car glass

PVB layer (Polyvinyl butyral) is a clear, colorless, amorphous thermoplastic obtained by condensation reaction of polyvinyl alcohol and butyraldehyde. The resin is known for its excellent flexibility, film-forming and good adhesion properties as well as outstanding UV resistance.

Two Color Car Windshield PVB Film For Laminated Glass UV Resistance

Use laminated glass can make car more safe and better sound insulation.

Two Color Car Windshield PVB Film For Laminated Glass UV Resistance

Product name PVB layer film
Raw material The resin
Thickness 0.3mm 0.38mm 0.76mm 1.14mm 1.52mm (±0.02mm)
Appearance Achromatic or light yellow clear film, smooth surface without scratch or crease
Dotted Impurities and Air Bubbles

>0.05mm²(Allowed to scatter no more than 10 places per roll)

>0.55mm²(Not to exceed 6-8 places per roll; Marking marks, add an extended 1 meter film per place
Uniformity

Lateral and longitudinal evenness degree shouldn’t exceed 15μm at a distance of 25mm

Lateral deviation should be less than 35μm, while longitudinal deviation should be less than 25μm
Length Tolerance(m) +(0-2)
Width Tolerance(mm) +(10-20)
Water Content (%) ≥0.05
Tensile Strength(Mpa) ≥20
Haze (%) <0.7(0.38*2)
Shrinkage(60℃/15min)(%) ≤12
Elongation at break(%) ≥200
