Noise Control PVB Sheet For Laminated Glass Anti Peneration High Pressure Composite
Noise Control PVB Sheet For Laminated Glass Anti Peneration High Pressure Composite
Specifications
Brand Name :
ZHECHUN
Model Number :
CZ01
Place of Origin :
China
MOQ :
1 Roll
Payment Terms :
T/T, L/C
Supply Ability :
15,000,000 square meter per year
Delivery Time :
10 days after deposit
Packaging Details :
aluminum foil and wooden box
Material :
PVB
Haze :
0.6%
Light transmittance :
87%
Shringking :
8%
Roughness :
28-50 um
Elongation at peak :
200%
Tensile strength :
20MPa
use for :
safe glass
shipping from :
Shanghai, China
Description

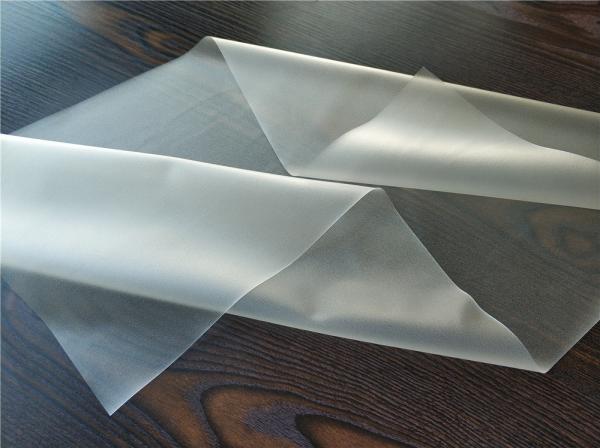

High safety clear PVB film for architectural glass

PVB middle film is translucent membrane, PVB film is mainly used for sandwich glass, is between the two pieces of glass clip into a layer of PVB film, after high-pressure composite, heating and special glass.PVB laminated glass with safety, heat preservation, noise control and isolation of multiple functions such as uv, widely used in construction, automotive industry, photovoltaic, etc.

Noise Control PVB Sheet For Laminated Glass Anti Peneration High Pressure Composite

Technical Data Sheet

Item Value
Density 1.05-1.07g/cm³
Thickness 0.38mm/0.76mm/1.14mm/1.52mm
Width 650mm-3450mm
Core ID 16 cm
Appearance Achromatic or light yellow clear film,smooth surface
without scratch or crease
Dotted Impurities andAir Bubbles ≥0.05mm² Allowed to scatter no more than 10 places per roll
≥0.55mm² Not to exceed 6-8 places per roll;making marks,Add an
extended 1 meter film per place
Length Tolerance +(0-2)mm
Width Tolerance +(10-20)mm
Tensile Strength ≥20Mpa
Water Cotent ≥0.05%
Haze <0.7(0.38*2)%
Shrinkage(60℃
/15min)		 ≤12%
Elongation at breat ≥200%

Packaging Details

Every layer of PVB film rolls is separated by PE film, vacuumed by aluminum foil and put into wooden cases. The finished qualified product is enclosed with the conformity certificate, packing list etc.

Noise Control PVB Sheet For Laminated Glass Anti Peneration High Pressure Composite
