High Tenacity PVB Film Used For Sandwich Safe Glass
High Tenacity PVB Film Used For Sandwich Safe Glass
Specifications
Brand Name :
ZHECHUN
Model Number :
CZ01
Place of Origin :
China
MOQ :
1 Roll
Payment Terms :
T/T, L/C
Supply Ability :
15,000,000 square meter per year
Delivery Time :
10 days after deposit
Packaging Details :
aluminum foil and wooden box
Material :
PVB
Haze :
0.6%
Light transmittance :
87%
Shringking :
8%
Roughness :
28-50 um
Elongation at peak :
200%
Tensile strength :
20MPa
use for :
safe glass
shipping from :
Shanghai, China
Description

OEM noise control Polyvinyl Butyral Film for laminated glass

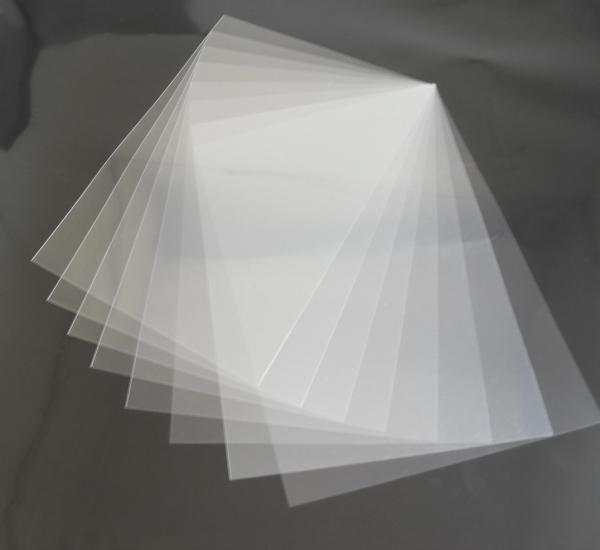

Polyvinyl Butyral Film (PVB film) is translucent membrane, PVB film is mainly used for sandwich glass, is between the two pieces of glass clip into a layer of PVB film, after high-pressure composite, heating and special glass.PVB laminated glass with safety, heat preservation, noise control and isolation of multiple functions such as uv, widely used in construction, automotive industry, photovoltaic, etc.

High Tenacity PVB Film Used For Sandwich Safe Glass

Technical Data Sheet

Item Value
Density 1.05-1.07g/cm³
Thickness 0.38mm/0.76mm/1.14mm/1.52mm
Width 650mm-3450mm
Core ID 16 cm
Appearance Achromatic or light yellow clear film,smooth surface
without scratch or crease
Dotted Impurities andAir Bubbles ≥0.05mm² Allowed to scatter no more than 10 places per roll
≥0.55mm² Not to exceed 6-8 places per roll;making marks,Add an
extended 1 meter film per place
Length Tolerance +(0-2)mm
Width Tolerance +(10-20)mm
Tensile Strength ≥20Mpa
Water Cotent ≥0.05%
Haze <0.7(0.38*2)%
Shrinkage(60℃
/15min)		 ≤12%
Elongation at breat ≥200%

High Tenacity PVB Film Used For Sandwich Safe Glass
