OEM All Thickness Colored Laminating Film Resists Penetration Smooth Surface
OEM All Thickness Colored Laminating Film Resists Penetration Smooth Surface
OEM All Thickness Colored Laminating Film Resists Penetration Smooth Surface
OEM All Thickness Colored Laminating Film Resists Penetration Smooth Surface
Specifications
Brand Name :
ZHECHUN
Model Number :
CZ01
Place of Origin :
China
MOQ :
1 Roll
Payment Terms :
T/T, L/C
Supply Ability :
15,000,000 square meter per year
Delivery Time :
10 days after deposit
Packaging Details :
aluminum foil and wooden box
Material :
Polyvinyl Butyral
Haze :
0.6%
Light transmittance :
87%
Shringking :
8%
Roughness :
28-50 um
Elongation at peak :
200%
Tensile strength :
20MPa
Purpose :
safe glass
Valid time :
15-20 year in diffrent place
Description

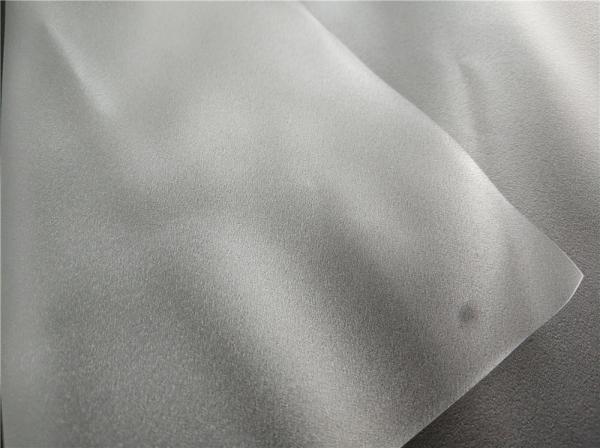

OEM all thickness polyvinyl butyral sheet for laminated glass

PVB Film is a macro molecule material made with Polyvinyl Butyral resin plasticized and extruded by plasticize and additives,and mainly used for producing laminated safety glass.

1. Automotive Grade PVB film/Interlayer:

Automotive Grade PVB film is the main material to produce windshield.

The Color can be Clear,F green,Green on Clear,Blue on Clear,Gray on Clear,Green on F green,Blue on F green,Gray,Gray Black and so on.

OEM All Thickness Colored Laminating Film Resists Penetration Smooth Surface

2. Architectural Grade PVB film/Interlayer:

Architectural Grade PVB film has wide range usage in the field of architectural glass,such as construction wall,cover grid,show wind,bank counter,screen of steel-smeding furnace and bulletproof glass and so on.

OEM All Thickness Colored Laminating Film Resists Penetration Smooth Surface

The Color can be Clear, Milky White,Gray,Red,Green,Yellow,Blue,Brown,Purple,Black, Porcelain White,F green and so on.

Product name polyvinyl butyral sheet (PVB film)
Raw material The resin
Thickness 0.38mm 0.76mm 1.14mm 1.52mm (±0.02mm)
Appearance Achromatic or light yellow clear film, smooth surface without scratch or crease
Dotted Impurities and Air Bubbles

>0.05mm²(Allowed to scatter no more than 10 places per roll)

>0.55mm²(Not to exceed 6-8 places per roll; Marking marks, add an extended 1 meter film per place
Uniformity

Lateral and longitudinal evenness degree shouldn’t exceed 15μm at a distance of 25mm

Lateral deviation should be less than 35μm, while longitudinal deviation should be less than 25μm
Length Tolerance(m) +(0-2)
Width Tolerance(mm) +(10-20)
Water Content (%) ≥0.05
Tensile Strength(Mpa) ≥20
Haze (%) <0.7(0.38*2)
Shrinkage(60℃/15min)(%) ≤12
Elongation at break(%) ≥200


Package Detail


1. Every PVB film insulated with PE film

2. PVB film roll is vacuumed foil bag.

3. Then packaged into plywood box or fiber can.
