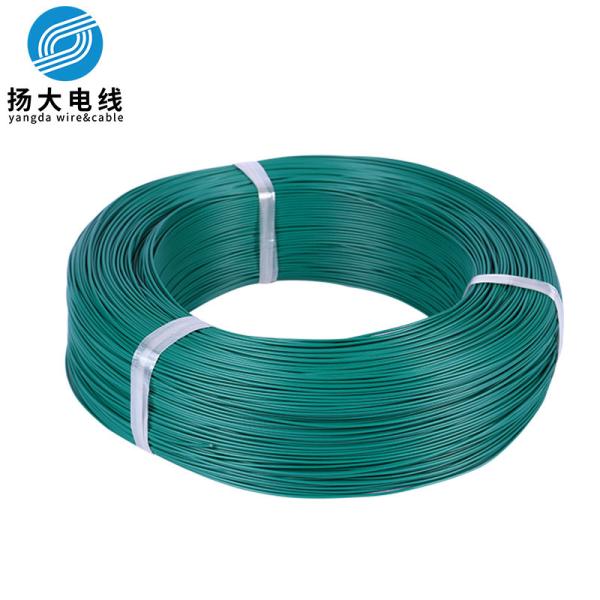

UL3302 Halogen Free Pvc Xlpe Cable Use For General Electric Equipment Internal Wiring
UL3302 Halogen Free Pvc Xlpe Cable Use For General Electric Equipment Internal Wiring
UL3302 Halogen Free Pvc Xlpe Cable Use For General Electric Equipment Internal Wiring
UL3302 Halogen Free Pvc Xlpe Cable Use For General Electric Equipment Internal Wiring
UL3302 Halogen Free Pvc Xlpe Cable Use For General Electric Equipment Internal Wiring
UL3302 Halogen Free Pvc Xlpe Cable Use For General Electric Equipment Internal Wiring
Specifications
Brand Name :
Yangda
Model Number :
UL3302
Certification :
UL
Place of Origin :
China
MOQ :
6100m
Price :
USD20/Roll
Payment Terms :
T/T
Supply Ability :
1000000m per day
Delivery Time :
10 work days
Packaging Details :
cartons
Material :
XLPE
Color :
Multi
Specification :
32AWG-16AWG
Description

UL3302 24awg high temperature electronic wire low smoke halogen-free XLPE wire

Our company is specialized in producing and selling various UL electronic wire, discharge wire, low smoke halogen free wire, wire, high temperature wire, silicon rubbe wire, terminal wire, connectors and special connection wire used for various electronic products.Our Main products include hook-up wire, silicone wire, wire, power cord, halogen-free wire, flat ribbon wire, spiral shield cable, Photovoltaic cable, irradiation wire.The quality of the products has passed UL international certification, CCC certification, CSA certification of Canada, European Union's latest environmental regulations REACH and ROHS eu environmental certification.

Product Description

1. Rated temperature:105ºC

2.Rated voltage:30v

3.according to:UL subject 758,UL1581

4.Solid or Stranded,tinned or bare copper conductor min 40AWG

5.XLPE insulation.

6.Passes UL VW-1 & CSA FT1 Vertical flame test

7.uniform insulation thickness of wire to ensure easy stripping and cutting

8.Environmental testing pass ROHS

9.Use for general electric equipment internal wiring

Product Parameters

UL TYPE CONDUCTOR INSULATION

Max cond

resistance

(Ω/kft,20℃,DC)

Standard

Pup-up

specification

(AWG)

CONDUCTOR

(No/mm)

Outside

diameter

(mm)

 thickness

outside

diameter

(mm)

 Ft/coil M/Coil
UL3302 30 7/0.10 0.3 0.23 0.8 116 2000 610
28 7/0.127 0.38 0.9 72.8
26 7/0.16 0.48 1 45.8
24 11/0.16 0.61 1.1 28.7
22 17/0.16 0.76 1.3 18.1
20 21/0.178 0.94 1.5 11.2
18 16/0.254 1.16 1.8 7.06
16 26/0.254 1.49 2.1 4.45
