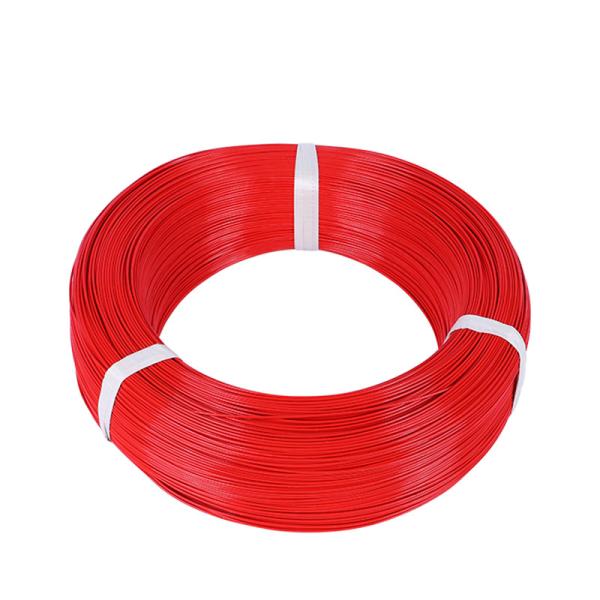

300V FEP Insulated Carbon Fiber Heating Wire For Home Appliances
300V FEP Insulated Carbon Fiber Heating Wire For Home Appliances
300V FEP Insulated Carbon Fiber Heating Wire For Home Appliances
300V FEP Insulated Carbon Fiber Heating Wire For Home Appliances
Specifications
Brand Name :
YANGDA
Model Number :
10064
Certification :
UL
Place of Origin :
CHINA
MOQ :
6100M
Price :
0.06USD PER METER
Payment Terms :
T/T
Supply Ability :
2000000 METERS PER MONTH
Delivery Time :
7DAYS
Packaging Details :
CARTON
MATERIAL :
FEP
SIZE :
360AWG-10AWG
RATED VOLTAGE :
300V
CONDUCTOR :
TINNED COPPER
COLOR :
RED,BLACK,ETC.
Insulation :
PVC Insulation Cable
Size :
all size available
Package :
Export package
Description

200 C Coated Carbon Fiber Heating Electric Wire FEP

Description

Rated temperature:125℃

Rated voltage:600V

Colors: white, blue, red, black, brown, yellow, green,transparent, yellow/green, etc...

Reference standard:UL758,UL1581,CSA C22.2No.210.2

Solid or stranded, tinned or bare copper conductor 32~10AWG

FEP insulation, comply with ROHS, REACH environmental standard

Passes UL VW-1 and JQA F-Mark flame test

Uniform insulation thickness to ensure easy stripping and cutting

NAME/DESCRIPTION 200 C coated carbon fiber heating electric wire
TYPE High temperature wire
Conductor carbon fiber
Insulation Extruded FEP PFA
Rated Temperature 200℃
Rated voltage 300V
Test VW-1 Horizontal flame Test
Certificate ROHS
Color White, blue, red, black,yellow,green, transparent,yellow-green
Application

Home appliance, lightning lamps, small motors, temperature

sensors elec tromagnetic coils,

automotive interior cables,electronic appliance and etc.
Packing Rolls or as customer's requirement
MOQ 5000M each size for carbon fiber cable
Delivery time 20 days for carbon fiber cable

Application:

For insulated wires in internal or external interconnection cables for use in Class 2 circuits of electronic equipment

Shipment
1.For sample and small order,we recommend use the courier,like TNT,DHL EMS FedEx etc
2.For bulk orders,you can choice by sea or by air

Product features

Has excellent resistance to high temperature, low temperature resistance, excellent electrical insulation performance,

high voltage resistance, aging resistance, long service life and soft and easy to install.


Applications

* Widely used in lighting, household appliances, lamps.
* electric appliances, instrumentation, motor wiring and electronics.
* gas appliances and other high-temperature environment.

UL Style& CulType Conductor Insulation Thickness Overall Diameter StandardPut-up Conductor Resistance at 20℃
AWG No/mm mm mm Ft/coil M/Coil Ω/KM
UL10064 CUL AWM I A/B(Stranded) 36 1/0.127 0.14 0.41 4000 1220 1480
7/0.05 0.14 0.45
34 1/0.16 0.14 0.45 4000 1220 1080
7/0.06 0.14 0.48
32 1/0.20 0.14 0.48 4000 1220 588
7/0.08 0.14 0.55
30 1/0.254 0.14 0.55 4000 1220 381
7/0.10 0.14 0.6
28 1/0.32 0.14 0.6 2000 610 239
7/0.127 0.14 0.7
26 1/0.404 0.14 0.7 2000 610 150
7/0.16 0.14 0.8
19/0.10 0.14 0.8
24 1/0.50 0.14 0.8 2000 610 94.2
7/0.20 0.14 0.9
19/0.12 0.14 0.9
22 1/0.643 0.14 0.9 2000 610 59.4
7/0.254 0.14 1.05
19/0.15 0.14 1.05
20 1/0.813 0.14 1.1 2000 610 36.7
7/0.32 0.14 1.3
19/0.19 0.14 1.3
18 1/1.02 0.21 1.5 2000 610 23.2
7/0.39 0.21 1.6
19/0.235 0.21 1.6
16 1/1.32 0.21 1.8 2000 610 14.6
7/0.49 0.21 1.9
19/0.30 0.21 1.95
14 19/0.37 0.33 2.51 1000 305 8.96
12 19/0.47 0.33 3.11 1000 305 5.64
10 19/0.61 0.33 3.71 1000 305 3.55
