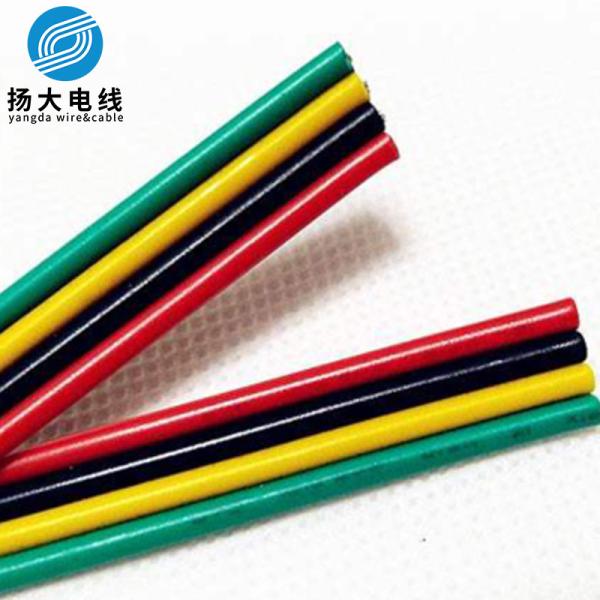

Ul1015 Ribbon Flat Cable , Round Ribbon Cable High Temperature Resistance
Ul1015 Ribbon Flat Cable , Round Ribbon Cable High Temperature Resistance
Ul1015 Ribbon Flat Cable , Round Ribbon Cable High Temperature Resistance
Ul1015 Ribbon Flat Cable , Round Ribbon Cable High Temperature Resistance
Ul1015 Ribbon Flat Cable , Round Ribbon Cable High Temperature Resistance
Ul1015 Ribbon Flat Cable , Round Ribbon Cable High Temperature Resistance
Specifications
Brand Name :
YANGDA
Model Number :
1569
Certification :
UL
Place of Origin :
CHINA
MOQ :
6100 m
Price :
0.11 usd per meter
Payment Terms :
T/T
Supply Ability :
1000000 per week
Delivery Time :
5-8days
Packaging Details :
rolls in carton
Material :
PVC
Color :
Gary and red,etc.
specification :
28,24,22
Pitch :
1.0,1.27,2.0,2.54
rating :
300V
Standard :
UL758
Description

High Temperature Resistance Reach Standard Ribbon Cable Ul1015 Pvc Insulation Tinned Copper Flexible Flat Ribbon Cable

PRODUCTS DESCRIPTION:

1. Rated temperature:80 ℃

2. Rated voltage:300V

3. According to:UL subject 758,UL 1581

4. Solid or Steanded,tinned or bare copper conductor 32-16AWG

5. PVC insulation

6. Passes UL VW-1 & CSA FT1 Vertical flame test

7. Uniform insulation thickness of wire to ensure easy stripping and cutting

8. Environmental testing pass RoHS, REACH

9. Internal wiring of appliances or electronic equipment

UL Style & CSA Type Cores Conductor Number of Conductor Pitch Insulation Thickness Overall Diameter Conductor
Resistance at 20℃
NO AWG mm mm mm Ω/KM
UL2468
(Stranded)		 2 24 1/0.20or11/0.16 1.50 0.45 1.4×3.00 94.20
24 7/0.20 2.54 0.45 1.5×5.08 94.20
3 24 1/0.20or11/0.16 1.50 0.45 1.4×4.50 94.20
24 7/0.20 2.54 0.45 1.5×7.62 94.20
4 24 1/0.20or11/0.16 1.50 0.45 1.4×6.00 94.20
24 7/0.20 2.54 0.45 1.5×10.16 94.20
5 24 1/0.20or11/0.16 1.50 0.45 1.4×7.50 94.20
24 7/0.20 2.54 0.45 1.5×12.70 94.20
6 24 1/0.20or11/0.16 1.50 0.45 1.4×9.00 94.20
24 7/0.20 2.54 0.45 1.5×15.24 94.20
7 24 1/0.20or11/0.16 1.50 0.45 1.4×10.05 94.20
24 7/0.20 2.54 0.45 1.5×17.78 94.20
8 24 1/0.20or11/0.16 1.50 0.45 1.4×12.00 94.20
24 7/0.20 2.54 0.45 1.5×20.32 94.20
9 24 1/0.20or11/0.16 1.50 0.45 1.4×13.50 94.20
24 7/0.20 2.54 0.45 1.5×22.86 94.20
10 24 1/0.20or11/0.16 1.50 0.45 1.4×15.00 94.20
24 7/0.20 2.54 0.45 1.5×25.40 94.20
11 24 1/0.20or11/0.16 1.50 0.45 1.4×15.40 94.20
24 7/0.20 2.54 0.45 1.5×27.94 94.20
12 24 1/0.20or11/0.16 1.50 0.45 1.4×18.00 94.20
24 7/0.20 2.54 0.45 1.4×30.48 94.20
13 24 7/0.20 1.50 0.45 1.5×19.50 94.20
14 24 7/0.20 1.50 0.45 1.5×21.00 94.20
15 24 7/0.20 1.50 0.45 1.5×19.50 94.20
UL Style & CSA Type Cores Conductor Number of Conductor Pitch Insulation Thickness Overall Diameter Conductor
Resistance at 20℃
NO AWG mm mm mm Ω/KM
UL2468
(Stranded)		 2 26 7/0.16 1.5or1.40 0.45 1.4×2.9/2.8 150.00
26 7/0.16 2.00 0.45 1.4×3.4 150.00
26 7/0.16 2.54 0.45 1.4×3.9 150.00
3 26 7/0.16 1.5or1.40 0.45 1.4×4.4/4.2 150.00
26 7/0.16 2.00 0.45 1.4×5.4 150.00
26 7/0.16 2.54 0.45 1.4×6.4 150.00
4 26 7/0.16 1.5or1.40 0.45 1.4×5.9/5.0 150.00
26 7/0.16 2.00 0.45 1.4×7.4 150.00
26 7/0.16 2.54 0.45 1.4×8.9 150.00
5 26 7/0.16 1.5or1.40 0.45 1.4×7.4/7.0 150.00
26 7/0.16 2.00 0.45 1.4×9.4 150.00
26 7/0.16 2.54 0.45 1.4×11.4 150.00
6 26 7/0.16 1.5or1.40 0.45 1.4×8.9/8.4 150.00
26 7/0.16 2.00 0.45 1.4×11.4 150.00
26 7/0.16 2.54 0.45 1.4×13.9 150.00
7 26 7/0.16 1.5or1.40 0.45 1.4×10.4/9.8 150.00
26 7/0.16 2.00 0.45 1.4×13.4 150.00
26 7/0.16 2.54 0.45 1.4×16.4 150.00
8 26 7/0.16 1.5or1.40 0.45 1.4×11.9/11.2 150.00
26 7/0.16 2.00 0.45 1.4×15.4 150.00
26 7/0.16 2.54 0.45 1.4×18.9 150.00
9 26 7/0.16 1.5or1.40 0.45 1.4×13.4/12.6 150.00
26 7/0.16 2.00 0.45 1.4×17.4 150.00
26 7/0.16 2.54 0.45 1.4×21.4 150.00
10 26 7/0.16 1.5or1.40 0.45 1.4×14.9/14 150.00
26 7/0.16 2.00 0.45 1.4×19.4 150.00
26 7/0.16 2.54 0.45 1.4×23.9 150.00
11 26 7/0.16 1.5or1.40 0.45 1.4×16.4/15.4 150.00
26 7/0.16 2.00 0.45 1.4×21.4 150.00
26 7/0.16 2.54 0.45 1.4×26.4 150.00
12 26 7/0.16 1.5or1.40 0.45 1.4×17.9/16.8 150.00
26 7/0.16 2.00 0.45 1.4×23.4 150.00
26 7/0.16 2.54 0.45 1.4×28.9 150.00
13 26 7/0.16 1.5or1.40 0.45 1.4×19.4/18.2 150.00
26 7/0.16 2.00 0.45 1.4×25.4 150.00
26 7/0.16 2.54 0.45 1.4×31.4 150.00
14 26 7/0.16 1.5or1.40 0.45 1.4×20.9/19.6 150.00
26 7/0.16 2.00 0.45 1.4×27.4 150.00
26 7/0.16 2.54 0.45 1.4×33.9 150.00
15 26 7/0.16 1.5or1.40 0.45 1.4×22.4/21.0 150.00
26 7/0.16 2.00 0.45 1.4×29.4 150.00
26 7/0.16 2.54 0.45 1.4×36.4 150.00
