Flexible Multi Core PUR Cable Xl-Pe Insulation Customized Length
Flexible Multi Core PUR Cable Xl-Pe Insulation Customized Length
Flexible Multi Core PUR Cable Xl-Pe Insulation Customized Length
Flexible Multi Core PUR Cable Xl-Pe Insulation Customized Length
Flexible Multi Core PUR Cable Xl-Pe Insulation Customized Length
Flexible Multi Core PUR Cable Xl-Pe Insulation Customized Length
Specifications
Brand Name :
YANGDA
Model Number :
20866
Certification :
UL
Place of Origin :
CHINA
MOQ :
6100m
Price :
0.44 usd per meter
Payment Terms :
T/T
Supply Ability :
1000000 per week
Delivery Time :
12 days
Packaging Details :
rolls in carton
Material :
MPPE
color :
customized
flame :
ft2
standard :
ul758,ul1581
Color :
Blue,Transparent,black,clear,can be customized
Type :
Stretch Film,Shrink Film,Barrier Film,drain pipe,Metallized Film
Thickness :
15mic-50mic,10~40MIC,0.6mil--20mil,30mic-200mic,5-200mm
Usage :
Packaging Film,Carpet Protection,Package/Protection,Food&Medicine Film,Cling Film
Processing type :
Blow Molding,Casting,Multiple Extrusion
Hardness :
Soft
Feature :
Moisture Proof,strong tensiling,Flame retardant,resistancing
Length :
20M-5000M,20-200m,Customize
Application :
cheese,forklift/motorcycle/home,fish,paultry,seperator
Product name :
Factory price polyethylene wrapping of Pallet Shrink Wrap,PP,HDPE pipe,23 micron strech film for pallet shrink wrap film
Specification :
16mm~1600mm,20mm-1400mm,20 to 2000 mm,6-90mm,40mm
Plastic modling type :
Injection,Extruding,Rotational molding
Packing :
Carton Box,cartons and on the pallet
Description

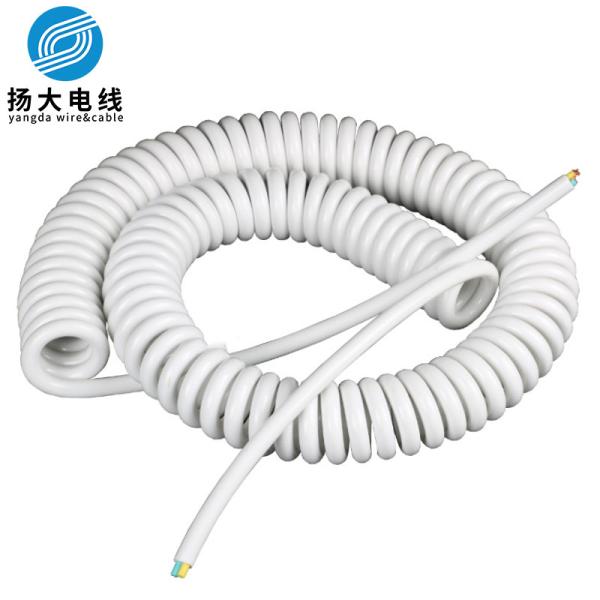

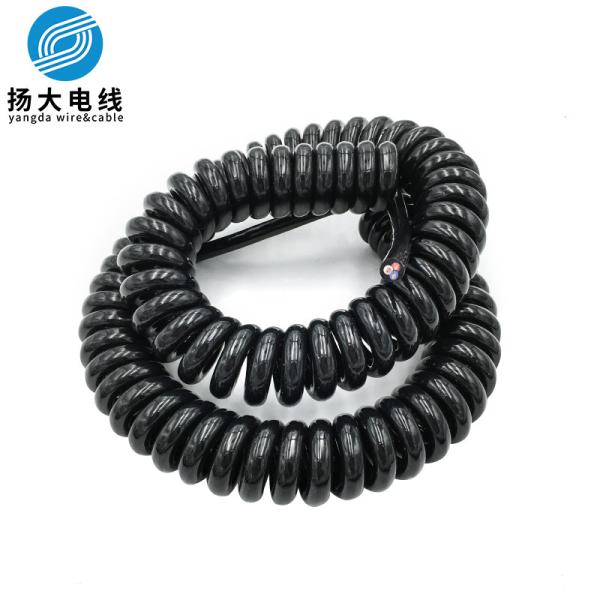

High Flexible Wire Cable Ul 20866 Pp Pvc Xl-Pe Insulated Tpu Jacket Multi-Core Spiral Shield Power Cable

Product Description:

1.Tinned,annealed,stranded or solid copper conductor.

2.PVC/SR-PVC/PP/TPU/XL-PE insulation.

3.TPU jacketed.

4.Rated temperature:80°C.Rated voltage:300volts

5.Uniform thickness of wire to ensure easy stripping and cutting.

6.Passes UL VW-1&CUL FT1/FT2 vertical flamt test.

7.Tinned or bare copper winding or woven isolation.

8.A collection of cores can be isolated tissue-paper package.aluminum foil or mylar.

9.Executed standard:UL758 UL1581 CSA22.2.

Applications:

1) For general purpose internal wiring of electronic and electrical equipment.

UL Style &CSA Type Conductor Cores Conductor Insulation Thickness Nom.Dia Jacket Thickness Overall Dimeter Conductor Resistance at 20°C
AWG No/mm mm mm mm mm Ω/KM
UL20866 (Stranded) 2C 30 7/0.100 0.25 0.8 0.8 3.3 381
28 7/0.127 0.9 3.5 239
26 7/0.160 1 3.8 150
24 11/0.160 1.1 4.1 94.2
22 17/0.160 1.3 4.5 59.4
20 21/0.178 1.5 4.9 36.7
18 34/0.178 1.8 5.5 23.2
3C 30 7/0.100 0.25 0.8 0.8 3.6 381
28 7/0.127 0.9 3.9 239
26 7/0.160 1 4.1 150
24 11/0.160 1.1 4.4 94.2
22 17/0.160 1.3 4.7 59.4
20 21/0.178 1.5 5.2 36.7
18 34/0.178 1.8 5.9 23.2
4C 30 7/0.100 0.25 0.8 1 3.8 381
28 7/0.127 0.9 4.1 239
26 7/0.160 1 4.3 150
24 11/0.160 1.1 4.6 94.2
22 17/0.160 1.3 5 59.4
20 21/0.178 1.5 5.6 36.7
18 34/0.178 1.8 6.3 23.2
5C 30 7/0.100 0.25 0.8 1 4.1 381
28 7/0.127 0.9 4.4 239
26 7/0.160 1 4.7 150
24 11/0.160 1.1 4.9 94.2
22 17/0.160 1.3 5.5 59.4
20 21/0.178 1.5 6.2 36.7
18 34/0.178 1.8 6.9 23.2
6C 30 7/0.100 0.25 0.8 1 4.4 381
28 7/0.127 0.9 4.8 239
26 7/0.160 1 5.1 150
24 11/0.160 1.1 5.5 94.2
22 17/0.160 1.3 5.9 59.4
20 21/0.178 1.5 6.5 36.7
18 34/0.178 1.8 7.4 23.2
